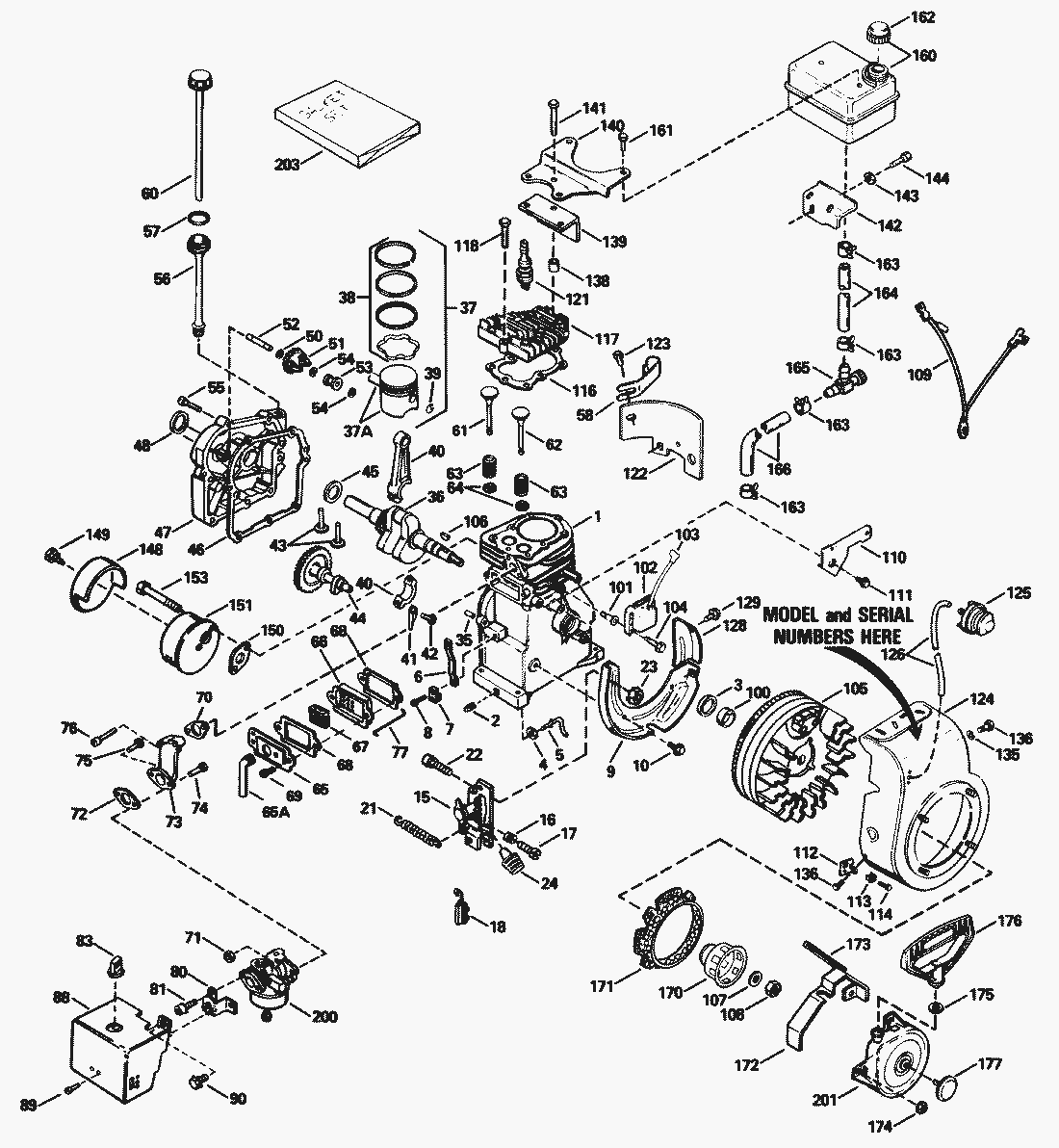

| pos. | decription | spare part number | |
| 2 | Plug, Sq. Hd. Pipe, 1/4-18 (Oil Drain) | 27642 |
| 3 | Seal, Oil | 32600 |
| 4 | Washer, Flat | 28277 |
| 5 | Rod, Governor | 31334 |
| 6 | Lever, Governor | 31510 |
| 7 | Clamp, Governor Lever | 31335 |
| 8 | Screw, Hex Washer Hd. | 650548 |
| 9 | Baffle-Blower Housing | 33342 |
| 10 | Screw, Hex Washer Hd. | 650561 |
| 16 | Spring, Compression | 31342 |
| 17 | Screw, Fil. Hd. | 650549 |
| 18 | Terminal Assy. | 610973 |
| 21 | Spring, Extension | 31426 |
| 22 | Screw-Fil. Hd. | 650139 |
| 23 | Locknut, Hex | 30322 |
| 24 | Knob-Control | 35440 |
| 35 | Pin, Dowel | 26727 |
| 36 | Crankshaft | 34734A |
| 37 | Piston, Pin & Ring Assy. (Std.) (Incl. | 34514 |
| 38 | Ring Set, Piston (Std.) | 28986 |
| 38 | Ring set, Piston (.010 oversize) | 28987 |
| 38 | Ring Set, Piston (.020 oversize) | 28988 |
| 39 | Ring, Piston Pin Retaining | 20381 |
| 41 | Dipper-Oil | 32654 |
| 42 | Bolt, Connecting Rod | 32610A |
| 43 | Lifter, Valve | 27241 |
| 44 | Camshaft (Compression Release) | 33149A |
| 45 | Washer-Thrust | 32323 |
| 46 | Gasket-Cylinder Cover | 27677 |
| 48 | Seal-Oil | 27897 |
| 50 | Washer, Flat | 30590A |
| 51 | | 30591 |
| 52 | Shaft, Mechanical Governor | 30574 |
| 53 | Spool, Governor | 30588A |
| 54 | Ring, Retaining | 29193 |
| 55 | Screw, Hex Hd. | 650488 |
| 56 | Tube Assy.-Oil Fill | 35554 |
| 57 | O Ring | 35499 |
| 58 | Clip-Oil Fill | 35539 |
| 60 | Dipstick | 35556 |
| 61 | | 29313C |
| 62 | | 29314B |
| 63 | Spring, Valve | 31672 |
| 64 | Cap, Lower Valve Spring | 31673 |
| 65 | Cover-Valve Spring | 34146 |
| 65 | Tube-Breather | 35350 |
| 66 | Breather Assembly | 27666 |
| 67 | Element, Breather | 31410 |
| 68 | Gasket-Valve Cover | 27234 |
| 69 | Screw, Fil. Hd. | 650128 |
| 70 | Gasket-Intake | 26754 |
| 71 | Nut & Lockwasher | 29752 |
| 72 | Gasket-Carburetor | 26756 |
| 74 | Screw-Hex Hd. | 6201 |
| 75 | Screw, Fil. Hd. | 650840 |
| 76 | Screw, Fil. Hd. | 650664 |
| 77 | Link, Governor-to-throttle | 31858 |
| 80 | Bracket, Choke | 32398 |
| 81 | Screw, Fil. Hd. | 28820 |
| 83 | Knob-Control | 35439 |
| 88 | Cover-Carburetor | 35122 |
| 89 | Screw, Pan Hd. | 650257 |
| 90 | Screw, Hex Washer Hd., Self drilling | 650765 |
| 100 | Spacer-Flywheel Key | 34080 |
| 101 | Stud, Lamination Mounting | 650872 |
| 102 | | 34443A |
| 103 | Cover, Spark Plug | 610118 |
| 104 | Screw, Hex Hd. | 650814 |
| 105 | Flywheel | 611081 |
| 106 | Key, Flywheel | 610961 |
| 107 | Washer, Belleville | 650815 |
| 108 | Nut, Flywheel | 650863 |
| 109 | Wire-Ground | 35557 |
| 110 | Bracket, Hold Down | 34212 |
| 111 | Screw, Hex Washer Hd. Self-tap. | 30200 |
| 112 | Bracket, Grommet Mounting | 34126 |
| 113 | Grommet, Plastic | 28545 |
