> Roth / TORO > Hand operated > Snowthrower > Two stage > 3521 > 621/38035 > 8000001 > Light Kit No. 54-9821 (Optional)

Spare Parts Lists for Toro Roth / TORO Light Kit No. 54-9821 (Optional)




pos.decriptionspare part number
2210-268

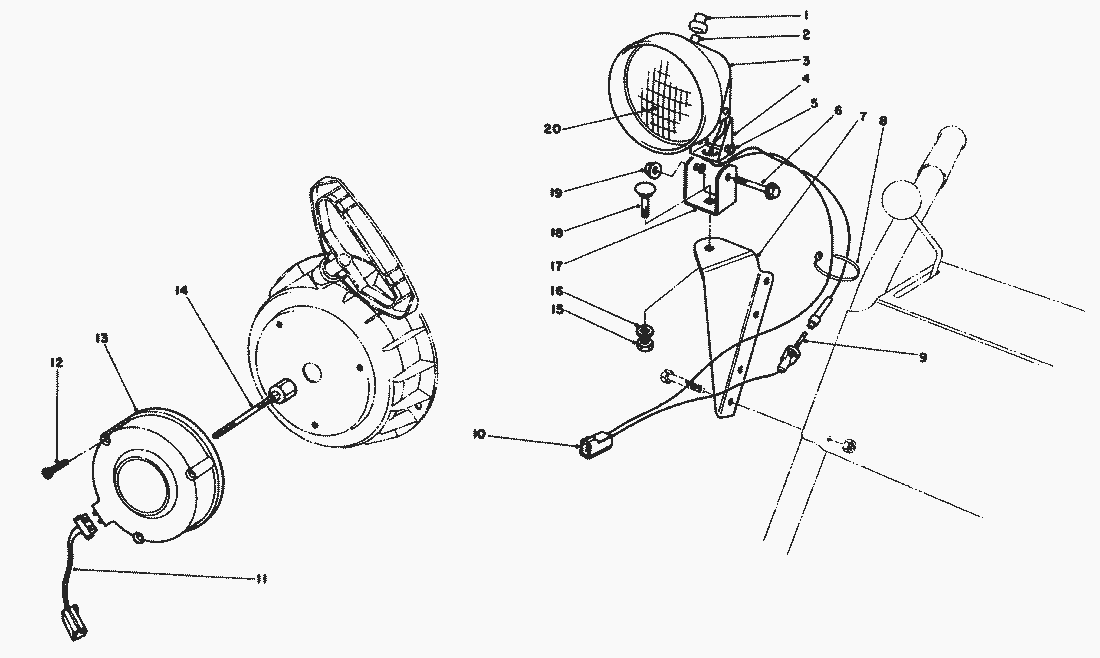

spare parts list


pos.decriptionspare part number
1Boot-Switch218473
2Switch Assembly218-553
3Bucket-Headlamp218-552
4Bracket218-554
5Lockwasher3255-8
6Screw-Hex. Flange Hd.322-13
7Mount-Lamp54-9830
8Tie Wrap3290-378
9
10Wire Assembly218-555
11Connector-Light2210-272
12Screw-Self Tapping2210-273
13Alternator2210-274
15Nut-Hex3217-7
16Washer-Lock3253-21
17Bracket-U218-556
18Bolt-Carriage3231-2
19Nut-Flange Lock32128-35
20Lens-Sealed Beam218-16
Headlamp Assembly Complete (Incl. Ref.54-9871
