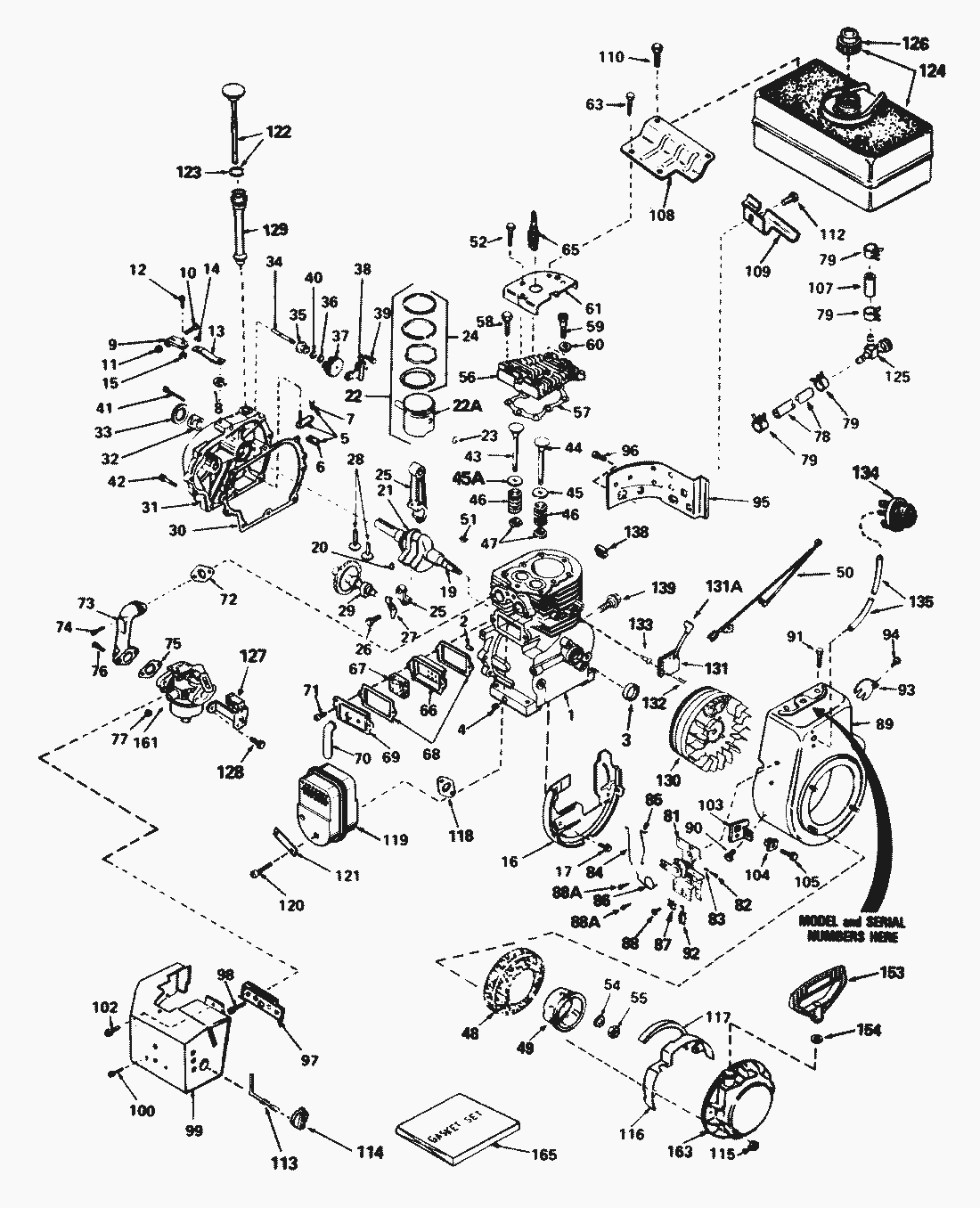

| pos. | decription | spare part number | |
| 76 | Screw, Fil. Hd. | 30088A |
| 77 | Nut & Lockwasher | 29752 |
| 78 | Line, Fuel | 30705 |
| 79 | Clamp, Fuel Line | 26460 |
| 81 | Control Assy., Speed (Incl. Ref. | 34664 |
| 82 | Screw, Fil. Hd. | 650549 |
| 83 | Spring, Compression | 31342 |
| 84 | Link, Governor | 34667 |
| 85 | Link, Governor Lever-to-Throttle | 33878 |
| 86 | Spring, Speed Control | 34663 |
| 87 | Clip, Conduit | 27793 |
| 88 | Screw, Hex Washer Hd. | 28942 |
| 88 | Screw, Hex Washer Hd. Thread Cutting | 650821 |
| 89 | Housing, Blower | 34822A |
| 90 | Screw, Phil. Hex Hd. | 29747B |
| 91 | Screw, Hex Hd. Spinlock Thread Forming | 650788 |
| 92 | Terminal Assy. | 610973 |
| 93 | Cover, Starter Bubble | 33013 |
| 94 | Screw, Pan Hd. Taptite | 650760 |
| 95 | Extension, Blower Housing | 33273A |
| 96 | Screw, Fil. Hd. | 650128 |
| 97 | Bracket, Carburetor Cover Mounting | 33377 |
| 98 | Screw, Hex Washer Hd., Taptite | 650767 |
| 99 | Cover, Carburetor | 35057 |
| 100 | Screw, Hex Washer Hd. | 28942 |
| 102 | Screw, Hex Washer Hd., Self drilling | 650765 |
| 103 | Bracket, Grommet Mounting | 34126 |
| 104 | Grommet, Plastic | 28545 |
| 105 | Screw, Pan Hd. Self-tap. | 650643 |
| 107 | Line, Fuel | 29774 |
| 108 | Plate, Fuel Tank Mounting | 34154 |
| 109 | Bracket, Fuel Tank Mounting | 34155 |
| 110 | Screw, Hex Washer Hd., Self-tap | 650665 |
| 112 | Screw, Hex Washer Hd. | 650561 |
| 113 | Rod, Choke | 34586 |
| 114 | Knob, Control | 34585 |
| 115 | Nut & Lockwasher | 29752 |
| 116 | Guard, Starter | 34141 |
| 117 | Seal, Snow Guard | 32576 |
| 118 | Gasket, Exhaust | *27930 |
| 119 | Muffler | 35056 |
| 120 | Screw, Hex Hd. | 792093 |
| 121 | Plate, Muffler Locking | 31588 |
| 123 | O Ring | 33590 |
| 124 | Tank Assy., Fuel (Incl. Ref. | 34156 |
| 125 | Valve, Fuel Shut-off | 32961 |
| 126 | Cap, Fuel Tank | 34210 |
| 127 | Bracket, Choke | 34587 |
| 128 | Screw, Fil. Hd. | 28820 |
| 129 | Tube, Oil Fill | 33893A |
| 130 | Flywheel | 611091 |
| 131 | Solid State Assy. | 35135 |
| 131 | Cover, Spark Plug | 610118 |
| 132 | Screw, Hex Hd. | 650814 |
| 133 | Stud, Lamination Mounting | 650872 |
| 134 | Primer Assy. | 34814 |
| 135 | Line-Primer | 32180C |
| 138 | Clip, Spring | 29443 |
| 139 | Screw, Hex Hd. Shoulder | 650820 |
| 153 | Handle-Mitten Grip Starter | 590574 |
| 154 | Washer | 27261 |
| 161 | Carburetor (Incl. Ref. | 632334 |
| 163 | Starter, Rewind | 590606 |
| 165 | Gasket Set | 33279D |
