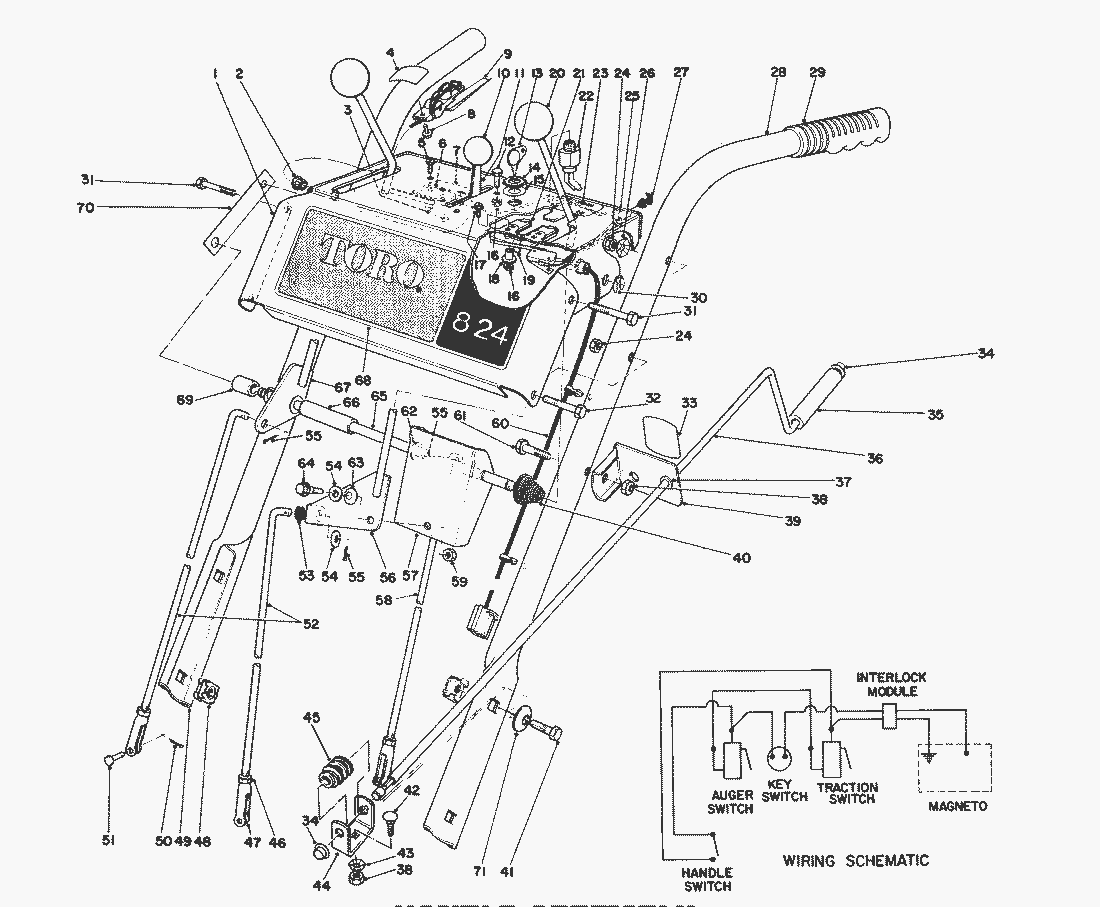

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
	Key Switch	40-8240
	Bracket Chute Control Mounting (Incl. Ref. 4 & 37)	6-3069

pos.	decription	spare part number
1	Escutcheon Plate	40-8470
2	Snap Bushing	237-130
3	Speed Nut	3290-354
4	Decal Safety Interlock	29-6360
5	Machine Screw	3290-313
6	Micro Switch	40-8200
7	Pad Switch Mounting	22-7950
8	Hex Washer Hd. Thread Forming Screw	12-3270
9	Interlock Handle & Switch	40-9690
10	Knob	233-36
11	Throttle Control	40-8480
12	Hex Sems Screw	32140-99
13	Keys	33-2010
14	Hex Nut	218-461
15	Lockwasher	3254-5
16	Nut	3296-2
17	Screw-Machine	3251-4
18	Spacer-Interlock	22-9740
19	Spring-Interlock	22-9730
20	Knob	233-21
21	Slide-Interlock	22-9750
23	Decal-Instructions	29-6340
24	Lock Nut	32152-4
25	Clamp Wire	43-7450
26	Washer Pyramidal	3290-257
27	Mounting Stud	43-7460
28	Handle Left	25-6040
29	Handle Grip	6-0450
30	Klip Ring	32151-43
31	Capscrew	321-11
32	Hex. Hd. Capscrew	321-9
33	Decal Chute Direction	29-6370
34	Push-On Speed Nut	3290-320
35	Chute Control Grip	40-8230
36	Rod-Chute Control	40-8380
37	Nyliner	256-249
38	MUTTER	3296-29
40	Spring Conical	17-5630
41	Hex Screw	323-4
42	Carriage Bolt	3230-2
43	Pyramidal Washer	3290-238
44	Bracket-Chute Worm	40-8280
45	Worm Gear	40-8250
