Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CCR 2400
>
640/38417
>
8900001
>

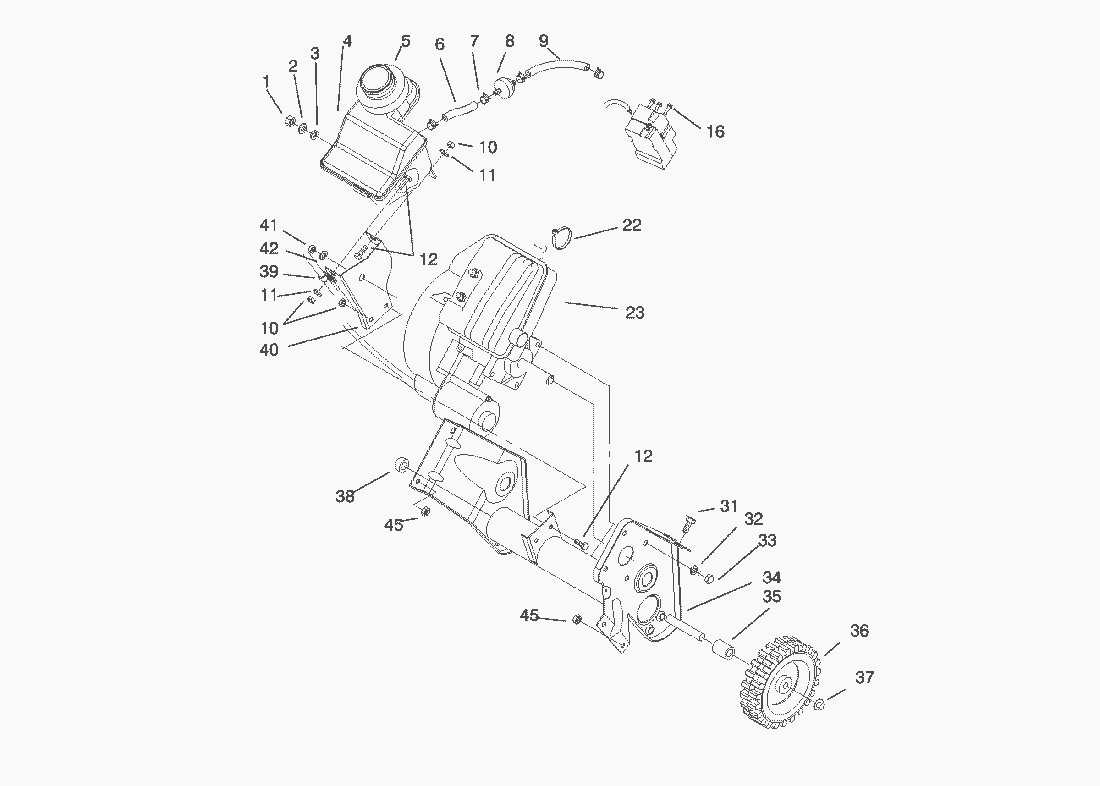

Engine & Fuel Tank Assy.
Spare Parts Lists for Toro Roth / TORO Engine & Fuel Tank Assy.
pos.
decription
spare part number
1
Nut-Lock
32152-8
2
Washer
3256-23
3
Rubber Grommet
237-89
4
94-9920
5
Seal-Tank
55-9310
6
Hose-Fuel
49-2482
7
Clamp-Hose
2412-98
8
BENZINVORFILTER
56-6360
9
Hose-Gas
94-9932
10
MUTTER
3296-42
11
Washer
3256-22
12
Capscrew
321-4
16
Thread Forming Screw
32144-27
22
Cable Tie
250-4
23
31
Capscrew
322-3
32
Washer-Belleville
3290-456
33
Capscrew
322-3
34
Frame
95-1892
35
Spacer-Wheel
66-6501
36
Wheel
66-6510
37
Pushnut
32112-14
38
Spacer-Wheel
66-6500
39
Clamp-Cable (Model No. 38175 Only)
2412-91
40
Support-Recoil
94-9918
41
Locknut
3296-16
42
Washer-Engine Support
71-5320
45
MUTTER
3296-29
