Starter

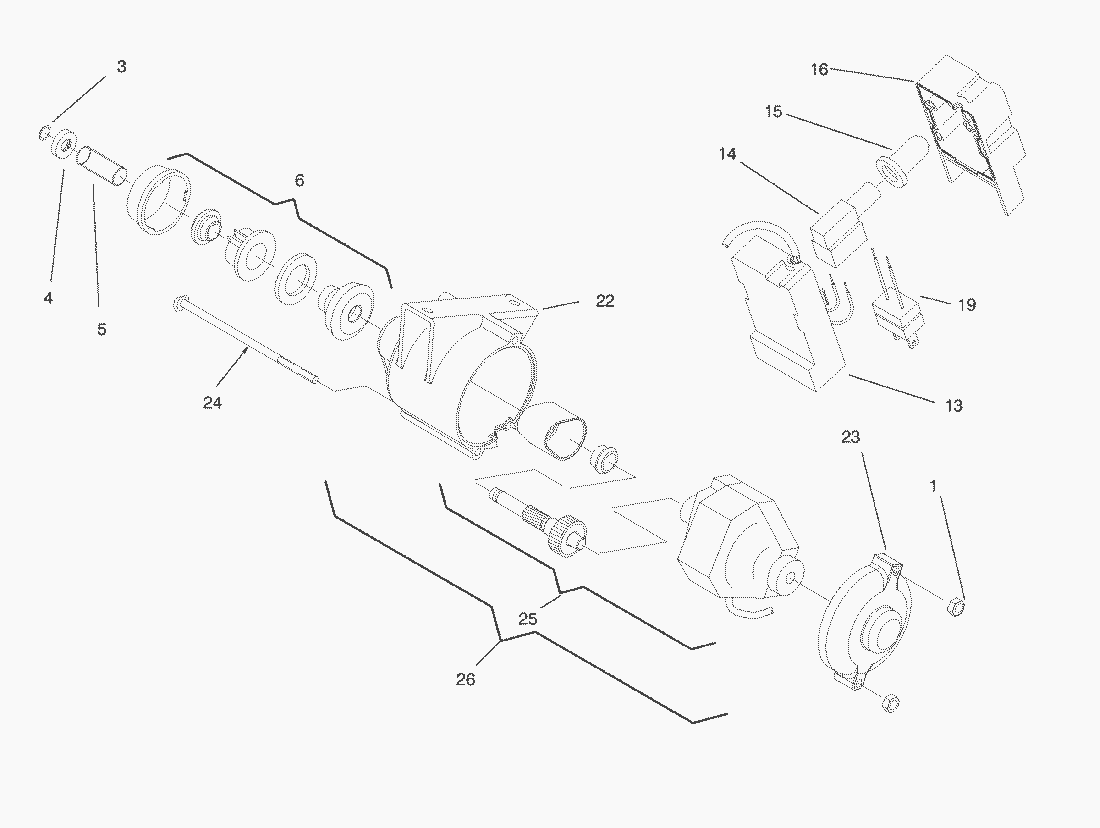

Spare Parts Lists for Toro Roth / TORO Starter
pos.
decription
spare part number
1
Nut
3296-2
3
Retaining Ring
61-4680
4
Pinion Stop
61-4670
5
Spring
61-4690
6
Pinion Assembly
61-4700
13
Base-Switch Housing
80-3730
14
Starter Switch
61-4820
15
Boot-Switch
61-4810
16
Cap-Switch Housing
80-3740
19
Plug-Power
94-9933
22
Housing-Mtg
95-1795
23
Housing Motor
95-1796
24
Screw-PPH
95-6354
25
Starter Motor ASM
95-7639
26
Housing ASM
95-7638
Cord-7 Ft.
28-9170
