> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2400 > 640/38417 > 8900001 > Shroud Assy.

Spare Parts Lists for Toro Roth / TORO Shroud Assy.

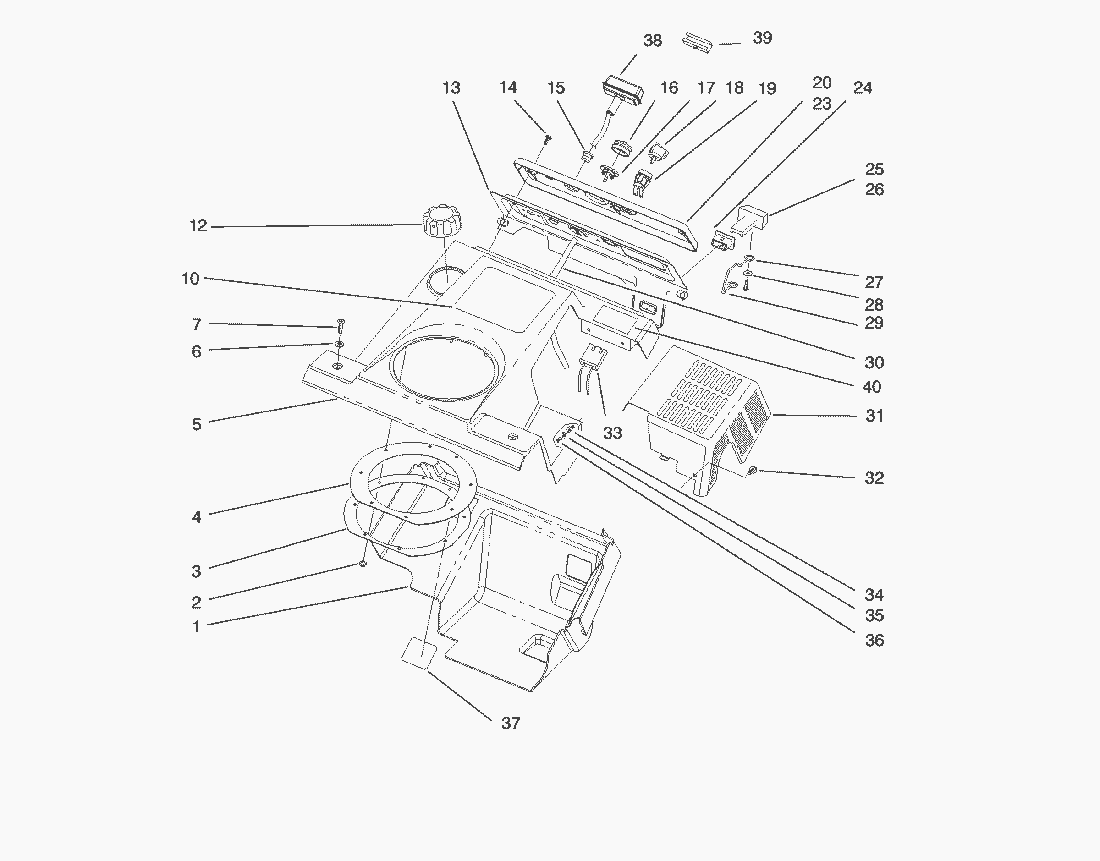

spare parts list


pos.decriptionspare part number
1Shroud-Lower94-9919
2Pushnut3290-474
3Retainer-Chute Seal55-9540-01
4Seal-Chute55-9260
5Shroud-Upper94-9925
6Washer3256-22
7Screw-Phillips3250-32
10Decal-CCR2400e98-1356
12Gas Cap Assembly55-3573
13Wa-Panel55-9490-01
14Screw-Self Tapping32144-112
15Guide-Starter Rope55-9410
16Bulb-Primer66-7460
17Body-Primer44-2750
18Key-Ignition63-8360
19Switch40-5940
20Name Plate Control (Model No. 38186)94-2569
23Name Plate Control (Model No. 38185)61-4410
24Fitting-Choke Control55-8820
25Control-Choke (Model No. 38180C)55-8811
26Control-Choke (Model No. 38180)55-8810
27Washer3256-49
28Screw-Pan Hd.32144-111
29Linkage-Choke95-7439
30Hose-Primer98-1372
31Heat Shield Wa94-9924-01
32Screw-Hex. Hd.32105-8
33Connector Body218-532
34Washer-Rubber55-9660
35Washer3256-14
36Locknut3296-12
37Decal-Warning (Model No. 38185C)61-4790
38Handle-Starter612825
39Clip-Rope612824
40R-Tek Decal98-1373
