Spare Parts Lists for Toro Roth / TORO Engine & Main Frame Assy.




pos.decriptionspare part number
13-2459

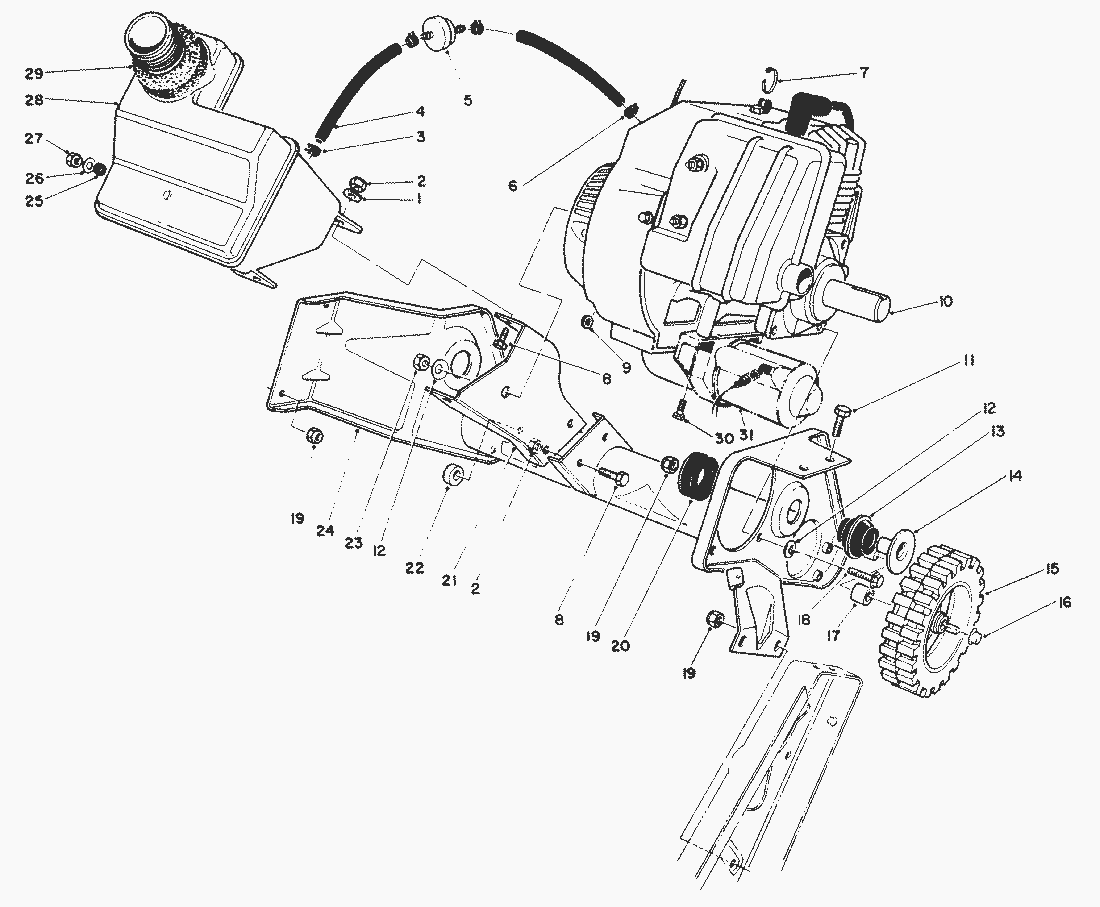

spare parts list


pos.decriptionspare part number
1Washer3256-22
2MUTTER3296-42
3Clamp2412-86
4Line-Fuel49-2481
5BENZINVORFILTER56-6360
6Clamp-Fuel Line2412-80
7Cable Tie250-4
8Capscrew321-4
9Spacer55-9620
10Engine Assembly62-6721
11Capscrew322-3
12Washer-Belleville3290-456
13Mount-Rebound55-9460
14Tube-Spacer55-9470
15Wheel66-6510
16Pushnut32112-14
17Spacer-Wheel66-6501
18SCHRAUBE81-0570
19MUTTER3296-29
20Mount-Load55-9450
21Support-Recoil55-9070
22Spacer-Wheel66-6500
23Nut-Hex81-0300
24Frame Assembly63-3750
25Rubber Grommet237-89
26Washer3256-23
27Nut-Lock32152-8
29Seal-Tank55-9310
30Screw, M856-6380
31
