Spare Parts Lists for Toro Roth / TORO Starter Engine & Switch Housing Assy.




pos.decriptionspare part number
Pinion Assembly61-4700
61-4601

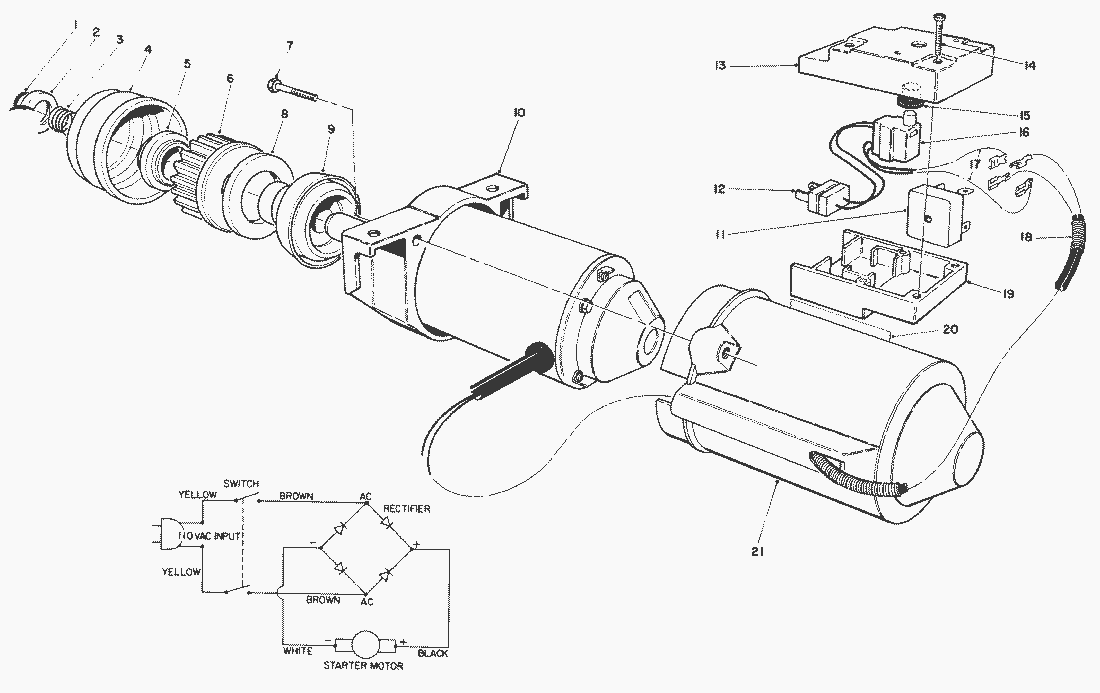

spare parts list


pos.decriptionspare part number
1Retaining Ring61-4680
2Pinion Stop61-4670
3Spring61-4690
4Retainer61-4720
5Bushing61-4750
6
7Screw-Plastite61-4640
8Ring-Rubber61-4730
9
11Bridge Rectifier37-7600
12Plug36-8370
13Cap-Switch Housing (Model No. 38185C only)66-1760
14Plastite Screw61-4830
15Boot-Switch61-4810
16Starter Switch61-4820
17Wire-Switch to Rectifier36-8360
18Cable Cover61-4860
19Base-Switch Housing (Model No. 38185C only)66-1750
20Decal-UL66-6590
21Cover-Starter Motor61-4620
Ft. Electrical Extension Cord28-91707
