> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR Powerlite > 601/38175 > 9900001 > Engine & Switch Housing Assy. (230 Volt)(Model No. 38178)

Spare Parts Lists for Toro Roth / TORO Engine & Switch Housing Assy. (230 Volt)(Model No. 38178)

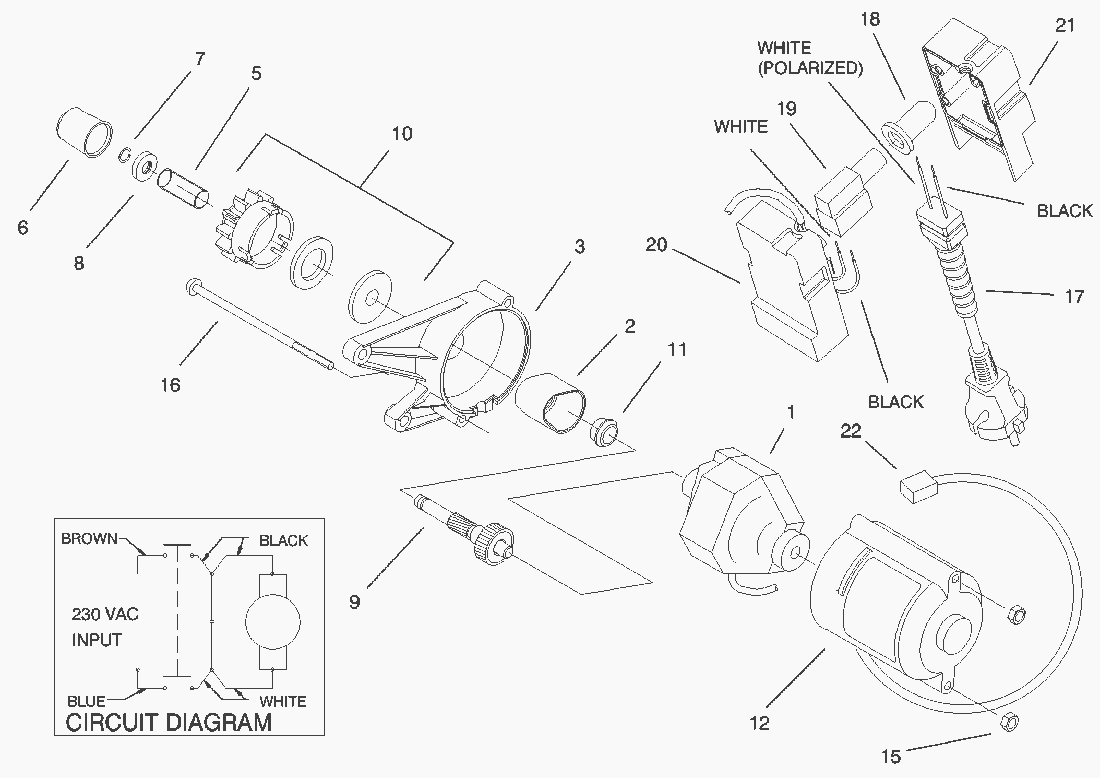

spare parts list


pos.decriptionspare part number
1ASM-Motor99-1917
2Cover-Gear70-7850
3Housing-Upper Starter70-7810
5Spring61-4690
6Cap-Pinion70-7890
7Retaining Ring61-4680
8Pinion Stop61-4670
9Shaft & Gear Assembly92-6003
10Pinion Assembly84-5240
11Bushing-upper70-7900
12Housing-Lower Starter70-7820
15Nut3296-2
16Screw-Phillips Pan Hd32144-101
17Plug-Power98-2259
18Boot-Switch61-4810
19Starter Switch61-4820
20Base-Switch Housing98-2253
21Cap-Switch Housing98-2254
22Strap-Motor (Model No. 38175 Only)250-7
