Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CCR Powerlite
>
601/38175
>
9900001
>

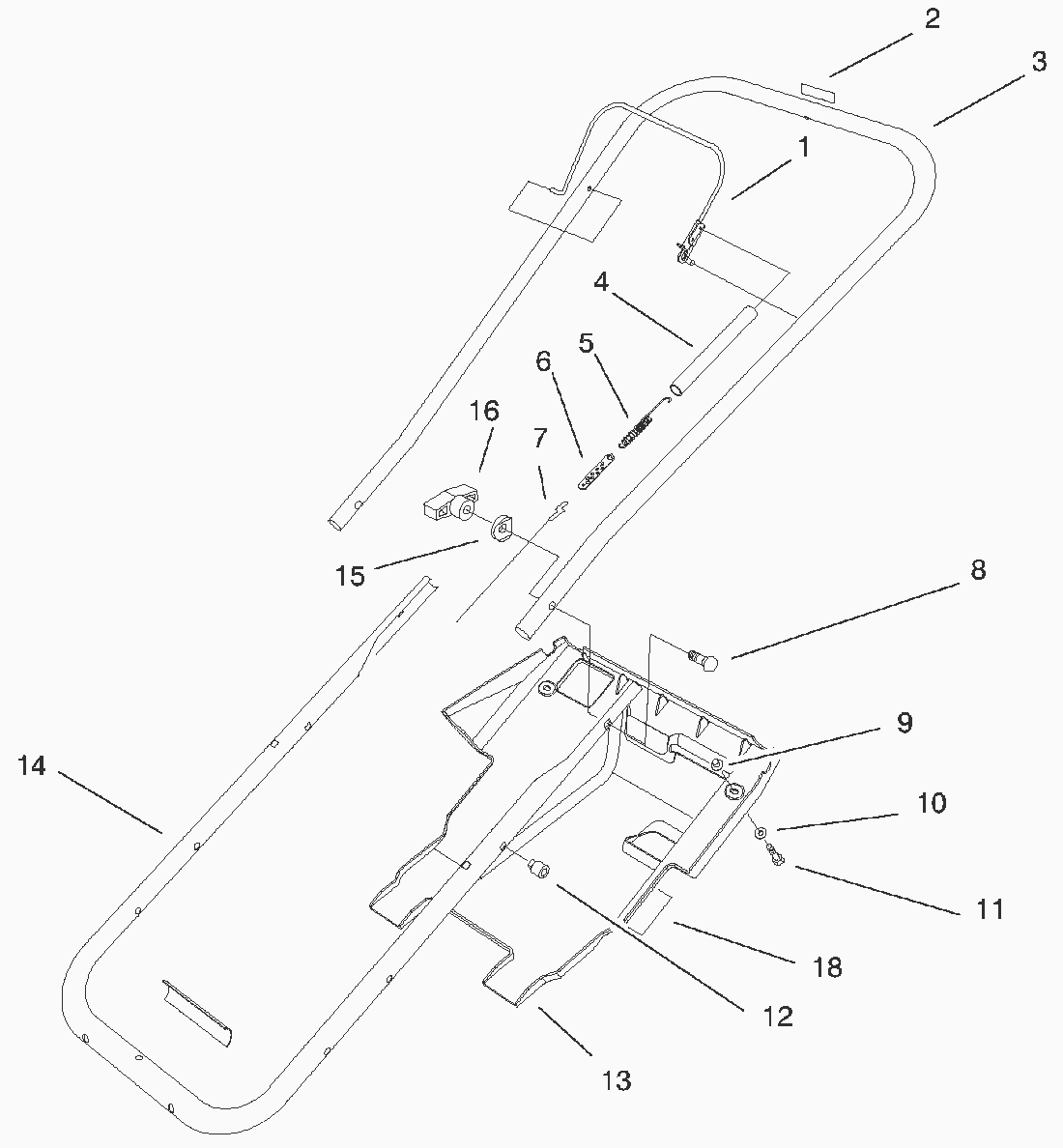

Handle Assy.
Spare Parts Lists for Toro Roth / TORO Handle Assy.
pos.
decription
spare part number
1
Bail (Model 38177, 38178)
95-7943-03
2
Decal-Rotor Drive
94-2577
3
Handle-Upper (Model 38170, 38175)
75-9070-03
3
Handle-Upper (Model 38177, 38178)
95-7944-03
4
Cover-Spring
71-5530
5
Spring-Extension
71-5480
6
Adjuster-Cable
71-5330
7
Cable-Clutch (Model 38177, 38178)
94-9949
8
SCHRAUBE
17-9426
9
Grommet
605120
10
Washer
3256-14
11
Self Tapping Screw
32144-34
12
Nut-Push
32115-17
13
Shroud-Lower
75-8790
14
Tube-Frame
75-9060-03
15
Washer-PM
75-9130
16
Knob
98-7134
18
Decal-Warning (Model No. 38185C)
61-4790
