back to
>
Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CCR Powerlite
>
601/38175
>
9900001
>

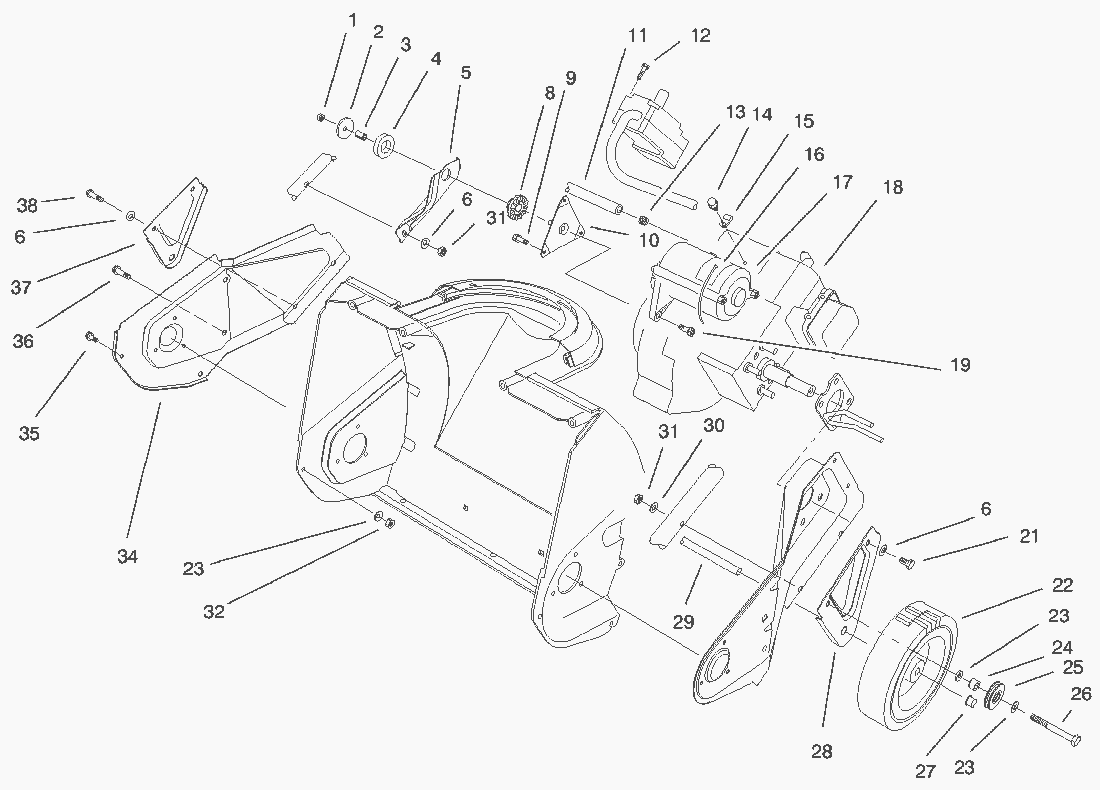

Engine & Wheel Assy. (Cont.)
Spare Parts Lists for Toro Roth / TORO Engine & Wheel Assy. (Cont.)
pos.
decription
spare part number
34
Sideplate-RH
75-8820-03
35
Screw-Hex Washer Hd.
32105-23
36
Screw-Hex Washer Hd.
46-8094
37
Bracket-Wheel
75-8900-03
