> Roth / TORO > Hand operated > Snowthrower > Two stage > 924 PowerShift > 628/38079 > 220000001 > Engine and Transmission Assy.

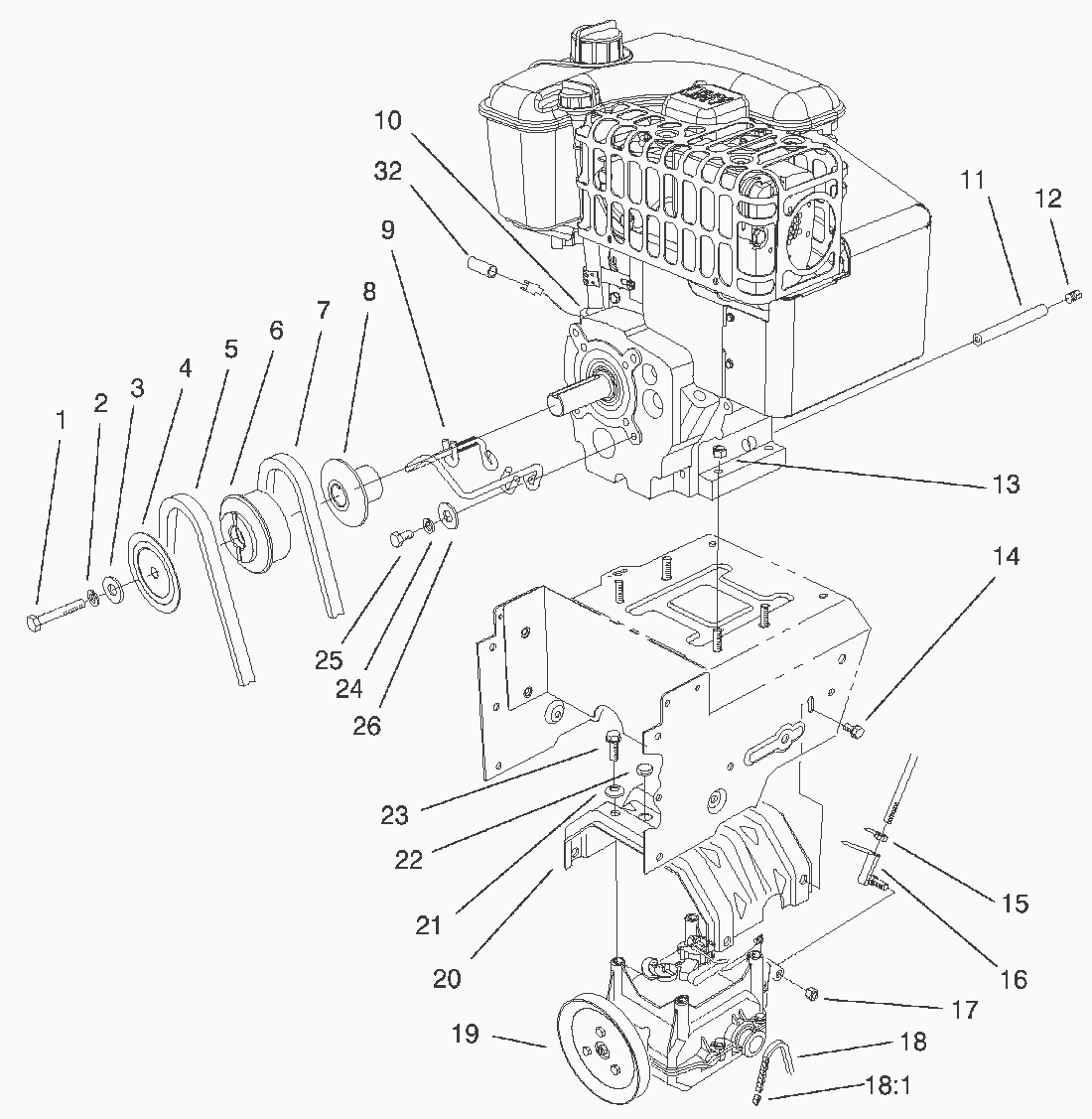

Spare Parts Lists for Toro Roth / TORO Engine and Transmission Assy.




spare parts list


pos.decriptionspare part number
1Screw-Cap Hex Hd.3212-8
2Washer-Lock3253-6
3Washer3256-41
4Sheave Half-Impeller62-0940
5Belt-Impeller63-2961
6Hub-Sheave62-0930
7Belt-Traction63-2951
8Sheave Half-Traction62-0920
9Guide-Belt100-3432
10
102Cord-Extention (only on: 38064)99-9300
11Pipe Nipple289-34
12Pipe Cap288-2
13Flange Nut32128-20
14Screw-Hex. Washer Hd.3234-7
15Jam Nut3220-3
16Ball Joint78-2920
17Locknut3296-6
18Chain-Drive63-2940
181Link-Offset2710-15
19Transmission Assembly66-8030
20Transmission Frame ASM63-2990-03
21Washer-Belleville3290-461
22Cap Plug95-7947
23Screw-Cap Hex Hd.11-0590
24Lockwasher3253-4
25Capscrew3210-3
26Washer3256-41
32Cap-Wire94-2782
