back to
>
Roth / TORO
>
Hand operated
>
Snowthrower
>
Two stage
>
924 PowerShift
>
628/38079
>
220000001
>

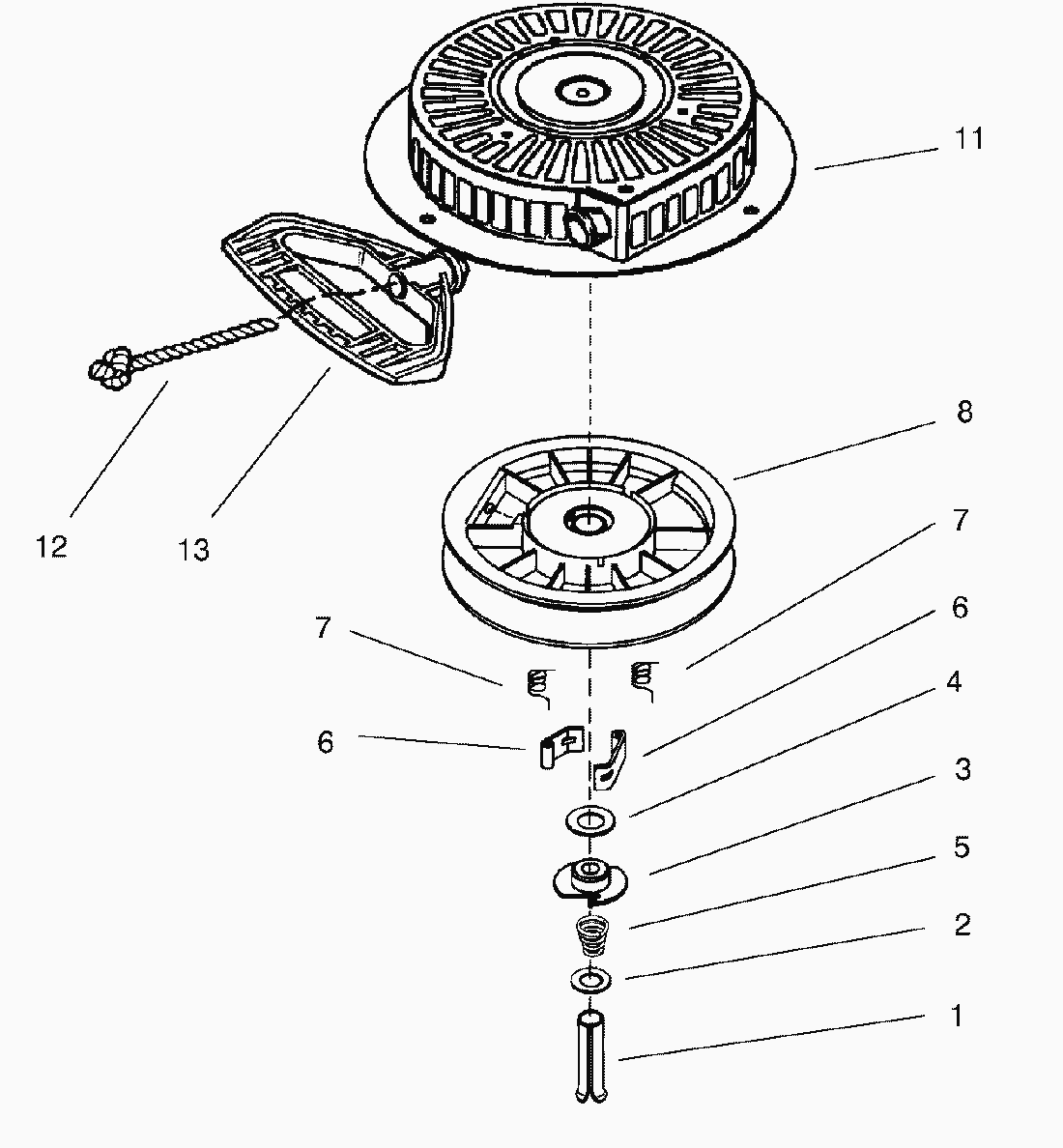

Recoil Starter No. 590749*
Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590749*
pos.
decription
spare part number
590599A
pos.
decription
spare part number
2
Washer
590600
3
Retainer
590679
4
Washer
590601
5
Spring-Brake
590678
6
Dog-Starter
590680
7
Spring, R.H. Dog
590412
8
Pulley & Rewind Spring Assy
590682
11
Starter Housing Asm
590750
12
Rope, Starter
590535
13
Handle-Mitten Grip Starter
590574
