> Roth / TORO > Hand operated > Snowthrower > Two stage > 924 PowerShift > 628/38079 > 220000001 > Handle and Control Assy.

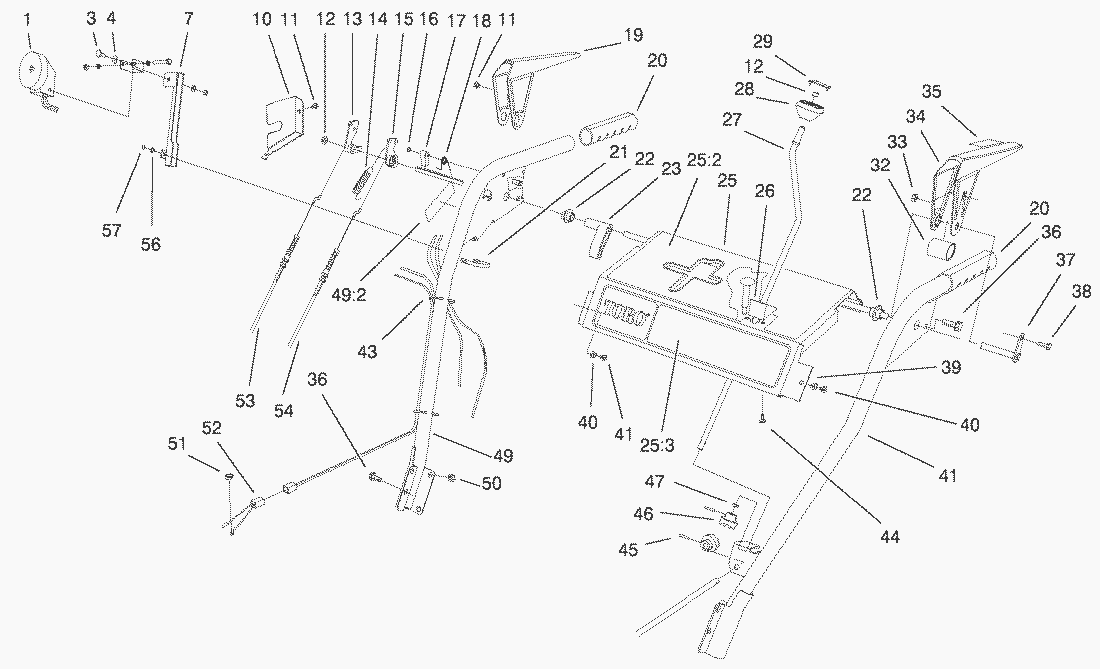

Spare Parts Lists for Toro Roth / TORO Handle and Control Assy.




spare parts list


pos.decriptionspare part number
1
3Bolt-Carriage3231-2
4Washer3256-26
7Mount-Light (Model 38559)68-7110-03
10Cover-Lock, Lever63-2170-03
11Screw2210-250
12Push-On Speed Nut3290-320
13Tang-Locking62-0300
14Spring-Extension88-0810
15Cam-Release62-0290
16Ring-Retaining32151-66
17Latch-Lock62-0280
18Spring-Torsion63-2910
19Lever-Traction, RH62-1050-03
20Handlegrip66-7850
21Bolt-U68-7140
22Bushing-Lever62-1070
23Lever-Trip62-1640
25Control Panel ASM (only on: 38547)100-3574
25Control Panel ASM (only on: 38079)100-3575
252Decal-Top, Panel (Only On: 38542)99-3230
252Decal-Control (Only On: 38546)99-3229
253Decal-Front Panel (924)(only on: 38079)100-3438
253Decal-Front Panel (only on: 38547)100-3335
26Plate-Guide62-1490
27Rod-Chute Crank63-2160
28Knob-Chute Control62-1320
29Cover-Knob62-1520
32Spacer-Traction Lever63-3380
33Nut3296-2
34Lever-Traction, LH62-1060-03
35Decal-Lever (Model No. 38510)63-3050
36Screw-Wash. Hd., Tap.32144-14
37Rod-Cross63-2030
38Screw3290-359
39Washer3256-14
40Self Tapping Screw32104-76
41LH Handle ASM, 24-3266-8091-03
43Tie Wrap3290-378
44Screw-Pan Hd.94-6961
45Roll Pin32121-50
46Gear-Universal62-1460
47Washer-Rubber62-1230
49Handle ASM (only on: 38559)100-3598
49Handle ASM (only on: 38560)100-3597
492Decal-Warning (Model No. 38543 Only)94-2575
492Decal-Warning (Model No. 38580 Only)66-6860
50Nut-Lock3296-47
51Hex Nut3217-6
52Wire Assembly54-9810
53Cable-Impeller63-2700
54Cable-Traction63-2710
56Washer3256-23
57MUTTER3296-29
