Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CCR 2400
>
640/38412
>
8900001
>
Engine

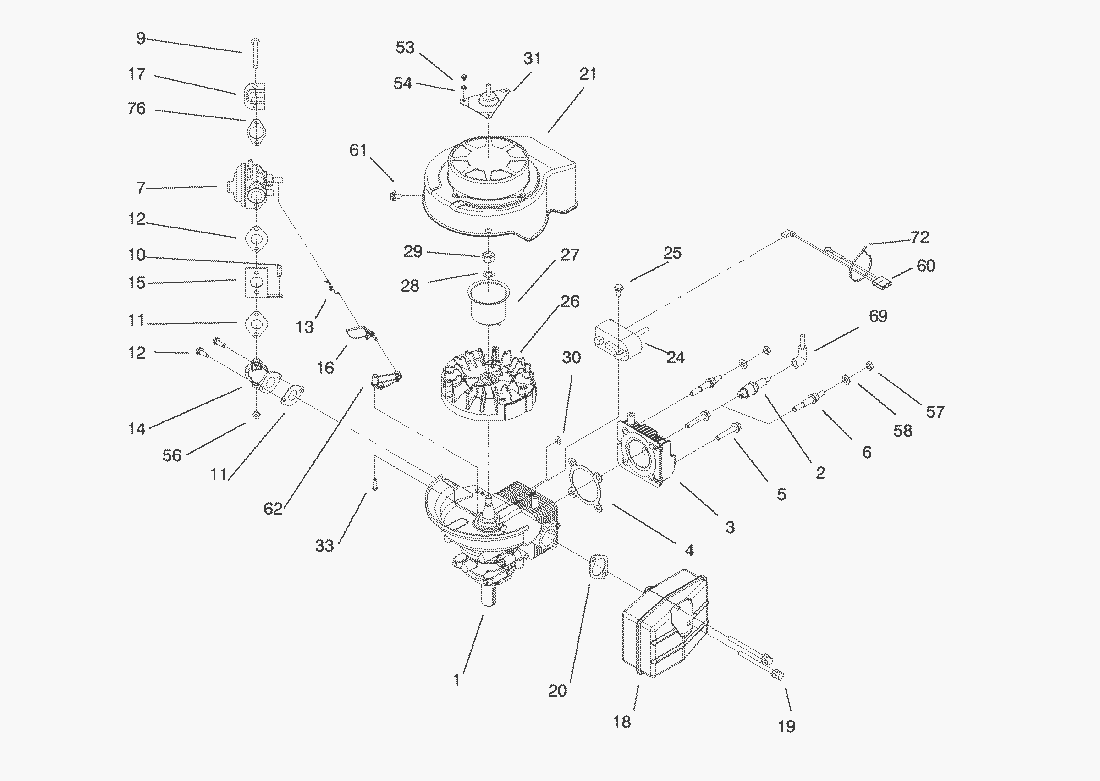

Spare Parts Lists for Toro Roth / TORO Engine
pos.
decription
spare part number
1
Short Block ASM
95-7634
2
ZUENDKERZE
50-1170
3
Head
94-5776
4
Gasket-Head
94-5778
5
Bolt
94-5780
6
Stud
94-5779
7
Carburetor ASM
94-5785
9
Screw
612507
10
Spring Governor
94-5794
11
Intake Gasket
94-5795
12
Screw
609482
13
Link-Governor
94-5797
14
Manifold
94-5798
15
Bracket-Spring
94-5799
16
Vane-Air
95-1750
17
Spit-Cup
95-1751
18
Muffler ASM
95-1767
19
Screw
613282
20
Gasket-Exhaust
95-1778
21
Shroud & Recoil ASM
95-1779
24
Ignition ASM
684049
25
Screw-HWH
613208
26
Flywheel
95-1784
27
Cup-Starter
95-1786
28
Washer-Lock
316959
29
Nut
130743
30
Key
607199
31
Bracket & Stud ASM
95-1895
33
Screw-HWH
98-1375
53
Screw
92-6031
54
Lockwasher
3255-10
56
Nut-HJ
611245
57
Nut-Lock
146501
58
Washer
146368
60
Wire Harness
95-7618
61
Screw
700094
62
Mount-Vane
95-1765
69
Cover & Terminal
684698
72
Tie Strap
317893
76
DICHTUNG
81-0090
