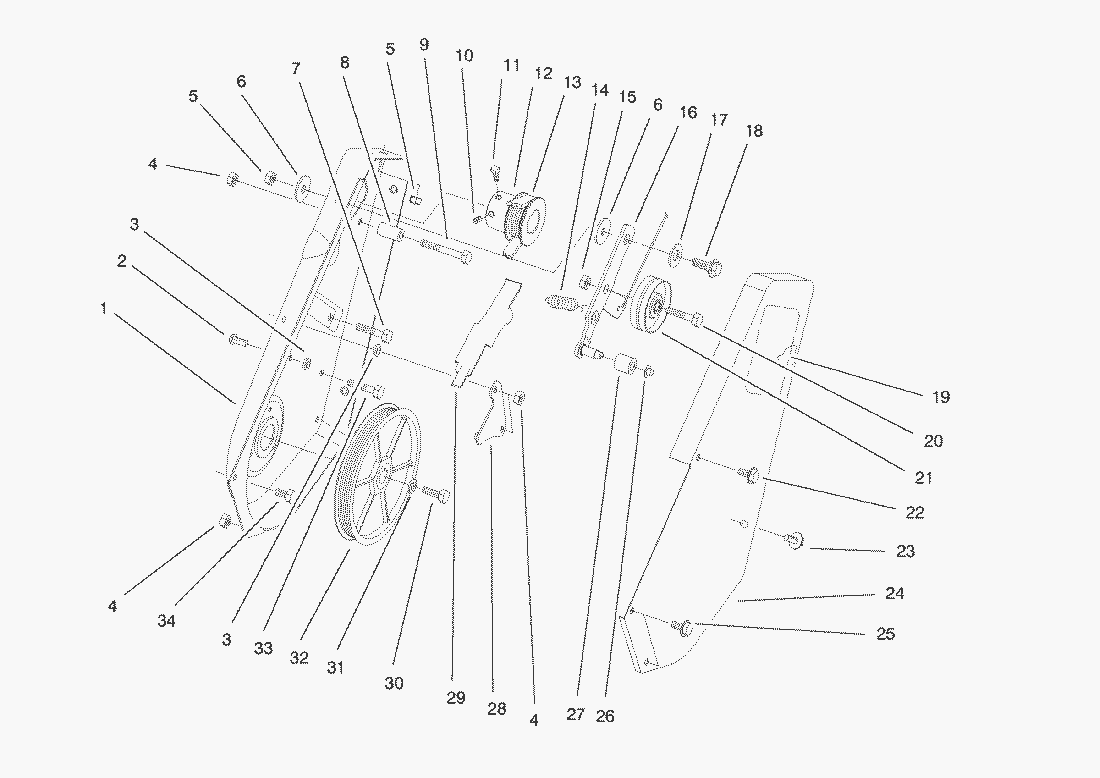

Spare Parts Lists for Toro Roth / TORO Pulley & Cover Assy.

pos.	decription	spare part number
1	Sideplate-LH	55-8851-01
2	Screw-Button Hd.	3274-31
3	Spacer	55-9620
4	MUTTER	3296-42
5	MUTTER	3296-29
6	Washer	5-4460
7	Capscrew	322-3
8	Guide-Drive Belt	55-9530
9	Screw-Hex. Hd.	321-13
10	Screw-Set	3245-41
11	Screw-Set, Sq. Hd.	3241-7
12	Pulley-Engine	55-9180
13	Belt-Drive	55-9300
14	Spring-Extension	55-9280
15	Locknut	32152-2
16	ASM-Idler Arm	63-3610
17	Washer	25-5640
18	Shoulder Screw	27-0410
19	Decal-Belt Routing	60-9480
20	Capscrew	323-29
21	Pulley-Idler	55-9290
22	Screw-Special	36-3860
23	Hex Washer Hd. Thread Forming Screw	12-3270
24	Cover-Drive	55-9010-01
25	Screw-Hex. Hd.	32105-15
26	SICHERUNGSKAPPE	32112-11
27	Roller-Brake	55-9520
28	Pivot Plate Assembly	55-9570
29	Arm-Brake	55-9550
30	Screw-Cap Hex Hd.	321-30
31	Washer-Belleville	3290-456
32	Pulley-Rotor	60-9320
33	Capscrew	321-4
34	Screw-Hex. Hd.	32105-8
35	Decal-Hot (Model No. 38430, 38435)	95-1904
36	Decal-Hot	94-2561
