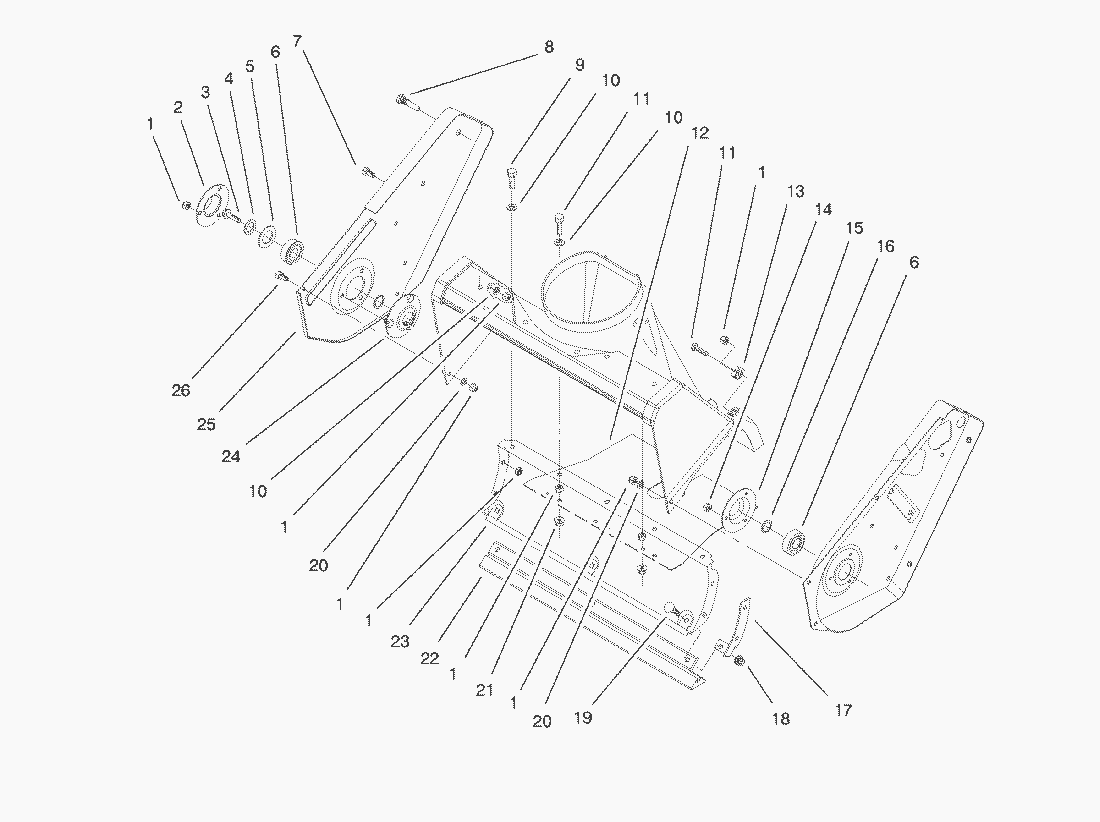

Spare Parts Lists for Toro Roth / TORO Side Plate Scraper Assy.

pos.	decription	spare part number
1	MUTTER	3296-42
2	Retainer-Bearing	52-7290
3	Screw-Cap Hex Flange	3234-25
4	Flat Washer	3256-24
5	Washer-Rubber	52-7270
6	Ball Bearing	38-7820
7	Screw-Hex. Hd.	322-43
8	Pin	38-8211
9	Capscrew	321-4
10	Washer	3256-22
11	Screw-Hex Hd.	321-6
12	Cover-Bottom	55-9512
13	Bracket-Housing	55-9430
14	Nut	3296-2
15	Bearing Flange	38-8620
16	Washer-Thrust	52-7280
17	Bracket-Lower Housing	56-2610
18	Locknut	32149-2
19	Screw-Carriage	3229-11
20	Washer	3256-67
21	Hex Flange Locknut	32128-10
22	Scraper	55-8760
23	Wa-Housing	55-9220-01
24	Bearing Flange	52-9110
25	Sideplate-RH	55-8840-01
26	Screw-Hex. Hd.	32105-15
