> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 PowerShift > 628/38546 > 99000001 > Handle Assy.

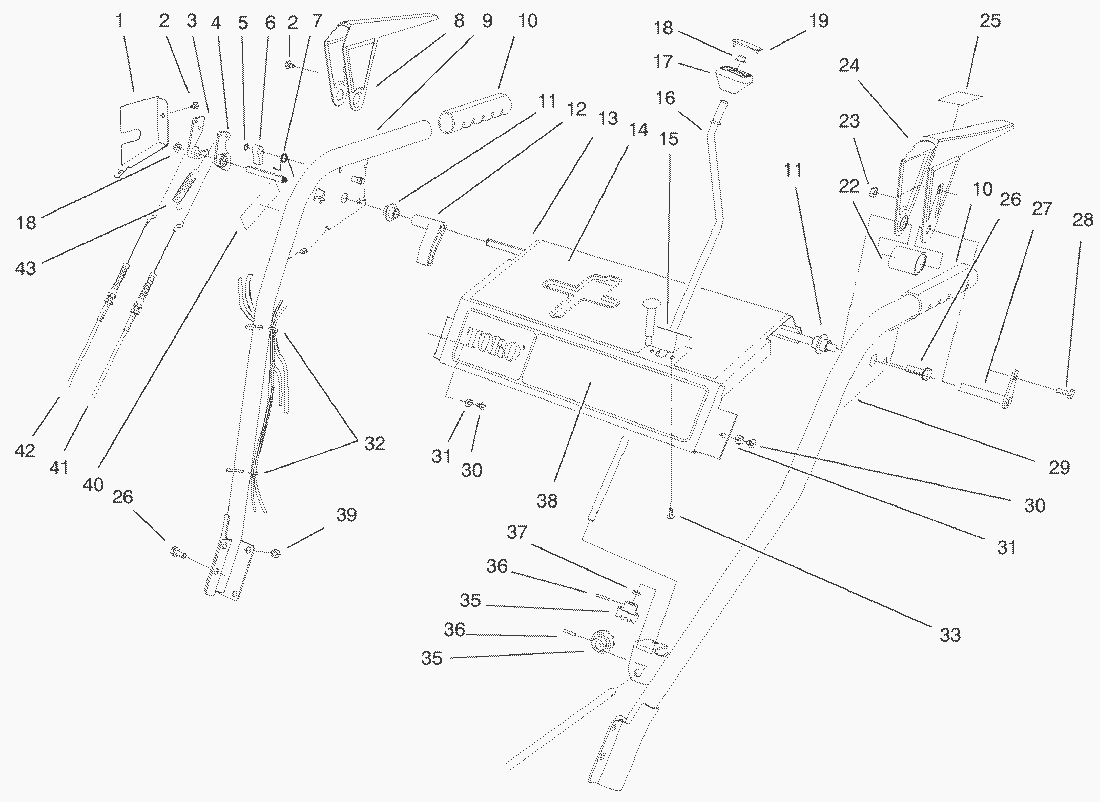

Spare Parts Lists for Toro Roth / TORO Handle Assy.




spare parts list


pos.decriptionspare part number
1Cover-Lock, Lever63-2170-03
2Screw2210-250
3Tang-Locking62-0300
4Cam-Release62-0290
5Ring-Retaining32151-66
6Latch-Lock62-0280
7Spring-Torsion63-2910
8Lever-Traction, RH62-1050-03
9RH Handle ASM, 24-3262-1381-03
10Handlegrip66-7850
11Bushing-Lever62-1070
12Lever-Trip62-1640
13Control Plate ASM (Model 38542)99-5968
13Control Plate ASM (Model 38546)99-5969
14Decal-Top, Panel (Only On: 38542)99-3230
14Decal-Control (Only On: 38546)99-3229
15Plate-Guide62-1490
16Rod-Chute Crank63-2160
17Knob-Chute Control62-1320
18Push-On Speed Nut3290-320
19Cover-Knob62-1520
22Spacer-Traction Lever63-3380
23Nut3296-2
24Lever-Traction, LH62-1060-03
25Decal-Lever (Model No. 38510)63-3050
26Screw-Wash. Hd., Tap.32144-14
27Rod-Cross63-2030
28Screw3290-359
29LH Handle ASM, 24-3266-8091-03
30Self Tapping Screw32104-76
31Washer3256-14
32Tie Wrap3290-378
33Screw-Pan Hd.94-6961
35Gear-Universal62-1460
36Roll Pin32121-50
37Washer-Rubber62-1230
38Decal-Panel Front63-2510
39Nut-Lock3296-47
40Decal-Warning (Model No. 38543 Only)94-2575
40Decal-Warning (Model No. 38580 Only)66-6860
41Cable-Traction63-2710
42Cable-Impeller63-2700
43Spring-Extension88-0810
