> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 PowerShift > 628/38546 > 99000001 > Transmission Assy. No. 66-8030 (Cont.)

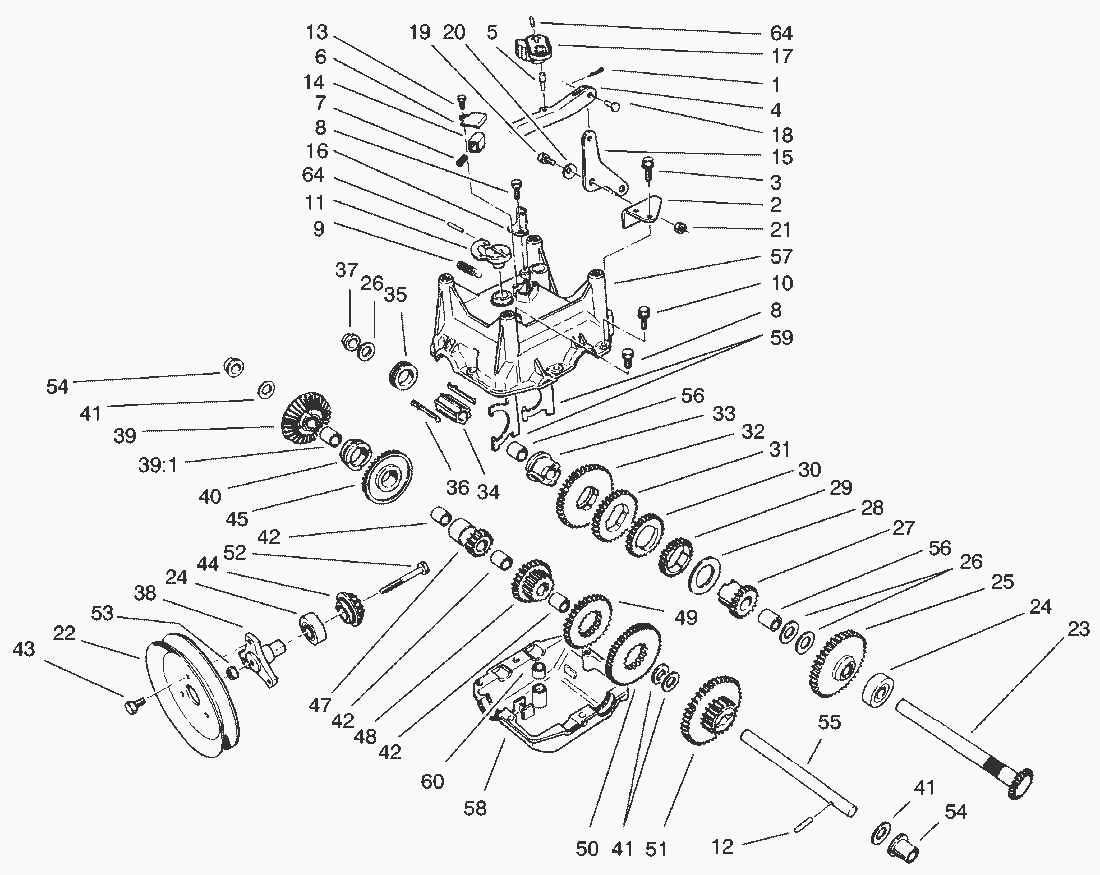

Spare Parts Lists for Toro Roth / TORO Transmission Assy. No. 66-8030 (Cont.)




spare parts list


pos.decriptionspare part number
51Gear-Compound 19T/41T62-0360
52Capscrew321-15
53Flange Locknut32128-32
54Bushing-Flange62-1170
55Shaft-Intermediate62-0330
56Bushing-Output62-1350
57Gear Case-Upper62-0490
58Gear Case-Lower62-0480
59Yoke-Shift62-1040
60Bushing-Yoke29-9570
64Pin-Roll32121-120
