> Roth / TORO > Hand operated > Snowthrower > Two stage > 3521 > 621/38035 > 4000001 > Handle Assy.

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
	Bracket Chute Control Mounting (Incl. Ref. 4 & 37)	6-3069

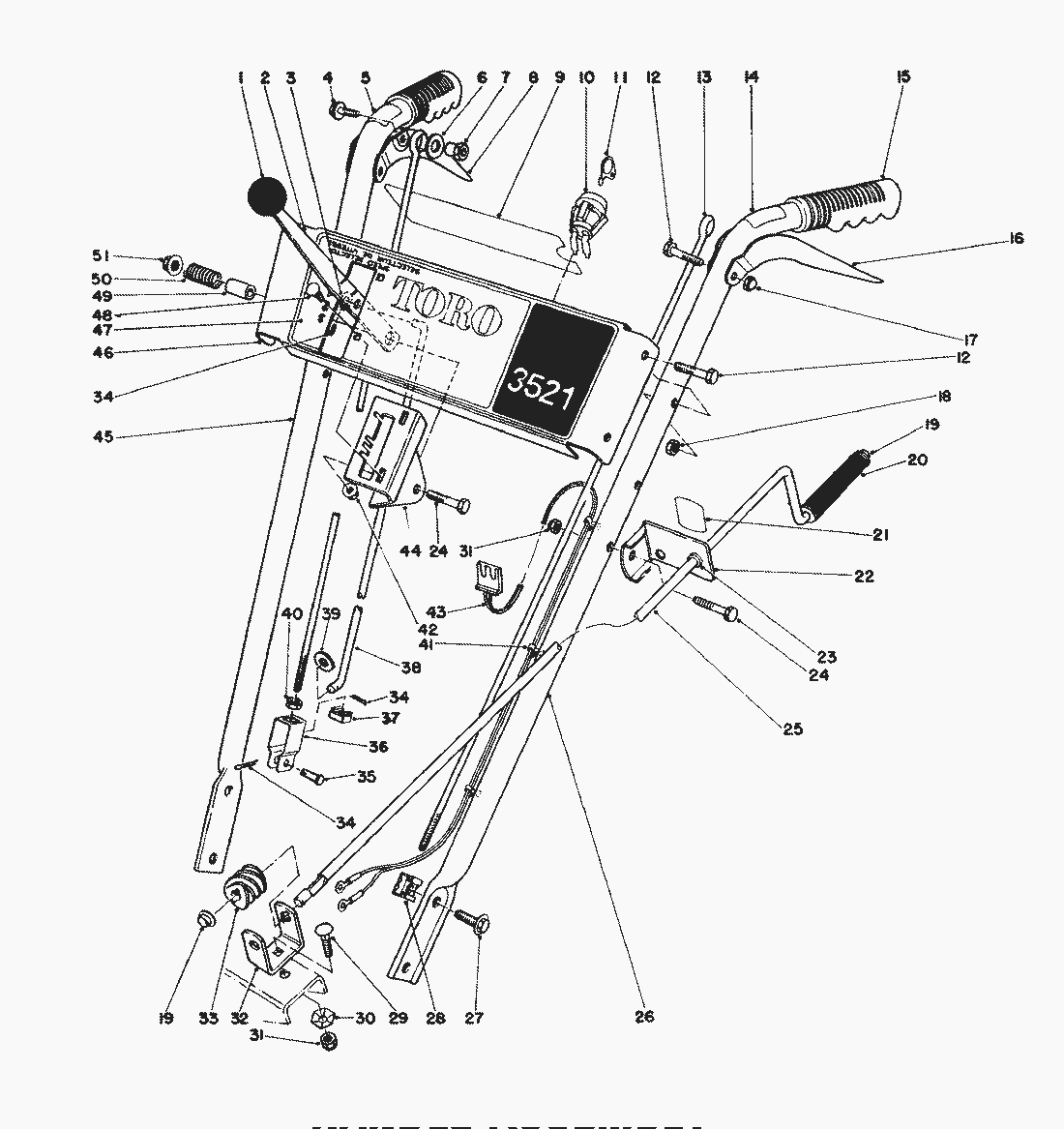

spare parts list

pos.	decription	spare part number
1	Knob	233-21
2	Speed Selector	37-8820
3	Flat Washer	3256-2
4	Hex Flange Capscrew	3234-13
5	Decal-Auger Drive	39-1130
6	Flat Washer	3256-24
7	Post-Linkage Mounting	47-4990
8	Lever-Auger Control	47-4970
9	Decal-Escutcheon Back	37-9140
10	Switch	40-5940
11	Keys	33-2010
12	Capscrew	321-37
13	Upper Link	47-4980
14	Decal-Wheel Drive	39-1140
15	Grip	37-9110
16	Lever-Traction Control	47-4960
17	Capnut	32111-7
18	Lock Nut	32152-4
19	Push-On Speed Nut	3290-320
20	Chute Control Grip	40-8230
21	Decal Chute Direction	29-6370
23	Nyliner	256-249
24	Capscrew	322-7
25	Chute Control Rod	40-8270
26	Handle-Left	37-8720
27	Flange Screw	3234-14
28	Retained Nut	3290-196
29	Carriage Bolt	3230-2
30	Pyramidal Washer	3290-238
31	MUTTER	3296-29
32	Bracket-Chute Worm	40-8280
33	Worm Gear	40-8250
34	Cotter Pin	3274-4
35	Clevis Pin	283-3
36	Clevis	39-3080
37	Retained Nut	32115-5
38	Rod-Speed Selector	39-7570
39	Washer	3256-23
40	Jam Nut	3218-1
41	Wire Mount	17-9120
42	Flange Locknut	32128-32
43	Wire Harness	43-7390
44	Mount-Speed Selector	39-1280
45	Handle-Right	37-8710
46	Panel-Escutcheon	43-7360
47	Decal-Escutcheon	49-2370
48	Carriage Bolt	3229-22
49	Spacer-Speed Selector	40-8130
50	Spring	37-9150
51	Flange Nut	32128-13
