> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 PowerShift > 630/38565 > 8000001 > Handle Assy.

Spare Parts Lists for Toro Roth / TORO Handle Assy.

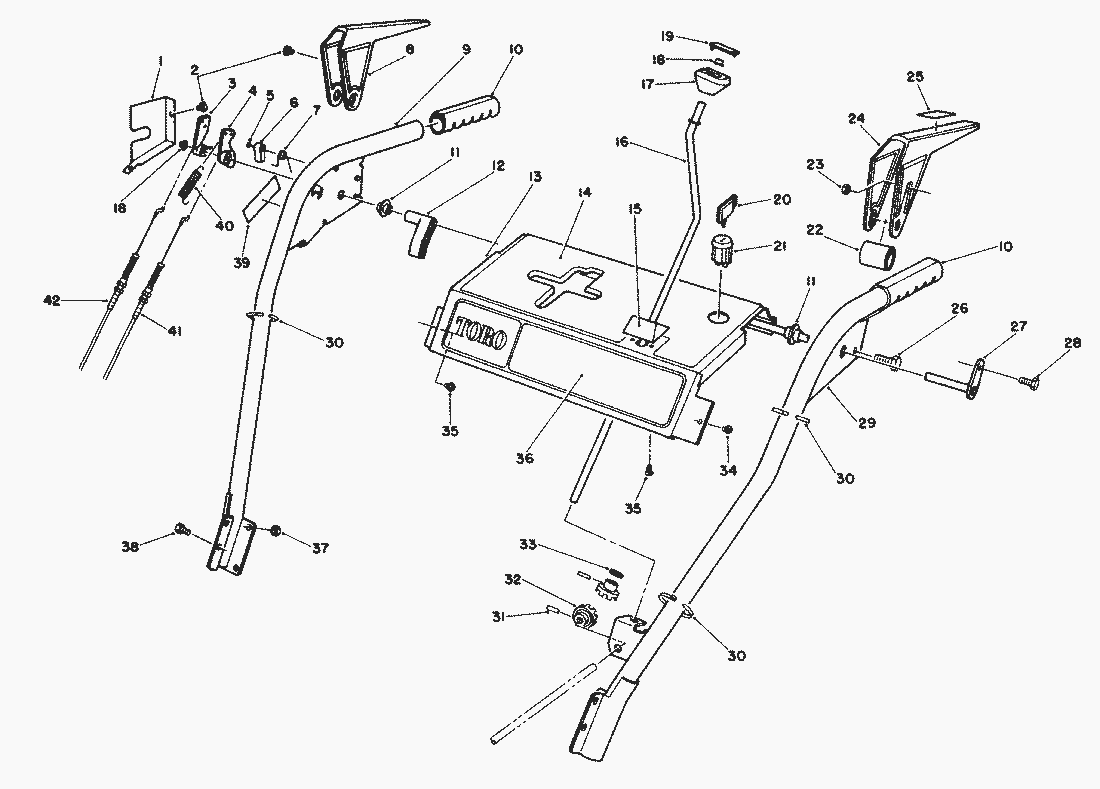

spare parts list


pos.decriptionspare part number
1Cover-Lever Lock63-2170
2Screw2210-250
3Tang-Locking62-0300
4Cam-Release62-0290
5Ring-Retaining32151-66
6Latch-Lock62-0280
7Spring-Torsion63-2910
8Lever-Impeller62-1050
9Handle-R.H.62-1381
10Handlegrip62-1480
11Bushing-Lever62-1070
12Lever-Trip62-1640
13Panel-Control63-2000
14Decal-Panel Top (Model No. 38500)63-2540
Decal-Panel Top (Model No. 38505)63-2550
15Plate-Guide62-1490
16Rod-Chute Crank63-2160
17Knob-Chute Control62-1320
18Push-On Speed Nut3290-320
19Cover-Knob62-1520
20Key-Switch62-7770
21Switch40-5940
22Spacer-Traction Lever63-3380
23Nut3296-2
24Lever-Traction62-1060
25Decal-Lever (Model No. 38510)63-3050
Decal-Lever (Model No. 38513)63-3060
26Screw-Hex Flange Hd.3234-29
27Rod-Cross63-2030
28Screw3290-359
29Handle-L.H.62-1391
30Tie Wrap3290-378
31Roll Pin32121-50
32Gear-Universal62-1460
33Washer-Rubber62-1230
34Self Tapping Screw32104-76
35Screw-Hex Flange Hd.32104-118
36Decal-Panel Front63-2530
37Nut-Lock3296-47
38Screw-Hex. Washer Hd.3234-7
39Decal-Adjustment (Model No. 38500)63-3460
Decal-Adjustment (Model No. 38505)63-3470
40Spring-Extension63-2720
41Cable-Traction63-2710
42Cable-Impeller63-2700
Harness-Wire63-3420
