> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 > 610/38160 > 3000001 > Handle Assy. (Cont.)

Spare Parts Lists for Toro Roth / TORO Handle Assy. (Cont.)

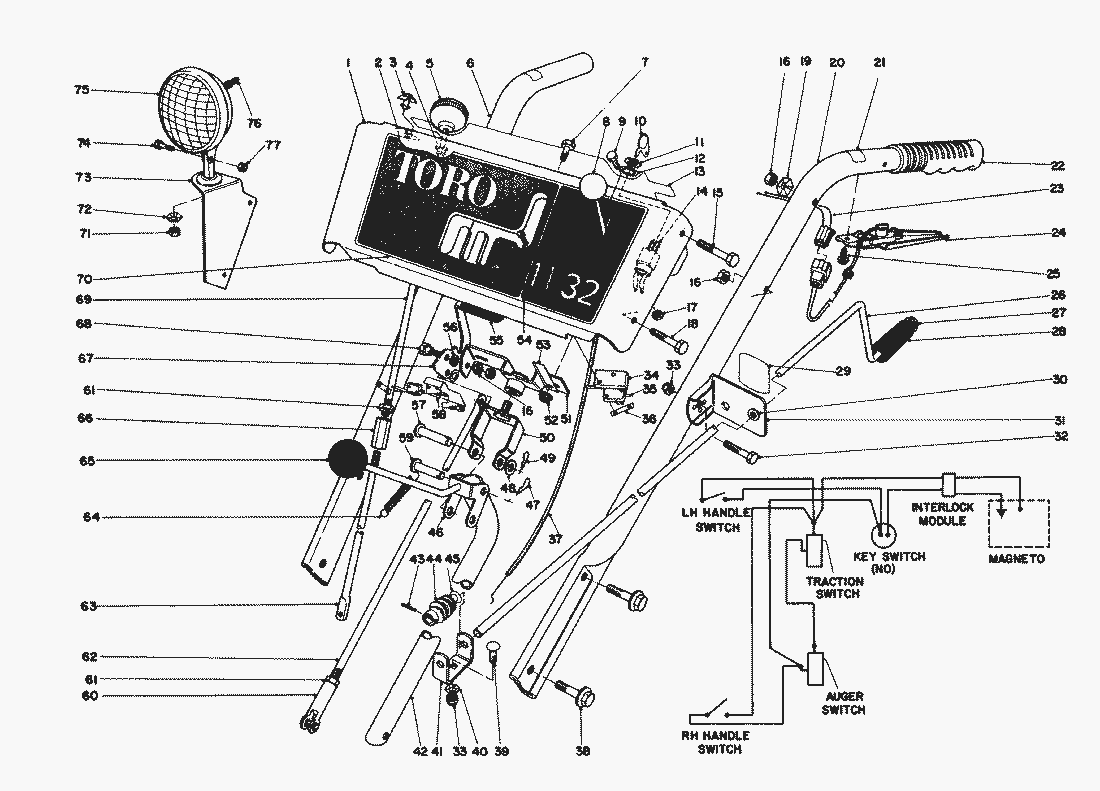

spare parts list


pos.decriptionspare part number
45Spring Washer3290-212
46Shift Rod26-9370
47Hair Pin Cotter3290-307
48Washer3256-6
49Hair Pin Cotter3290-322
50Pivot Bracket29-6490
51Swivel Block8-7930
52Hex Flange Locknut32128-10
53Retainer Wire26-9410
54Machine Screw3290-313
55Grip Auger Handle11-8970
56Washer3256-23
57Clevis Pin283-5
58Bracket Switch22-9300
59Clevis Pin283-15
60Clevis39-4640
61Jam Nut3220-3
62Drag Link29-6460
63Rod-Wheel Clutch Lower22-7970
64Spring Control Rod8-9900
65Knob233-21
66Coupling-Wheel Clutch Rod22-7940
67Handle Auger Clutch17-6620
68Shoulder Bolt11-9030
69Rod Wheel Clutch29-6470
70Decal Escutcheon37-0290
71Nut3219-3
72Pyramidal Washer3290-224
73Lamp Mount22-9390
74Capscrew321-5
75Headlamp Assembly22-9380
Lens-Sealed Beam219-15
76Switch Boot218-473
77Locknut32153-4
Tie Wrap3290-378
