> Roth / TORO > Hand operated > Snowthrower > Two stage > 1232 PowerShift > 630/38591 > 99000001 > 32 Auger Gearcase Assy. No. 74-1562

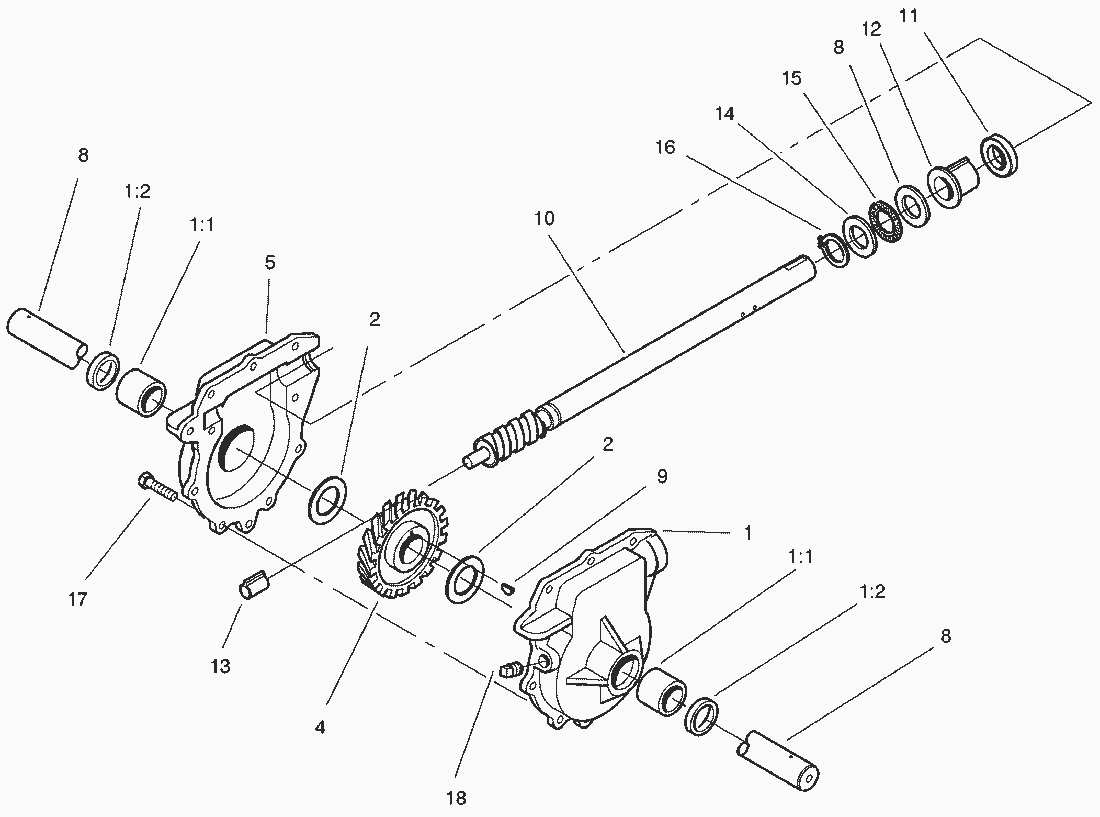

Spare Parts Lists for Toro Roth / TORO 32 Auger Gearcase Assy. No. 74-1562

spare parts list

pos.	decription	spare part number
1		74-1540
11	Bushing	256-237
12	Oil Seal	7-0045
2	Thrust Bearing	252-71
4	Gear-Helical	62-0120
5		74-1550
8	Shaft-Auger (32)	62-1532
9	Key-Woodruff	3257-10
10	Shaft-Impeller	66-7811
11	Seal-lnput	253-149
12	Bushing-Input	37-6560
13	Bushing-Worm	62-1150
14	Thrust Washer	252-78
15	Thrust Bearing	252-76
16	Ring-Snap	32151-33
17	Screw-Hex Washer Hd.	32144-110
18	Pipe Plug	281-1
