> Roth / TORO > Hand operated > Snowthrower > Two stage > 1232 PowerShift > 630/38591 > 99000001 > Tecumseh Starter NO 590733 (Optional)

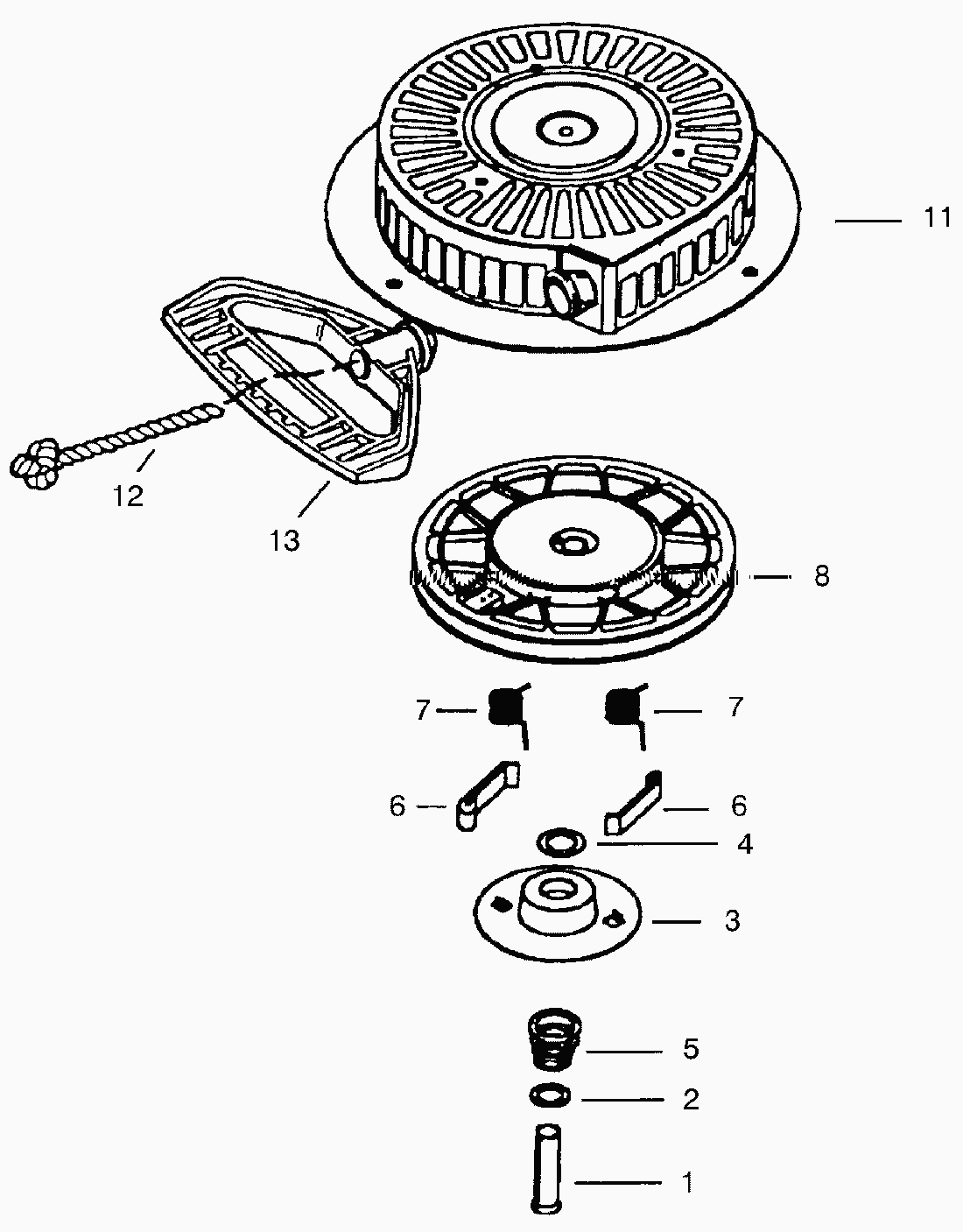

Spare Parts Lists for Toro Roth / TORO Tecumseh Starter NO 590733 (Optional)




pos.decriptionspare part number
590599A
spare parts list


pos.decriptionspare part number
2Washer590600
3Retainer590696
4Washer590601
5Brake Spring590697
6Starter Dog590698
7Dog Spring590699
8Pulley & Rewind Spring Assembly590709
11Starter-Housing Asm590734
12Rope, Starter590535
13Handle-Mitten Grip Starter590574
