Spare Parts Lists for Toro Roth / TORO Engine Tecumseh Model OHSK120-223619A (Model 38591 only)




pos.decriptionspare part number
35774A
Exhaust Valve (1/32)36936
Ring Set, Piston (.010 oversize)35780
Intake Valve (1/32)36937
37778A
Ring Set, Piston (.020 oversize)35781
35775A
Piston, Pin & Ring Set (.010)35777A

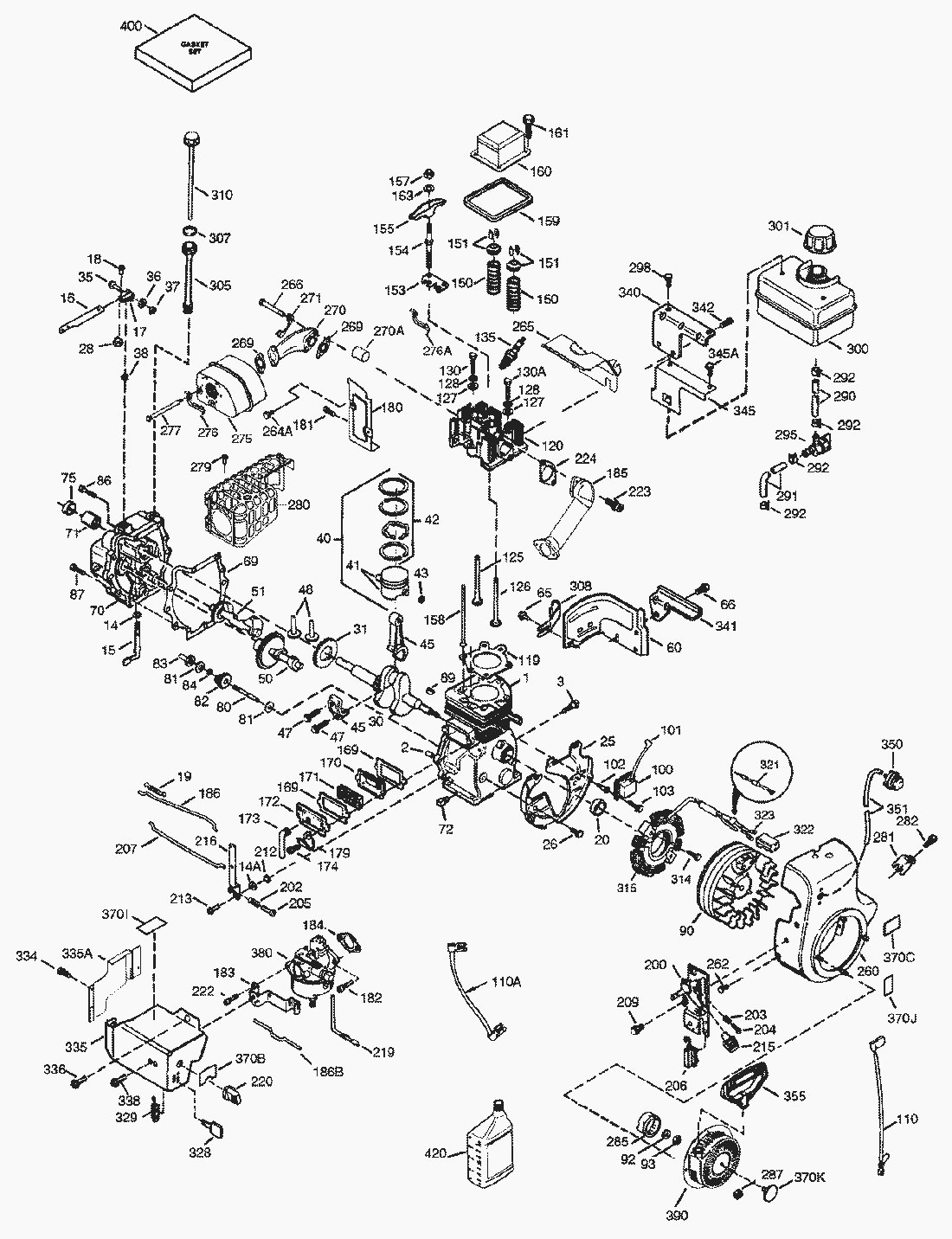

spare parts list


pos.decriptionspare part number
137083
2Pin, Dowel27652
3Screw, Hex Hd. Shoulder650820
14Washer, Flat28277
14Washer28558
15Governor Rod (Incl. Ref.35685
16Lever-Governor35686
17Clamp, Governor Lever29916
18Screw651028
19Spring-Extension35688
20Seal, Oil35319
25Blower Housing Baffle36460
26Screw, Hex Washer Hd.650561
28Locknut, Hex30322
30Crankshaft36706
31Gear-Counterbalance35327
35Screw, Hex Washer Hd.29826
36Lockwasher, E.T.29918
37Locknut, Hex29216
38Ring, Retaining29642
40Piston, Pin & Ring Set (Std.)35776A
4135773A
42Ring Set, Piston (Standard)35779
43Retaining Ring, Piston Pin35772
45Rod Assembly-Connecting (Incl. ref.36898
47Connecting Rod Bolt651033
48Lifter-Valve35313
50Camshaft35682A
51Weight-Counterbalance35315A
60Extension-Blower Housing35316A
65Screw, Hex Washer Hd. Self-tap.30200
66Screw, Hex Washer Hd.650561
69Gasket-Cylinder Cover35683
7035684A
71Bushing, Crankshaft35377
72Plug, Sq. Hd. Pipe, 1/4-18 (Oil Drain)27642
75Seal, Oil35319
80Shaft-Governor35751
81Washer-Flat35479
82Gear-Asm Governor35321
83Spool-Governor35322
84Ring, Retaining29193
86Screw, Hex Washer Hd.650833
87Screw, Hex Washer Hd.650832
89Key, Flywheel32589
90Flywheel w/Ring Gear OHSK120-222023E Only611094
92Washer, Lock650880
93Nut, Flywheel650881
100Solid State Assy.35135
101Cover, Spark Plug610118
102Solid State Mounting Stud651024
103Screw, Sternantrieb T-15651007
110Ground Wire35187
110Ground Wire36874
119Cylinder Head Gasket36932
120Cylinder Head37084
125Exhaust Valve (Std.)36934
126Intake Valve (Std.)36935
127Washer, Flat650691
128Washer-Belleville650690
130&rew-Hex. Flange Hd.650697A
130Screw-Sternantrieb650990
135Resistor Spark Plug (RN4C)34645
150Spring-Valve33507
151Keeper-Valve Spring33508
153Push Rod Guide35949
154Rocker Arm Stud650945
155Rocker Arm35950
157Lock Nut650947
158Rod-Push35466
159Rocker Arm Cover Gasket35952
160Rocker Arm Housing35953A
161Screw, Fil. Hd. Sems30063
163Washer650890
169Gasket-Breather27896A
170Body, Breather28423
171Element, Breather28424
172Cover, Valve Spring28425
173Tube-Breather35350
174Screw, Fil. Hd.650128
179Clip-Retaining30593
180Blower Housing Extension35954
181Screw, Hex Washer Hd. Self-tap.30200
182Screw-Hex. Hd.650517
183Bracket-Choke34583A
184Gasket-Carburetor33263
185Intake Pipe37085
186Link-Governor35691
186Spring-Choke36653
200Bracket-Control (Incl. Ref.35702
202Spring-Compression36482
203Spring, Compression31342
204Screw651029
205Screw651019
206Terminal Assy.610973
207Link-Throttle35692
209Screw, Hex Washer Hd. Thread Cutting650821
212Bushing30773A
213Screw650930
215Knob-Control35440
216Lever-Adjusting35679
219Rod-Choke35689
220Knob, Choke35438
222Screw, Fil. Hd.28820
223Screw650971
224Gasket-Pipe33515A
260Housing-Blower35694
262Screw, Phil. Hex Hd.29747B
264Screw, Hex Washer Spinlock Hd., Thread Forming650738
265Cylinder Head Cover37086
266Screw650876
269Gasket-Exhaust35762
270Exhaust Manifold (Model 38590 Only)35870
270Exhaust Port Liner35829A
271Plate-Locking35293
275Muffler37264
276Plate-Locking35348
276Plate, Muffler Locking31588
277Screw650877
279Screw (Model 38591 Only)651011
280Heat Shield37265
281Cover, Starter Bubble33013
282Screw, Pan Hd. Taptite650760
285Starter Cup35985B
287Nut & Lockwasher29752
290Line, Fuel29774
291Line-Fuel30962
292Clamp, Fuel Line26460
295Valve-Shut-Off35857
298Screw, Hex Washer Hd., Self-tap650665
300Fuel Tank (Incl. 292 & 301)37290
301Cap-Fuel Tank36246
305Tube-Oil Fill35574
307O Ring35499
308Clip-Oil Fill35539
310Dipstick35700
314Screw-Hex. Hd.650873
315611104
321Diode611161
322Body-Connector611142
323Terminal611118
328Ignition Keys35062
329Terminal Assy.610973
334Screw, Pan Hd.650257
335Cover-Carburetor35698
335Carburetor Cover37087
336Screw, Hex Washer Hd., Self drilling650765
338Screw, Hex Washer Hd. Thread Cutting650821
340Bracket-Fuel Tank35696
341Bracket-Fuel Tank35697
342Screw792028
345Baffle-Heat35699
345Screw650876
350PrimerAsm.570682A
351Line-Primer32180C
355Handle-Mitten Grip Starter590574
370Control Decal36253
370Primer Decal36501
370Warning Decal37119
370Throttle Decal35703
370Starter Decal36695
380Carburetor (Incl. Ref.640105
390Rewind Starter (Optional)590749
400Gasket Set36947A
420SAE5W30 4 Cycle Oil (Quart) RPM Setting: Low Speed 1700, High Speed 3450730226
