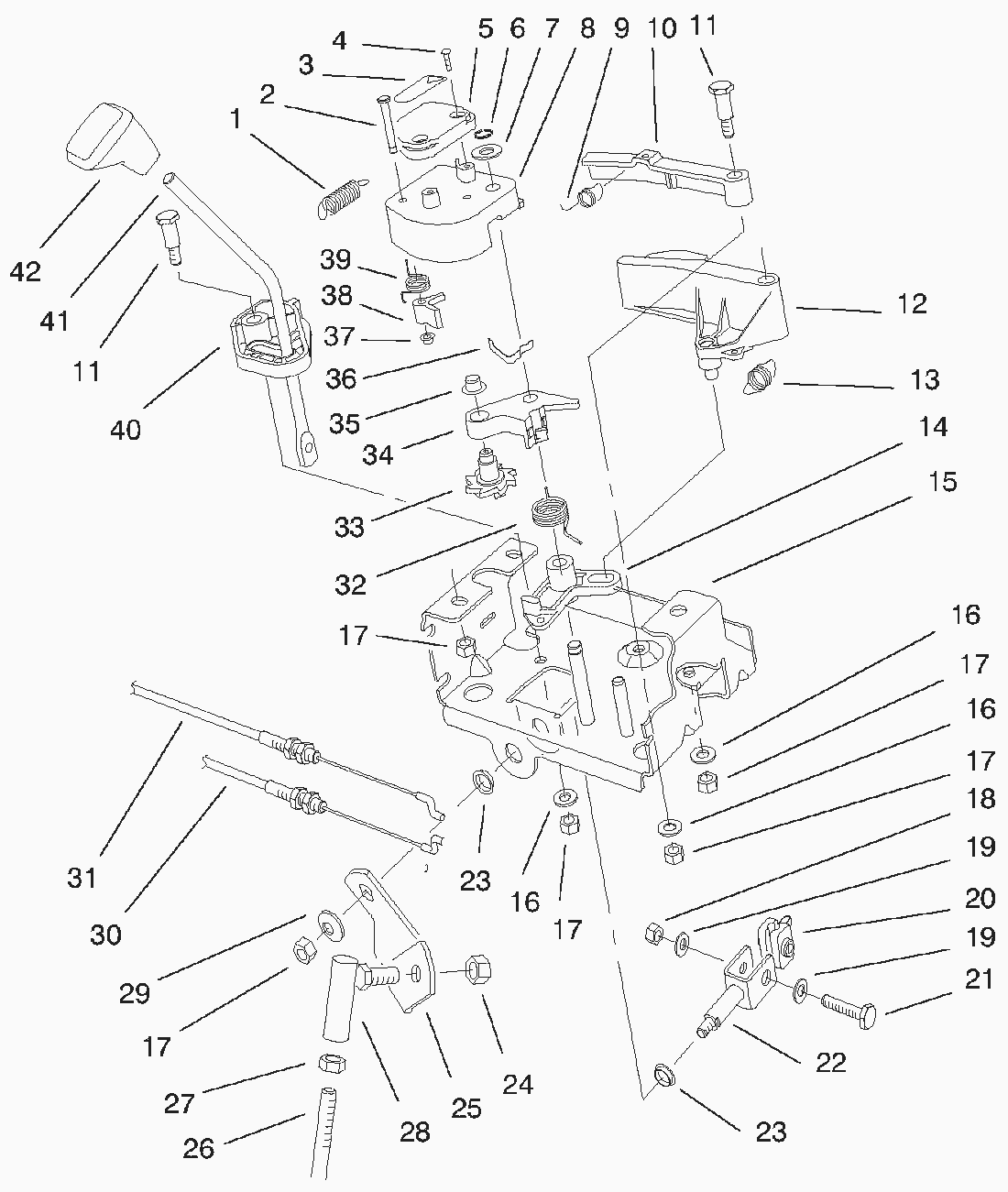

Spare Parts Lists for Toro Roth / TORO Traction Linkage Assy.

pos.	decription	spare part number
1	Spring-Extension (Latch Lever)	63-2220
2	Pin-Tang	63-2610
3	Decal-	63-2480
4	Screw-Pan Hd.	94-6961
5	Cover-Latch	62-1140
6	Ring-Retaining	32120-46
7	Washer-Thrust	257-9
8	Lever-Latch	62-1100
9	Spring-Extension (Lockout)	63-2240
10	Lever-Lockout	62-1700
11	Screw-Shoulder	63-2650
12	Lever-Reverse	62-1130
13	Spring-Extension (Reverse Lever)	63-2230
14	Lever-Reverse	62-1120
15	Control Frame ASM	63-2150-03
16	Washer	3256-23
17	MUTTER	3296-29
18	MUTTER	3296-42
19	Washer-Plain	3256-1
20	Retainer-Shift Rod	67-9250
21	Hex. Hd. Capscrew	321-9
22	Clevis	66-7730
23	Bushing-Nyliner	256-296
24	Locknut	3296-6
25	Bracket-Shift	63-2630
26	Rod-Shift (Lower)	63-2830
27	Jam Nut	3220-3
28	Ball Joint	78-2920
29	Washer-Belleville	3290-456
30	Cable-Gearbox	63-2210
31	Cable-Latch	63-2200
32	Spring-Torsion	63-2270
33	Wheel-Index	62-0170
34	Lever-Index Wheel	62-1110
35	Push-On Speed Nut	3290-320
36	Spring-Flat	62-1710
37	Push Nut-Washer Cap	3290-422
38	Tang-Index	62-0180
39	Spring-Torsion	62-1650
40	Base-Lockout	62-1470
41	Rod-Shift (Upper)	67-9240
42	Knob-Shift	62-1290
