> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2000 > 618/38185 C > 8000001 > Control Panel & ShroudING Assy.

Spare Parts Lists for Toro Roth / TORO Control Panel & ShroudING Assy.




pos.decriptionspare part number
12-4659
12-5949

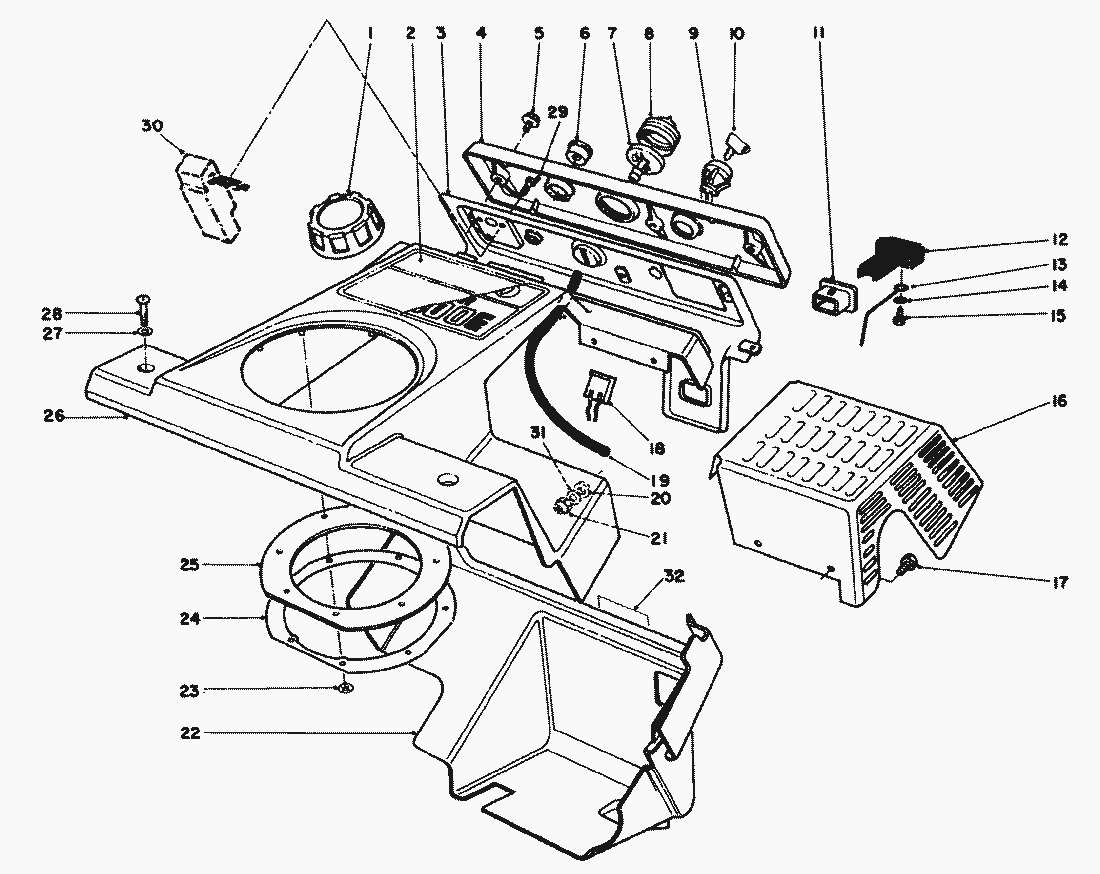

spare parts list


pos.decriptionspare part number
1Gas Cap Assembly55-3573
2Decal-CCR-2000 Electric Start61-4420
4Name Plate Control (Model No. 38185)61-4410
4Name Plate Control (Model No. 38185C)61-4470
5SCHRAUBE12-5450
6Guide-Starter Rope55-9410
7Body-Primer44-2750
8Bulb-Primer44-3100
9Switch40-5940
10Key-Switch62-7770
11Fitting-Choke Control55-8820
12Control-Choke (Model No. 38180)55-8810
12Control-Choke (Model No. 38180C)55-8811
13Base-Switch Housing61-4850
14Washer38-5710
15Screw-Hex Hd.32104-130
16Shield-Heat55-9210
17Screw-Hex. Hd.32105-8
18Connector Body218-532
19Hose-Primer443171
20Washer-Rubber55-9660
21Nut-Flange Lock32153-1
22Shroud-Lower55-8791
23Pushnut3290-474
24Retainer-Chute Seal55-9540
25Seal-Chute55-9260
27Washer3256-22
28Screw-Phillips3250-32
29Screw3214427
30
31Washer3256-14
32Decal-Warning (Model No. 38185C)61-4790
