Roth / TORO
>
Hand operated
>
Snowthrower
>
Single stage
>
CCR 2000
>
618/38185 C
>
8000001
>

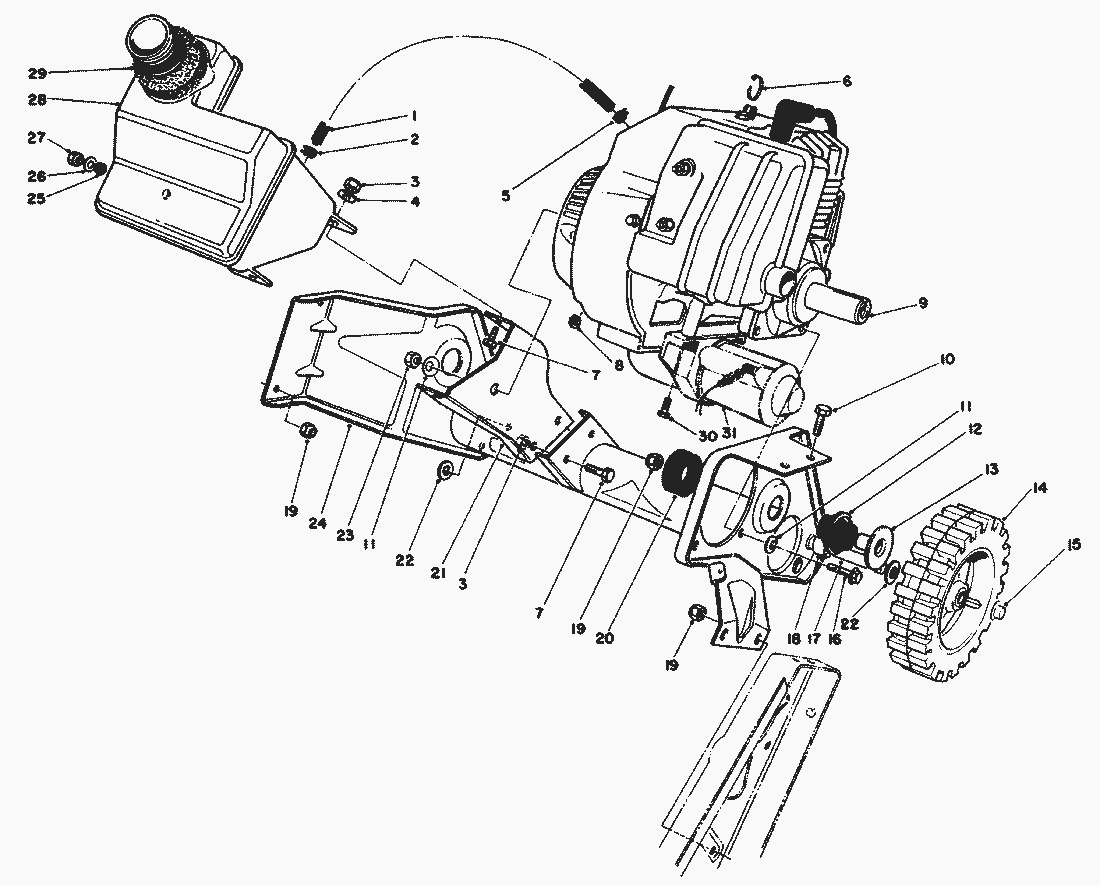

Engine & Main Frame Assy.
Spare Parts Lists for Toro Roth / TORO Engine & Main Frame Assy.
pos.
decription
spare part number
12-4669
pos.
decription
spare part number
1
Fuel Line
49-2480
2
Clamp
2412-86
3
MUTTER
3296-42
4
Washer
3256-22
5
Clamp-Fuel Line
2412-80
6
Cable Tie
250-4
7
Capscrew
321-4
8
Spacer
55-9620
9
Engine Assembly
62-6721
10
Capscrew
322-3
11
Washer-Belleville
3290-456
12
Mount-Rebound
55-9460
13
Tube-Spacer
55-9470
14
Wheel Assembly
63-3660
15
Push-On Speed Nut
3290-320
16
SCHRAUBE
81-0570
17
Shaft-Axle
60-9300
18
Spacer-Wheel
55-9630
19
MUTTER
3296-29
20
Mount-Load
55-9450
21
Support-Recoil
55-9070
22
Flat Washer
3256-24
23
Nut-Hex
81-0300
24
Frame Assembly
63-3650
25
Rubber Grommet
237-89
26
Washer
3256-23
27
Nut-Lock
32152-8
29
Seal-Tank
55-9310
30
Screw, M8
56-6380
31
