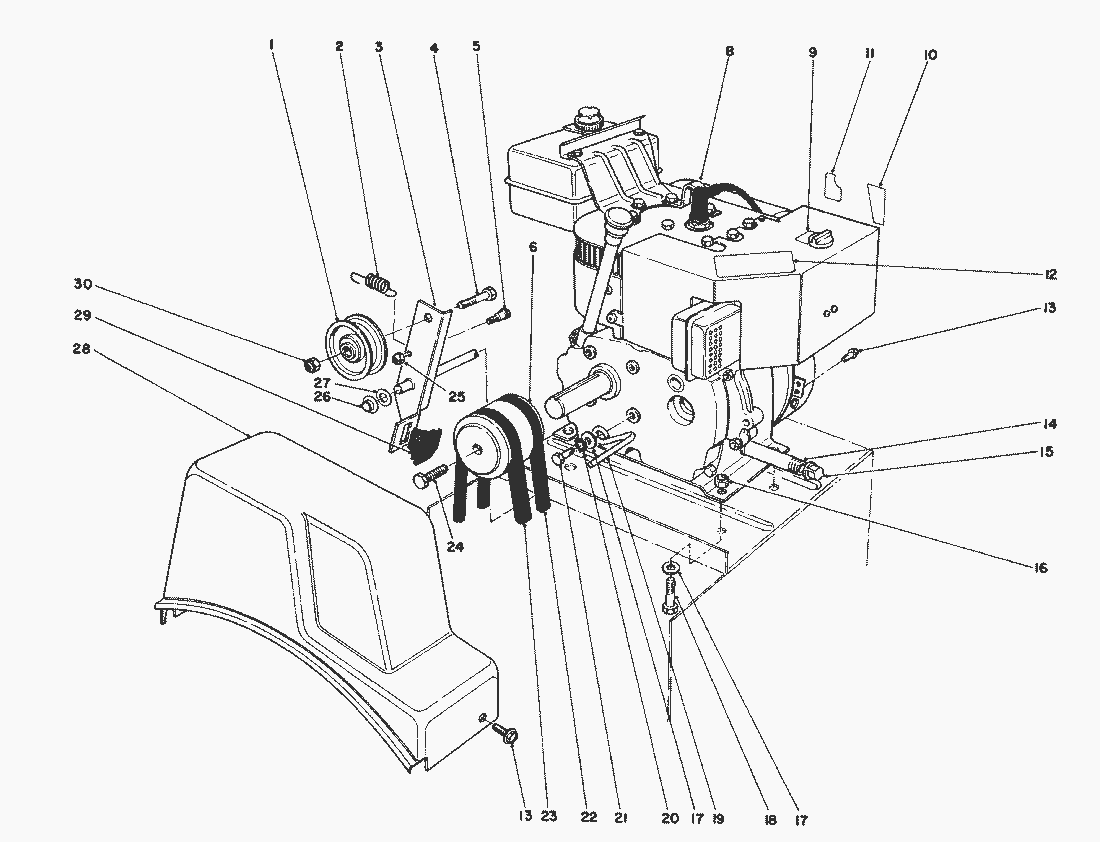

Spare Parts Lists for Toro Roth / TORO Engine Assy.

pos.	decription	spare part number
1	Pulley Idler	3-4244
2	Spring-Auger Disengage	53-7570
3	Auger Clutch (Incl. ref.	14-7959
4	Capscrew	323-29
5	Bolt-Shoulder	42-3560
6	Engine Pulley	74-1370
8
9	Decal-Choke (Model No. 38510)	63-2420
	Decal-Choke (Model No. 38513)	63-2430
10	Decal-Throttle	63-3190
11	Decal-Primer	62-5760
12	Decal-Hot Surface (Model No. 38510 Only)	66-6840
	Decal-Hot Surface (Model No. 38505)	63-2310
13	Screw Thread Forming	32144-4
14	Pipe Nipple	289-9
15	Pipe Cap	288-2
16	MUTTER	3296-29
17	Washer	3256-23
18	Capscrew	322-7
19	Belt Retainer	37-8990
20	Lockwasher	3255-8
21	Capscrew	3210-3
22	V-Belt-Traction	37-9090
23	V-Belt-Auger	26-9672
24	Screw-Special	43-7290
25	STOPMUTTER	3296-56
26	Push-On Speed Nut	3290-320
27	Flat Washer	3256-24
28	Belt Cover	37-6900
29	Pad-Brake	66-8060
30	Nut-Lock	3296-59
