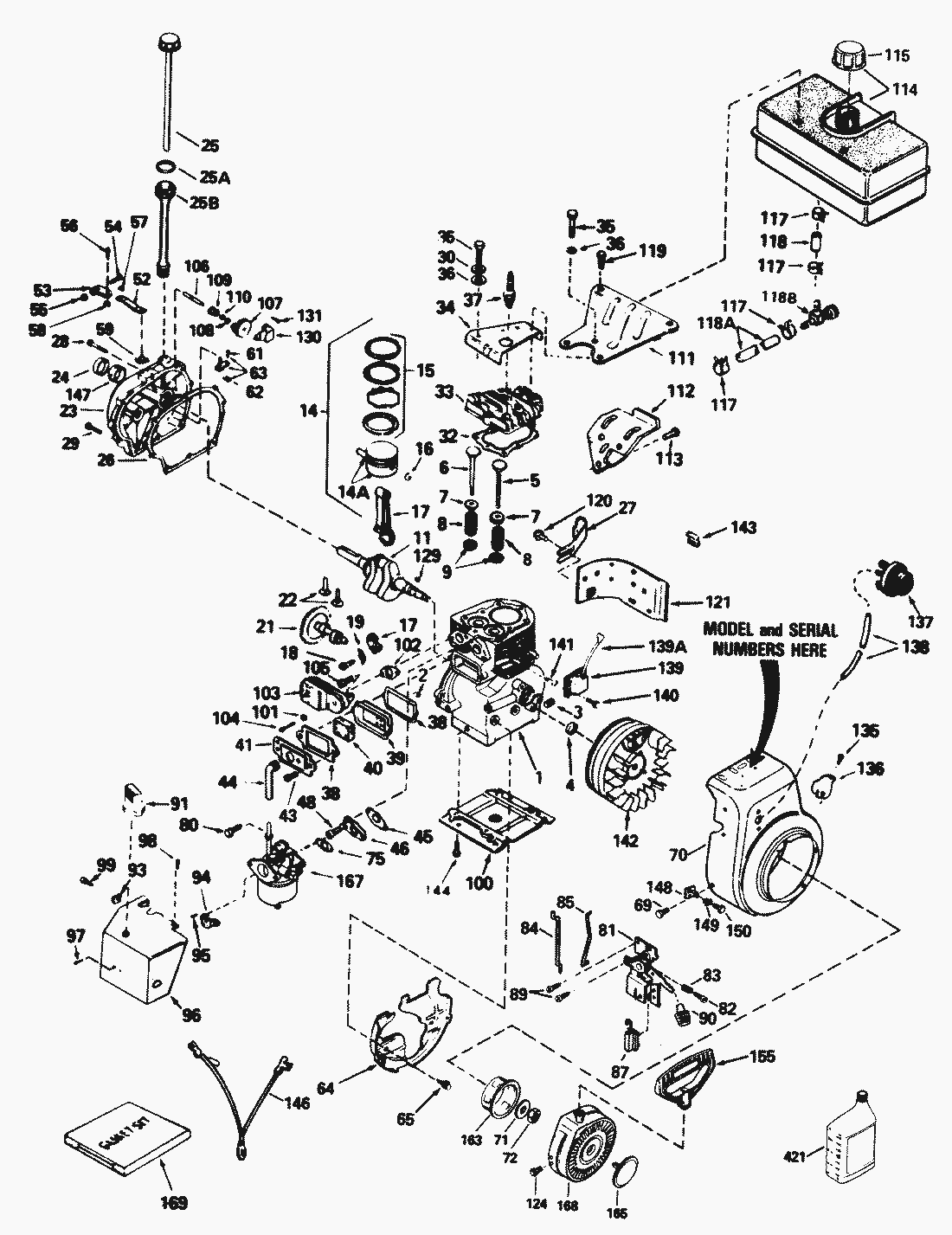

| pos. | decription | spare part number | |
| 2 | Pin, Dowel | 27652 |
| 3 | Plug, Sq. Hd. Pipe, 1/4-18 (Oil Drain) | 27642 |
| 4 | Seal, Oil | 32630 |
| 5 | Valve-Intake (Std.)(Incl. Ref. | 32783 |
| Valve-Intake (.03 OS.)(Incl. Ref. #9) * Not Illustrated tIncluded In Gasket Set Ref. #33235. | 32784 |
| 7 | Cap, Upper Valve Spring (Exhaust) | 27882 |
| 8 | Spring, Valve | 27881 |
| 9 | Cap, Lower Valve Spring | 32581 |
| 11 | Crankshaft Assembly | 35272 |
| 14 | Piston-Pin & Ring Assy. Standard (Incl. ref. | 34517 |
| Piston-Pin & Ring Assy. (.010 oversize) (Incl. ref. | 34518 |
| 15 | Ring Set-Piston Std. | 32595 |
| Ring Set-Piston .010 oversize | 32596 |
| Ring Set-Piston .020 oversize | 32597 |
| 16 | Ring, Piston Pin Retaining | 27888 |
| 18 | Screw-Connecting Rod | 650662C |
| 19 | Dipper, Oil | 34242 |
| 21 | Camshaft | 32115 |
| 22 | Lifter, Valve | 34034 |
| 24 | Seal-Oil | 28427 |
| 25 | Dipstick, Oil (Incl. Ref. | 35555 |
| 25 | O Ring | 35499 |
| 25 | Tube Assy.-Oil Fill | 35554 |
| 26 | Gasket-Cylinder Cover | *30684 |
| 27 | Clip, Fill Tube | 35540 |
| 28 | Screw, Hex Hd. | 650488 |
| 29 | Screw, Hex Hd. | 650493 |
| 30 | Washer-Belleville | 650690 |
| 32 | Gasket-Cylinder Head | *32631A |
| 34 | Cover-Cylinder Head | 30939A |
| 35 | &rew-Hex. Flange Hd. | 650697A |
| 36 | Washer, Flat | 650691 |
| 37 | Spark Plug, Resistor (Champion RJ-19LM) | 35395 |
| 38 | Gasket, Valve Spring Cover | *27896A |
| 39 | Body, Breather | 28423 |
| 40 | Element, Breather | 28424 |
| 41 | Cover, Valve Spring | 28425 |
| 43 | Screw, Fil. Hd. | 650128 |
| 44 | Tube-Breather | 35350 |
| 45 | Gasket-Intake | *27915A |
| 48 | Screw-Fil. Hd. | 30196 |
| 52 | Lever, Governor | 33454 |
| 53 | Clamp, Governor Lever | 29916 |
| 54 | Screw, Hex Washer Hd. | 29826 |
| 55 | Locknut, Hex | 29216 |
| 56 | Screw, Hex Washer Hd. | 650548 |
| 57 | Lockwasher, E.T. | 29918 |
| 58 | Locknut, Hex | 30322 |
| 59 | Ring, Retaining | 29642 |
| 61 | Screw, Fil. Hd. | 650494 |
| 62 | Yoke, Governor | 30700 |
| 64 | Baffle, Blower Housing | 35326 |
| 65 | Screw, Hex Washer Hd. | 650561 |
| 69 | Screw, Phil. Hex Hd. | 29747B |
| 70 | Blower Housing | 36254 |
| 71 | Washer, Belleville | 650815 |
| 72 | Nut-Flywheel | 650871 |
| 75 | Gasket-Carburetor | *31688A |
| 80 | Screw-Hex. Hd. | 650517 |
| 81 | Remote Speed Control Assy. (Incl. Ref. | 34677 |
| 82 | Screw, Fil. Hd. | 650549 |
| 83 | Spring, Compression | 31342 |
| 84 | Link-Governor | 34661 |
| 85 | Link-Throttle | 34662 |
| 87 | Terminal Assy. | 610973 |
| 89 | Screw, Hex Washer Hd. Thread Cutting | 650821 |
| 90 | Knob-Control | 35440 |
| 91 | Knob-Control | 35439 |
| 93 | Nut-U Type | 650764 |
| 94 | Bracket, Choke | 32398 |
| 95 | Screw, Fil. Hd. | 28820 |
| 96 | Cover-Carburetor | 35060 |
| 97 | Screw, Pan Hd. | 650257 |
| 98 | Screw, Hex Washer Hd., Self drilling | 650765 |
| 99 | Screw, Pan Hd. Taptite | 650760 |
| 100 | Base-Engine Mount | 29538 |
| 101 | Washer-Flat | 26073 |
| 102 | | |
| 103 | Muffler | 32401 |
| 104 | Screw, Hex Flange Hd. | 650694A |
