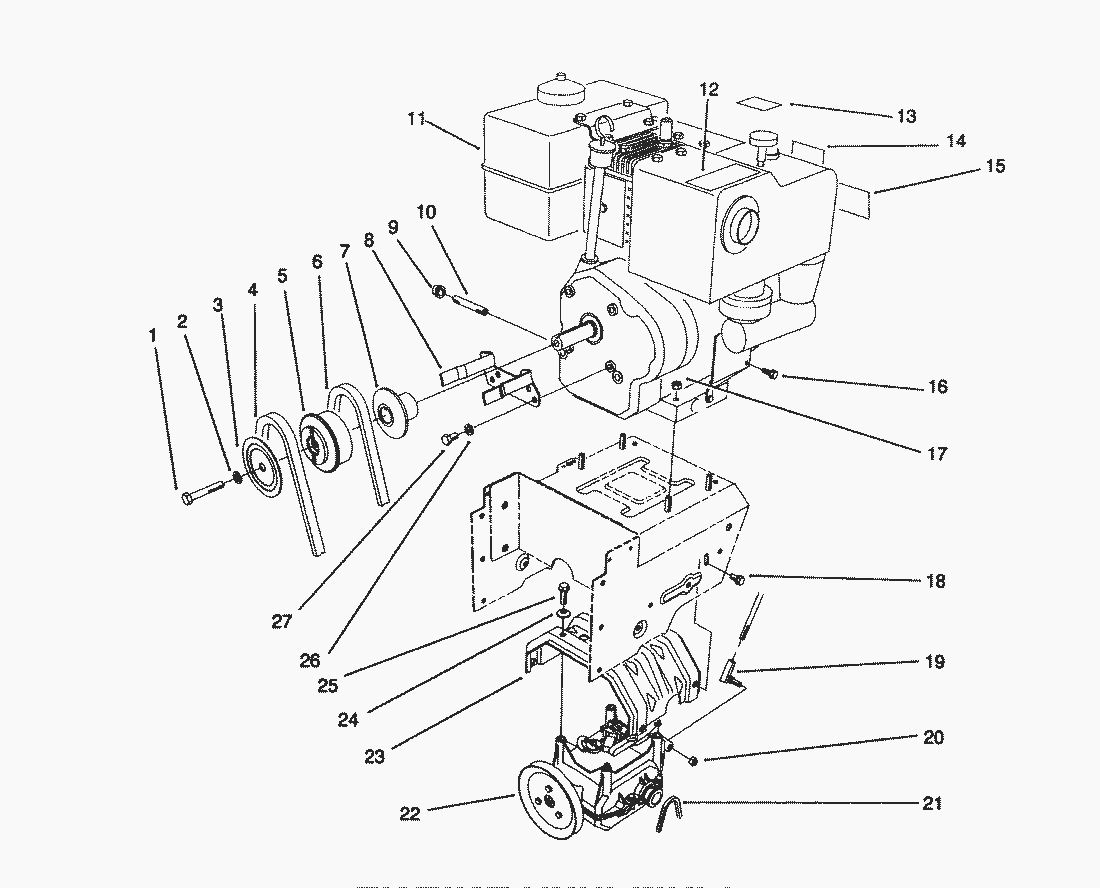

Spare Parts Lists for Toro Roth / TORO Engine Assy.

pos.	decription	spare part number
1	Screw-Cap Hex Hd.	3212-8
2	Washer-Lock	3253-6
3	Sheave Half-Impeller	62-0940
4	Belt-Impeller	63-2964
5	Hub-Sheave	62-0930
6	Belt-Traction	63-2953
7	Sheave Half-Traction	62-0920
8	Guide-Belt	68-7510
9	Cap-Pipe	288-10
10	Nipple-Pipe	289-45
11

12	Decal-Hot Surface (Model No. 38510 Only)	66-6840
	Decal-Hot Surface (Model No. 38505)	63-2310
13	Decal-Throttle	63-2340
14	Decal-Primer	63-2320
15	Decal-Choke (Model No. 38580)	63-2360
	Decal-Choke (Model No. 38565)	63-2460
16	Screw	2210-250
17	Flange Nut	32128-20
18	Screw-Hex. Washer Hd.	3234-7
19	Joint-Ball	63-2640
20	Locknut	3296-39
21	Chain-Drive	63-2930
22	Transmission Assembly	66-8030
23	Frame-Transmission	63-2990
24	Washer-Belleville	3290-461
25	Screw-Cap Hex Hd.	11-0590
26	Lockwasher	3253-4
27	Screw-Cap Hex Hd.	3210-1
	Loose Parts Kit	12-8949
