> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 PowerShift > 630/38580 > 2000001 > Snow Cab Assy. No. 68-9500 (Optional)

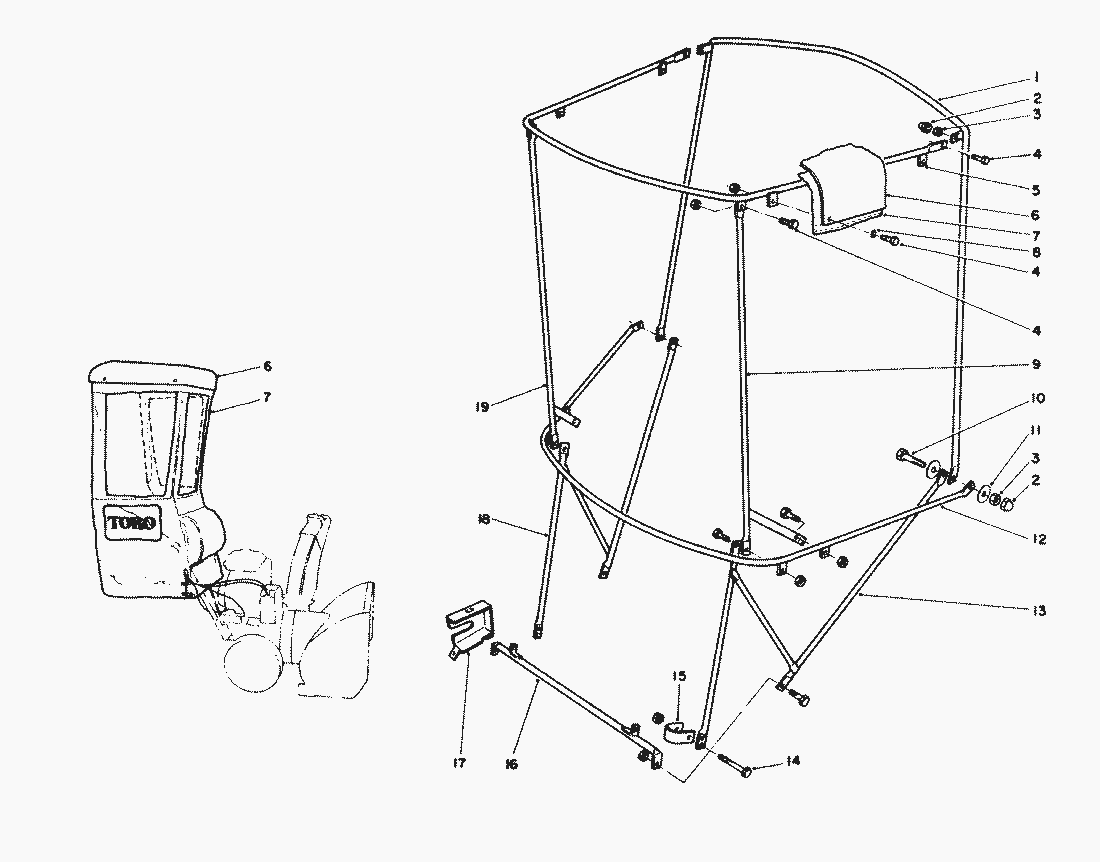

Spare Parts Lists for Toro Roth / TORO Snow Cab Assy. No. 68-9500 (Optional)




spare parts list


pos.decriptionspare part number
1Bow-Vertical70-2260
2Cover-Nut70-2240
3Locknut32153-4
4Capscrew321-4
5Frame-Top70-2250
6
7
8Washer-Plain3256-1
9Post-Corner L.H.70-2220
10Screw-Hex Hd.321-6
11Washer-Fender3256-58
12Bow-Horizontal70-2270
13Bracket-Attaching L.H.66-6230
14Capscrew321-11
15Clamp-U66-6240
16Bracket-Base Attaching66-6210
17Cover-Lever63-3330
18Bracket-Attaching R.H.66-6220
19Post-Corner R.H.70-2230
Weight Kit (Optional)74-1190
