Roth / TORO
>
Hand operated
>
Snowthrower
>
Two stage
>
724
>
637/38073
>
9900001
>

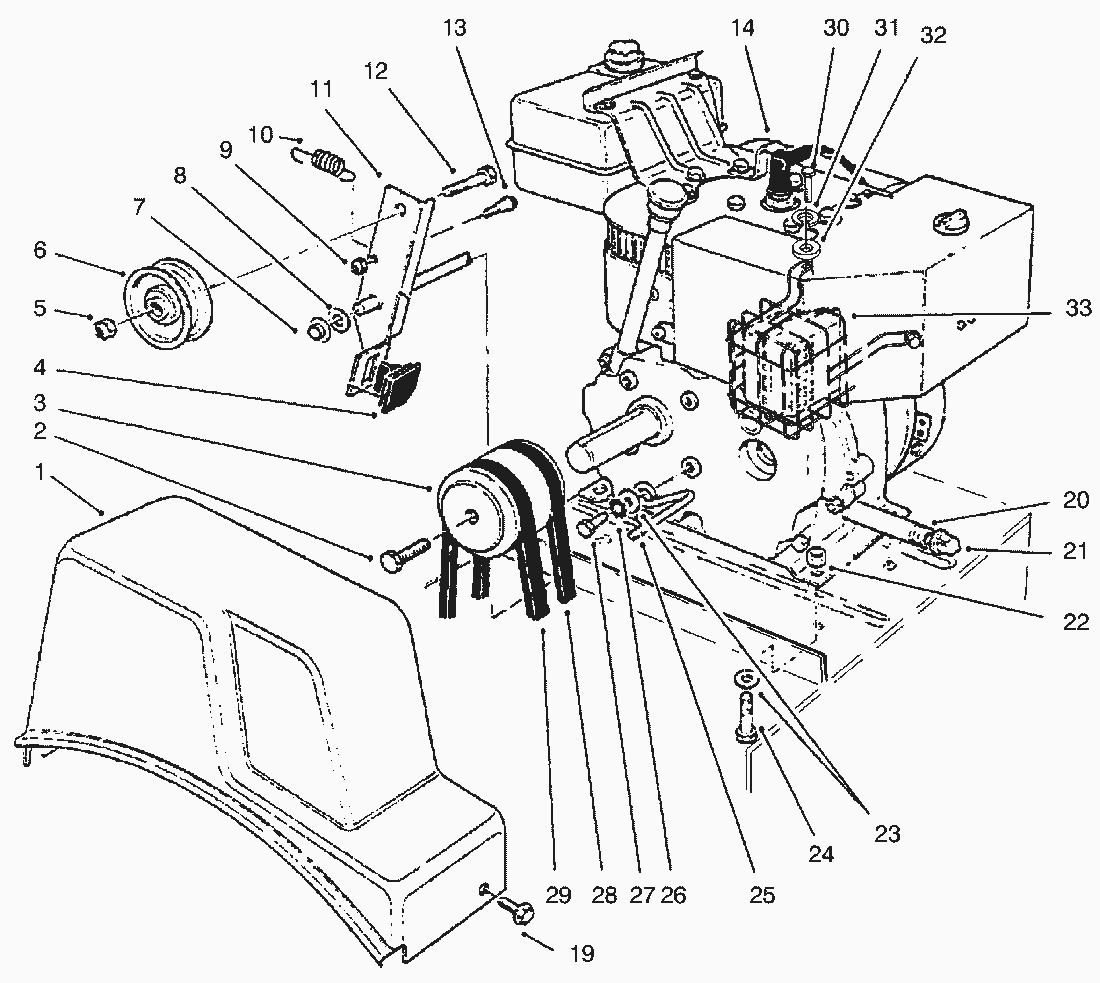

Engine Assy. (Cont.)
Spare Parts Lists for Toro Roth / TORO Engine Assy. (Cont.)
pos.
decription
spare part number
27
Capscrew
3210-3
28
V-Belt-Traction
37-9090
29
V-Belt-Auger
26-9672
30
Screw-Self Tapping
42-671
31
Washer-Lock
3253-17
32
Washer
3256-49
33
Guard-Muffler
127-19
