Traction Assy.

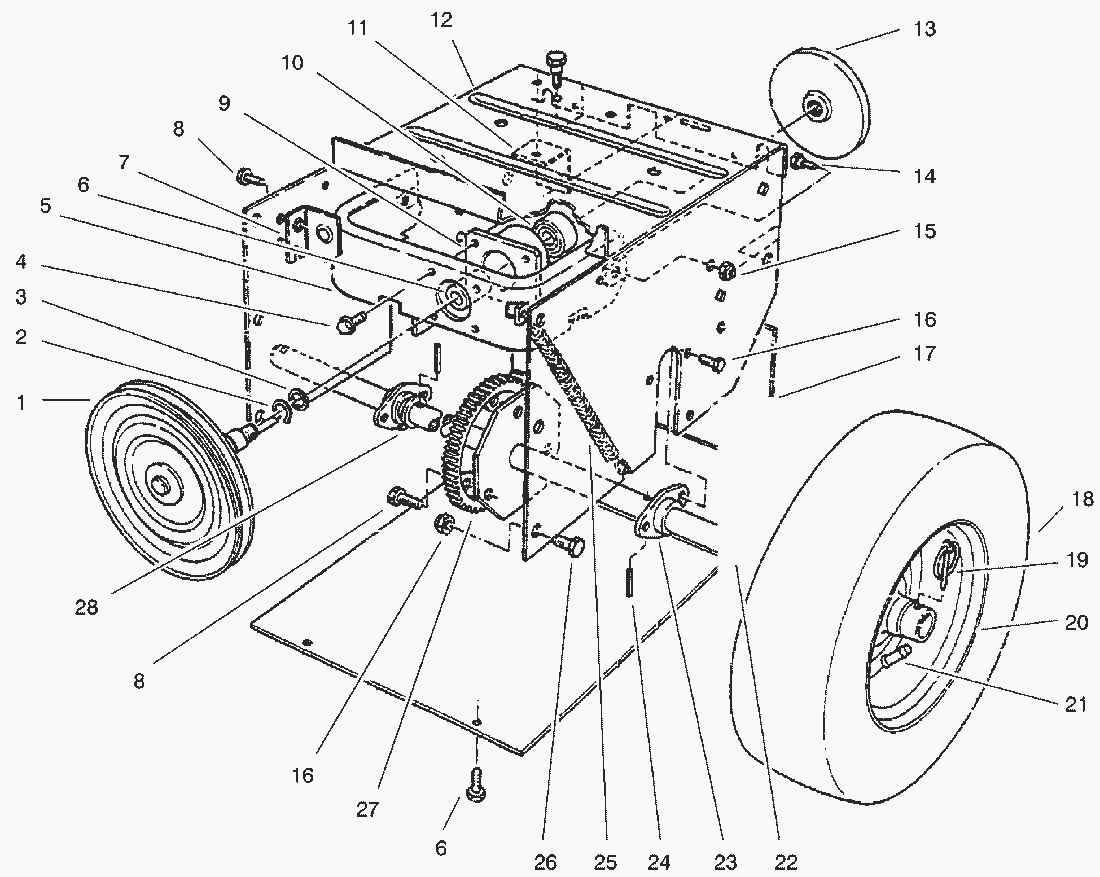

Spare Parts Lists for Toro Roth / TORO Traction Assy.
pos.
decription
spare part number
1
Pulley & Shaft
88-0850
2
Ring-Snap
32151-103
3
Thrust Washer
252-80
4
Hex Washer Hd. Thread Forming Screw
12-3270
5
Frame-Friction Plate
88-0550-03
6
Bushing
256-322
7
Mount-Clutch Rod Front
66-6790
8
Self Tapping Screw
32144-70
9
Hub-Frame
88-0560
10
Ball Bearing
38-7820
11
Mount-Clutch Rod Rear
37-9070
12
Frame-Traction
37-8900-01
13
Friction Plate
38-0800
14
Shoulder Bolt
37-8770
15
MUTTER
3296-29
16
Screw Thread Forming
32144-4
17
Cover-Bottom
37-6830-01
18
Tire
231-120
19
Klip Pin
3290-243
20
Rim
241-131
21
Tube
232-46
22
Shaft-Axle
74-1350
23
Axle Bearing
37-6850
24
Roll Pin
32121-31
25
Spring-Friction Plate Frame
37-8870
26
Hex Hd. Capscrew
322-2
27
Axle Gear
37-6520
28
Thrust Washer
3-8664
