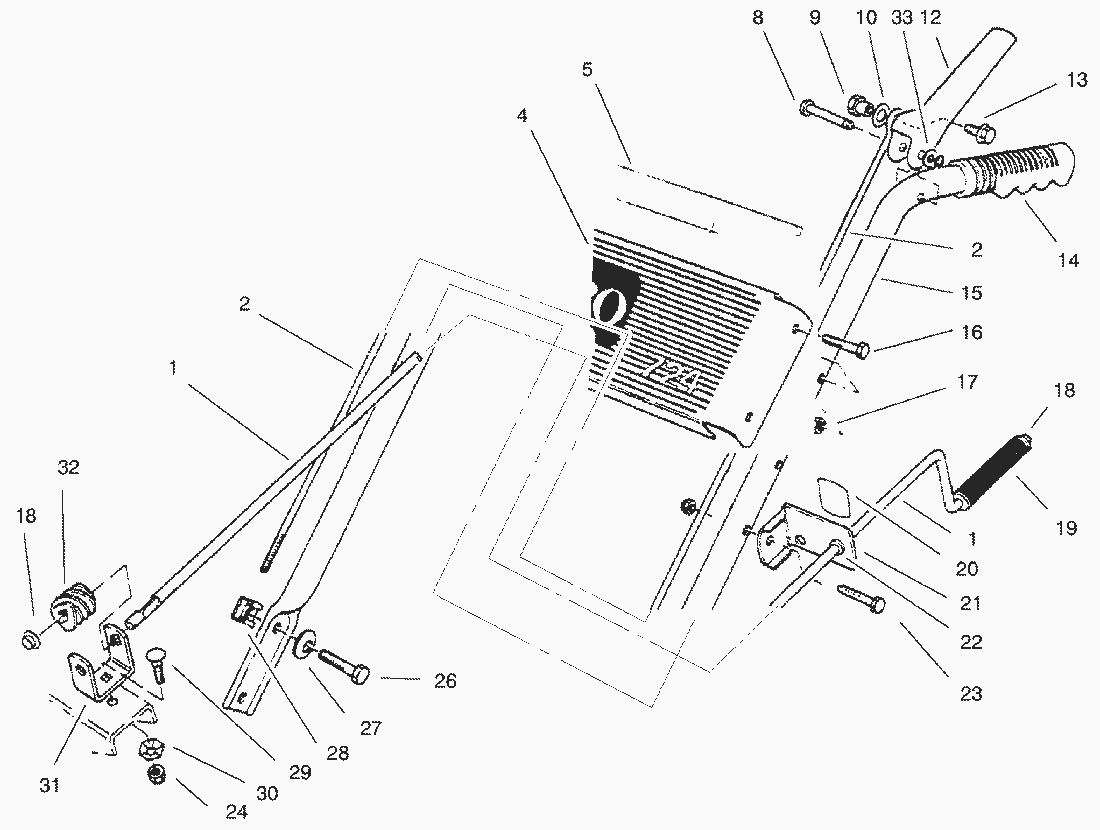

Spare Parts Lists for Toro Roth / TORO Handle Assy. Left Side

pos.	decription	spare part number
1	Chute Control Rod	40-8270
2	Link-Upper	52-5590
4
5	Decal-Escutcheon Back (Model 38602 Only)	99-3214
	Decal-Escutcheon Back (Model 38063 Only)	99-3215
8	Pin-Control Lever	52-5600
9	Post-Linkage Mounting	47-4990
10	Flat Washer	3256-24
12	Handle-Control	63-3640
13	Hex Flange Capscrew	3234-13
14	Grip-Handle	74-1360
15	Handle-Left	52-5571-03
16	Hex. Hd. Capscrew	321-9
17	MUTTER	3296-42
18	Push-On Speed Nut	3290-320
19	Chute Control Grip	40-8230
20	Decal-Chute Direction	63-3510
21	Bracket-Chute Control (Incl. Ref.	12-7739
22	Nyliner	256-249
23	Capscrew	322-7
24	MUTTER	3296-29
26	Hex Hd. Capscrew	322-2
27	Washer-Belleville	3290-456
28	Retained Nut	3290-196
29	Bolt-Carriage	3230-22
30	Pyramidal Washer	3290-238
31	Bracket-Chute Worm	40-8280
32	Worm Gear	40-8250
33	Ring-Clip	32151-73
