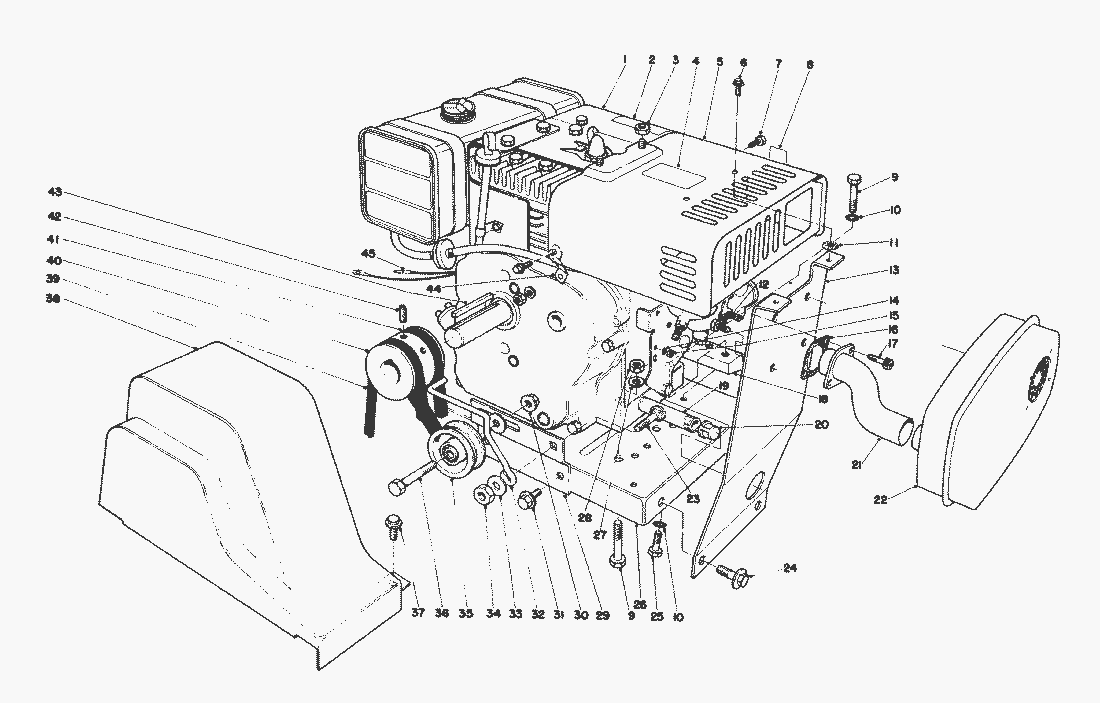

Spare Parts Lists for Toro Roth / TORO Engine Assy. (Model 38160)

pos.	decription	spare part number
1	Engine	221-640
2	Decal Hazards Caution	29-6380
3	Nut	32153-3
4	Decal Hot Surface Warning	29-6390
5	Heater Box	39-1780
6	Hex Washer Hd. Thread Forming Screw	12-3270
7	Screw	32144-12
8	Choke Decal	29-6400
9	Capscrew	322-9
10	Int.Tooth Lockwasher	3254-2
11	Washer	25-1600
12	Hex Sems Screw	32140-70
13	Muffler Mounting Bracket	39-1740
14	Internal Tooth Lockwasher	3254-10
15	Locknut	3296-1
16	Gasket	39-1810
17	Socket Screw	3274-12
18	Engine Mounting Block	22-8960
19	Pipe Nipple	289-20
20	Pipe Cap	288-4
21	Exhaust Pipe	39-1800
22	Muffler	27-6610
23	Carriage Bolt	3231-27
24	Capscrew	323-6
25	Capscrew	322-3
26	Engine Base	22-9030
27	Washer	3256-23
28	MUTTER	3296-29
29	Bracket Belt Idler	22-7960
30	Locknut	3290-357
31	Hex Thread Forming Screw	32144-15
32	Belt Guide	8-8830
33	Washer-Flat	3256-25
34	Hex Locknut	32146-2
35	Pulley Idler	244-63
36	Capscrew	323-8
37	Screw Thread Forming	32144-10
38	Belt Guard	17-6550
39	V-Belt Auger	26-9670
40	Engine Pulley	21-4100
41	V-Belt Traction	17-6540
42	Set Screw	3246-14
43	Key	5-0930
44	Brace Heater Box	39-1790
45	Wire	36-7490
	Decal Replacement Serial Plate	25-9150
