> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 > 610/38160 > 0000001 > Handle Assy. (Cont.)

Spare Parts Lists for Toro Roth / TORO Handle Assy. (Cont.)

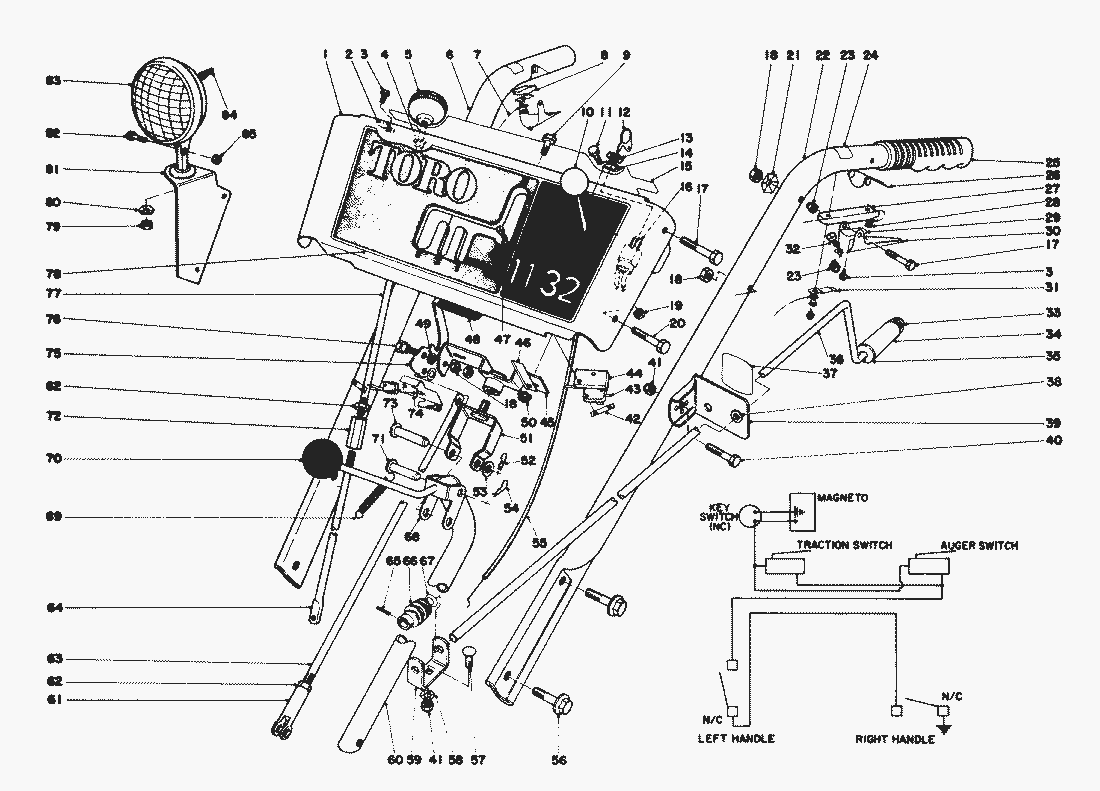

spare parts list


pos.decriptionspare part number
46Retainer Wire26-9410
47Machine Screw3290-313
48Grip Auger Handle11-8970
49Washer3256-23
50Hex Flange Locknut32128-10
51Pivot Bracket29-6490
52Hair Pin Cotter3290-322
53Washer3256-6
54Hair Pin Cotter3290-307
55Throttle Control8-7790
56Hex Flange Screw3234-1
57Carriage Bolt3230-2
58Pyramidal Washer3290-238
59Bracket Worm11-7110
60Rod Traction Shift29-6450
61Clevis39-4640
62Jam Nut3220-3
63Drag Link29-6460
64Rod-Wheel Clutch Lower22-7970
65Roll Pin32121-50
66Worm Gear Chute8-8600
67Spring Washer3290-212
68Shift Rod26-9370
69Spring Control Rod8-9900
70Knob233-21
71Clevis Pin283-15
72Coupling-Wheel Clutch Rod22-7940
73Clevis Pin283-5
74Bracket Switch22-9300
75Handle Auger Clutch17-6620
76Shoulder Bolt11-9030
77Rod Wheel Clutch29-6470
78Decal Escutcheon37-0290
Decal-Escutcheon (Model 38150)29-6310
79Nut3219-3
80Pyramidal Washer3290-224
81Lamp Mount22-9390
82Capscrew321-5
83Headlamp Assembly22-9380
84Switch Boot218-473
85Locknut32153-4
