Snow Cab Assy. (Model No. 12-8100)

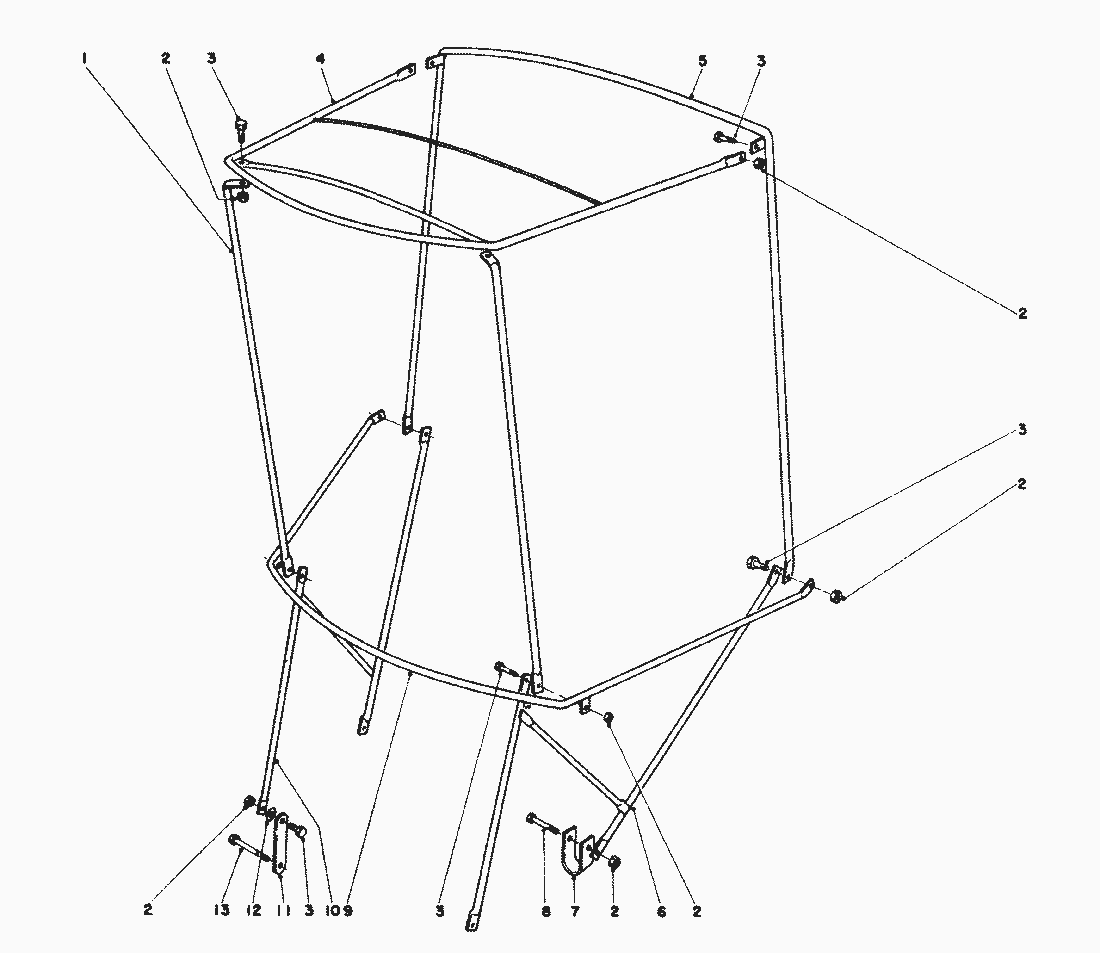

Spare Parts Lists for Toro Roth / TORO Snow Cab Assy. (Model No. 12-8100)
pos.
decription
spare part number
1
Front Corner Post
12-8040
2
Locknut
32146-17
3
Capscrew
321-4
4
Top Frame
12-8010
5
Rear Vertical Bow
12-8030
6
Attaching Bracket, L.H.
12-8070
7
U Clamp
12-8050
8
Capscrew
321-11
9
Horizontal Curved Bow
12-8020
10
Attaching Bracket, R.H.
12-8060
11
Mounting Strap
20-7260
12
Lockwasher
3255-7
13
Capscrew
321-15
Vinyl Cover
12-8080
