> Roth / TORO > Hand operated > Snowthrower > Two stage > 521 > 622/38054 > 6900001 > Handle Assy. Right Side

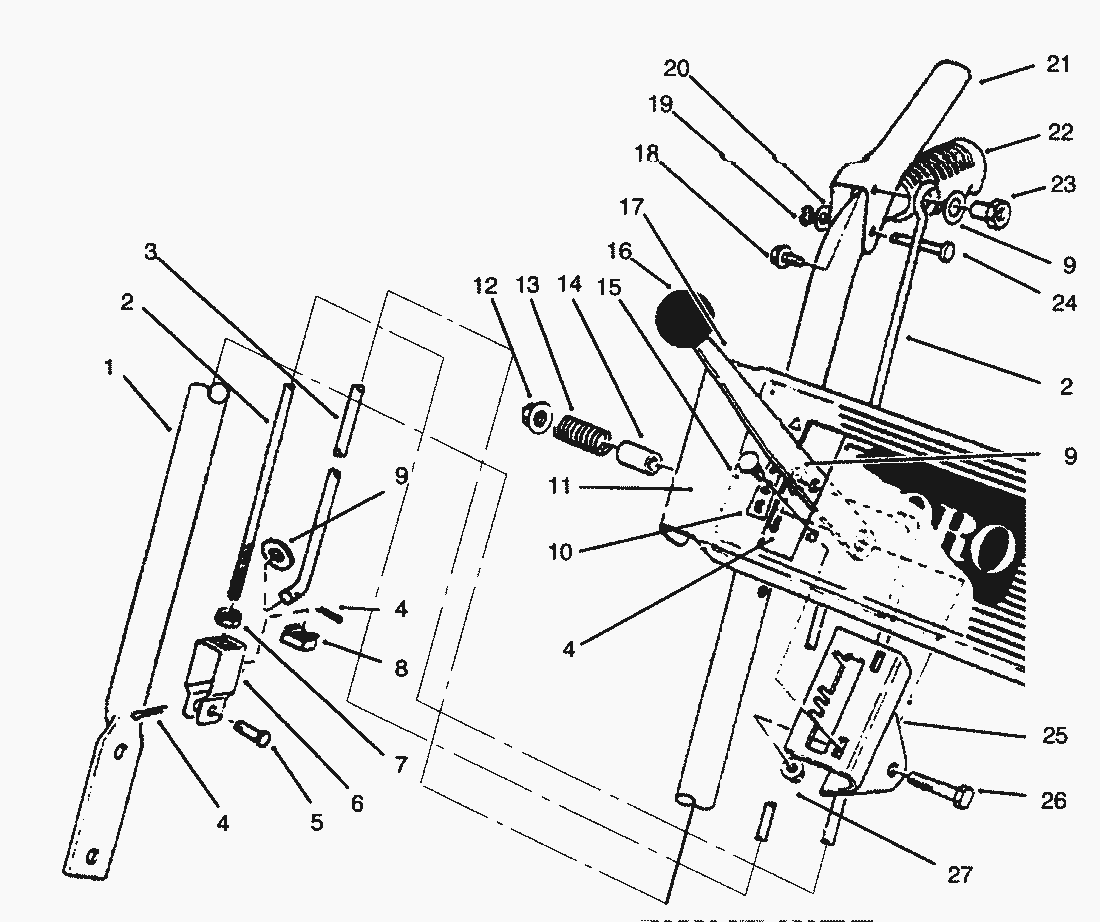

Spare Parts Lists for Toro Roth / TORO Handle Assy. Right Side




spare parts list


pos.decriptionspare part number
1Handle-Right (Model 38072)52-5561
Handle-Right52-5560
2Link-Upper52-5590
3Rod-Speed Selector39-7570
4Pin-Cotter3272-4
5Clevis Pin283-3
6Clevis39-3080
7Jam Nut3218-1
8Retained Nut32115-5
9Washer3256-23
10Panel-Escutcheon43-7360
11Decal-52166-6560
12Flange Nut32128-13
13Spring37-9150
14Spacer-Speed Selector40-8130
15Screw-Carriage3229-11
16Knob233-21
17Speed Selector37-8820
18Hex Flange Capscrew3234-13
19Ring-Clip32151-73
20Flat Washer3256-24
21Handle-Control63-3640
22Grip-Handle74-1360
23Post-Linkage Mounting47-4990
24Pin-Control Lever52-5600
25Mount-Speed Selector39-1280
26Capscrew322-7
27Flange Locknut32128-33
Tie Wrap3290-378
