> Roth / TORO > Hand operated > Snowthrower > Two stage > 521 > 622/38054 > 6900001 > Traction Assy. (Cont.)

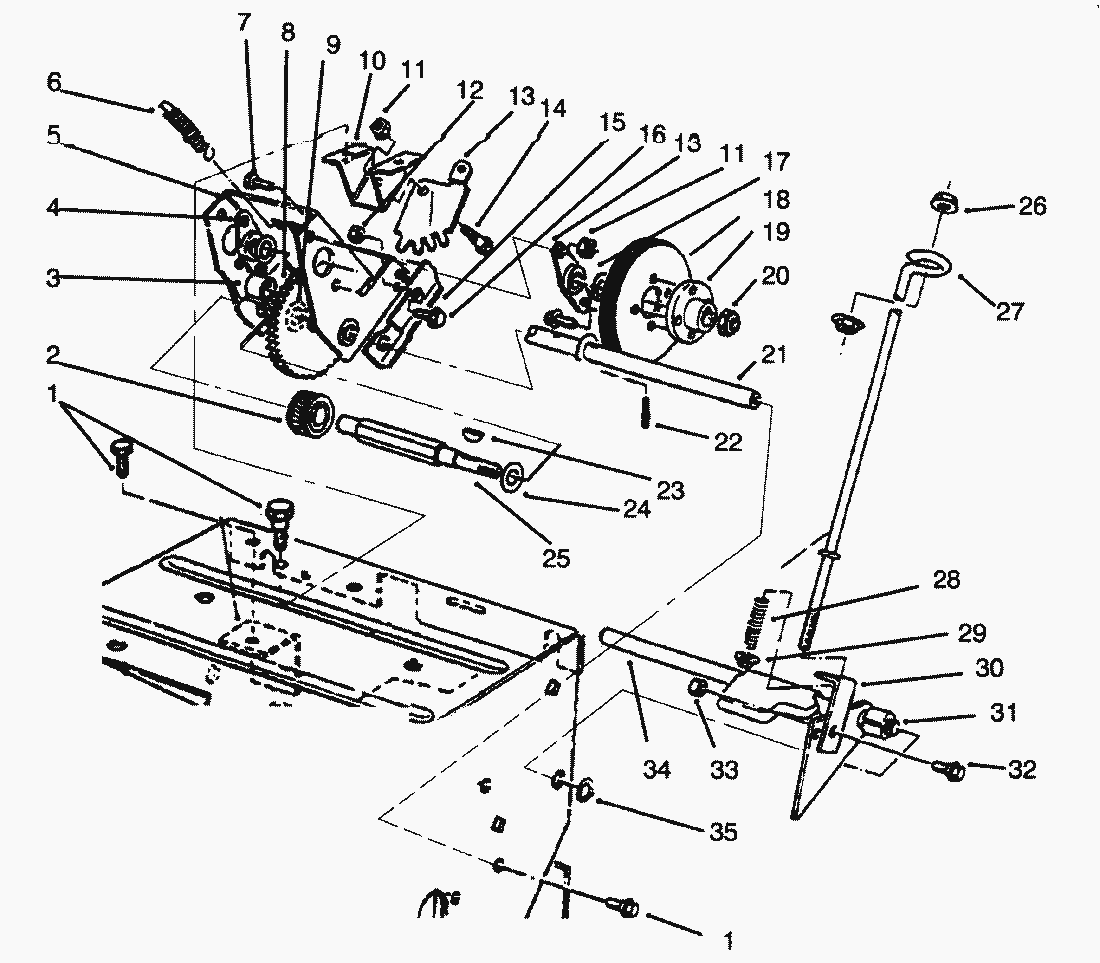

Spare Parts Lists for Toro Roth / TORO Traction Assy. (Cont.)




pos.decriptionspare part number
37-9160
spare parts list


pos.decriptionspare part number
1Self Tapping Screw32144-70
2Sliding Gear37-6500
3Bushing256-86
4Bearing-Friction Wheel20-1620
5Bracket-Sliding39-1230
6Spring-Traction Disengage37-8880
7Hex Hd. Capscrew322-2
9Thrust Washer10-9280
10Mount-Quadrant Gear37-8790
11MUTTER3296-29
12Locknut3296-16
13Quadrant Gear37-8800
14Shoulder Bolt37-8770
15Cam Receiver39-1250
16Capscrew321-4
17Thrust Washer36-4790
18Friction Wheel37-6570
19Hub-Friction Wheel Mount39-1520
20Locknut3296-48
21Shaft-Pivot37-6760
22Roll Pin32121-45
23Key3257-24
24Washer-Friction Wheel Shaft5-7570
25Hex Shaft37-6780
26Flange Locknut32128-33
27Lower Traction Rod39-3060
28Spring-Compression38-4520
29Flange Locknut32128-32
30Bracket-Traction38-4490
31Spacer40-9680
32Shoulder Screw40-8350
33MUTTER3296-42
34Traction Engagement Assy.43-7310
35Retaining Ring32151-61
