Recoil Starter No. 590707

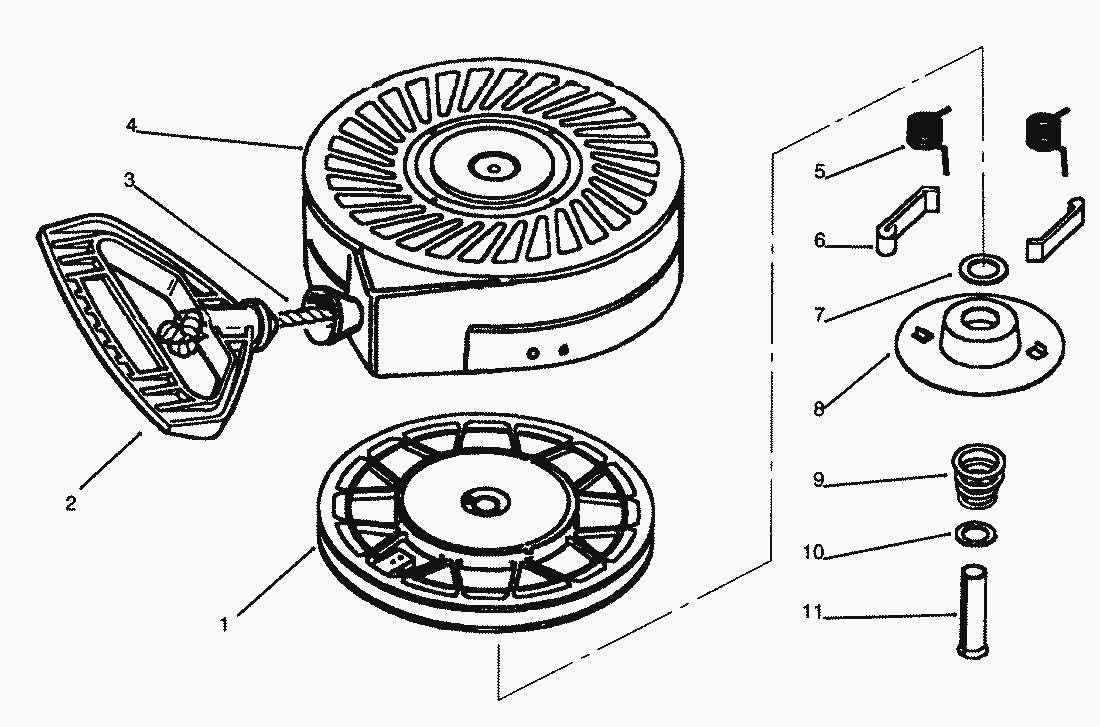

Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590707
pos.
decription
spare part number
590599A
pos.
decription
spare part number
1
Pulley & Rewind Spring Assembly
590709
2
Handle-Mitten Grip Starter
590574
3
Rope, Starter
590535
4
Housing Assembly
590708
5
Dog Spring
590699
6
Starter Dog
590698
7
Washer
590601
8
Retainer
590696
9
Brake Spring
590697
10
Washer
590600
Starter-Rewind (NOTE: This engine could have been built with a 590646 starter. Refer to the design of the air intake louvers
590707
