back to
>
Roth / TORO
>
Hand operated
>
Snowthrower
>
Two stage
>
521
>
622/38054
>
6900001
>
Recoil Starter No. 590646

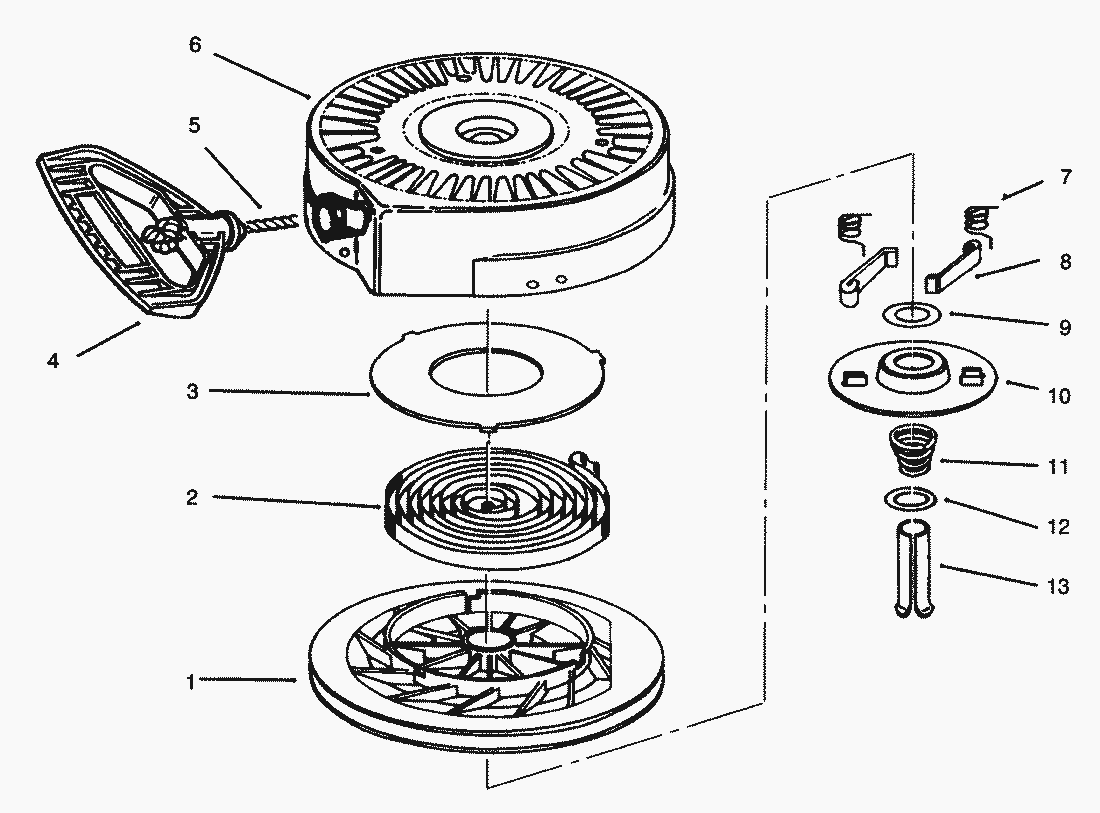

Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590646
pos.
decription
spare part number
590599A
pos.
decription
spare part number
1
Pulley
590645A
2
Spring-Rewind
590619
3
Cover-Spring
590620
4
Handle-Mitten Grip Starter
590574
5
Rope, Starter
590535
6
Housing Assy.-Starter
590647
7
Spring, Dog
590617
8
Dog-Starter
590616
9
Spring-Brake
590598
10
Washer
590601
11
Retainer
590615
12
Washer
590600
Starter-Rewind
590646
