> Roth / TORO > Ride-On Mowers > Traktor > 16-44 HXL > 393/71218 > 6900001 > Hood Assy.

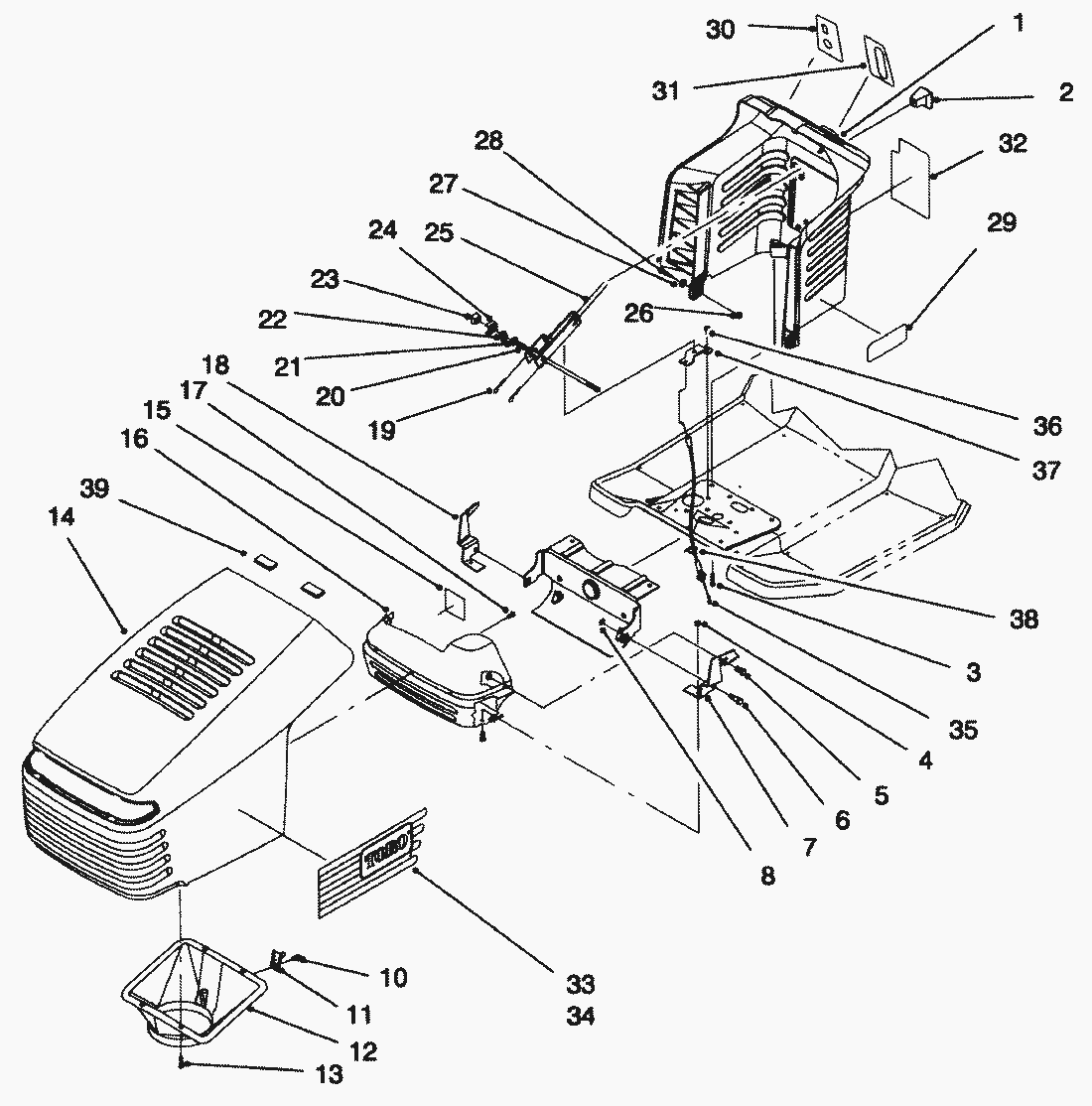

Spare Parts Lists for Toro Roth / TORO Hood Assy.




spare parts list


pos.decriptionspare part number
1Tower-Steering93-0303
2Knob-Control94-5565
3Screw-Handle46-8091
4MUTTER3296-42
5Capscrew321-2
6Bolt-Shoulder28-0540
7Bracket-Hood Pivot L.H.88-6050
8Nut-Retained3290-496
10Screw-Handle46-8091
11Pin-Latch94-1984
12Duct-Hood Air93-3891
13Screw-Self Tapping46-8090
14Hood92-8650
15Patch-Heat Tape92-5782
16Shield-Heat93-3864
17Screw-Self Tapping46-8090
18Bracket-Hood Pivot R.H.88-6040
19Hair Pin Cotter3290-307
20Rod-Tower Pivot88-4170
21Flat Washer3256-24
22Nut-Flange32128-43
23Nut-Wedge88-4140
24Clamp-Pivot Rod88-4160
25Lever-Deck Engage88-5190
26MUTTER3296-29
27Washer3256-23
28Capscrew322-3
29Decal-Tower 1544HXL94-3528
30Decal-Ignition/Lights (Model No. 71202)92-5731
31Decal-Throttle (Model No. 7120092-5730
32Decal-Deck Engage(Model No. 71200)93-6673
33Decal-Hood L.H.92-2468
34Decal-Hood R.H.92-2467
35Cable-Deck Engage94-4292
36Screw Thread Forming32144-4
37Bracket-Cable Upper93-3849
38Tie Strap614249
39Foam-Hood94-1980
