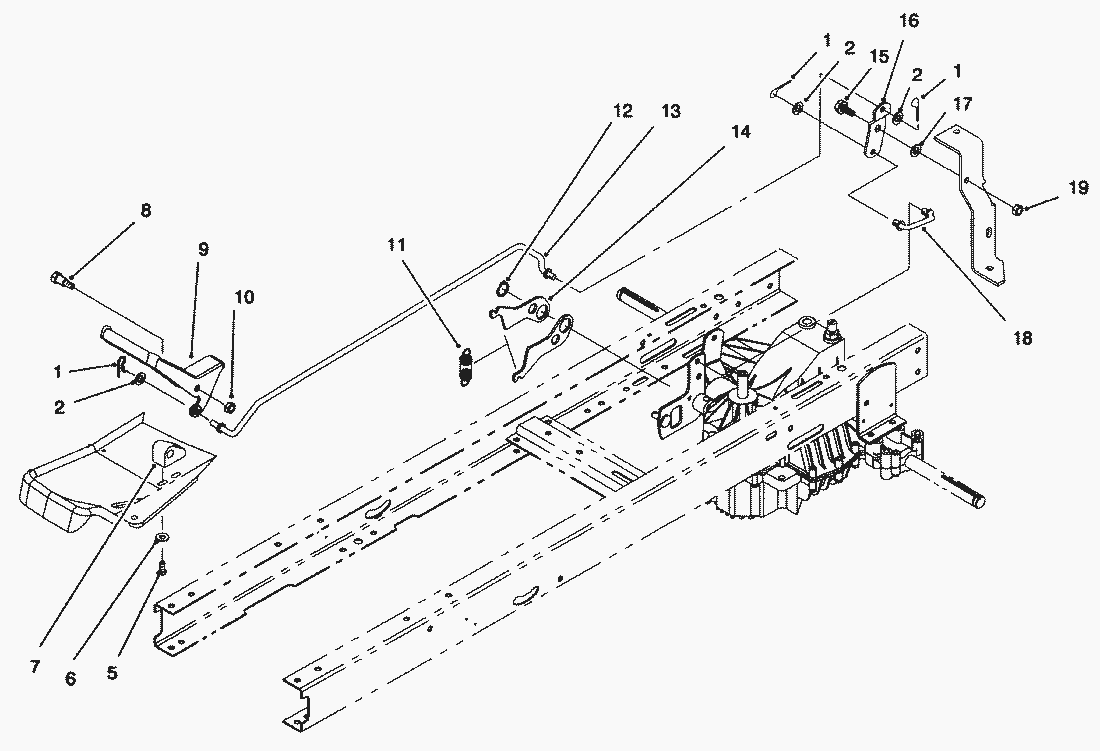

Spare Parts Lists for Toro Roth / TORO Speed Control Assy.

pos.	decription	spare part number
1	Hair Pin Cotter	3290-307
2	Washer	3256-23
5	Screw-Self Tapping	46-8090
6	Washer	3256-22
7	Block-Pivot	88-4690
8	Bolt-Shoulder	23-0310
9	Pedal-Speed Control	93-3812
10	Nut-Lock	3296-59
11	Spring-Extension	92-7305
12	Ring-External Retaining	32151-83
13	Rod-Speed Control	93-3877
14	Lever-Neutral Return	88-5610
15	Bolt-Shoulder	37-8771
16	Bellcrank	93-3875
17	Washer-Belleville	3290-456
18	Link-Speed/Direct Control	93-3874
19	Nut-Lock	3296-47
