Spare Parts Lists for Toro Roth / TORO Steering Assy.




pos.decriptionspare part number
88-3850

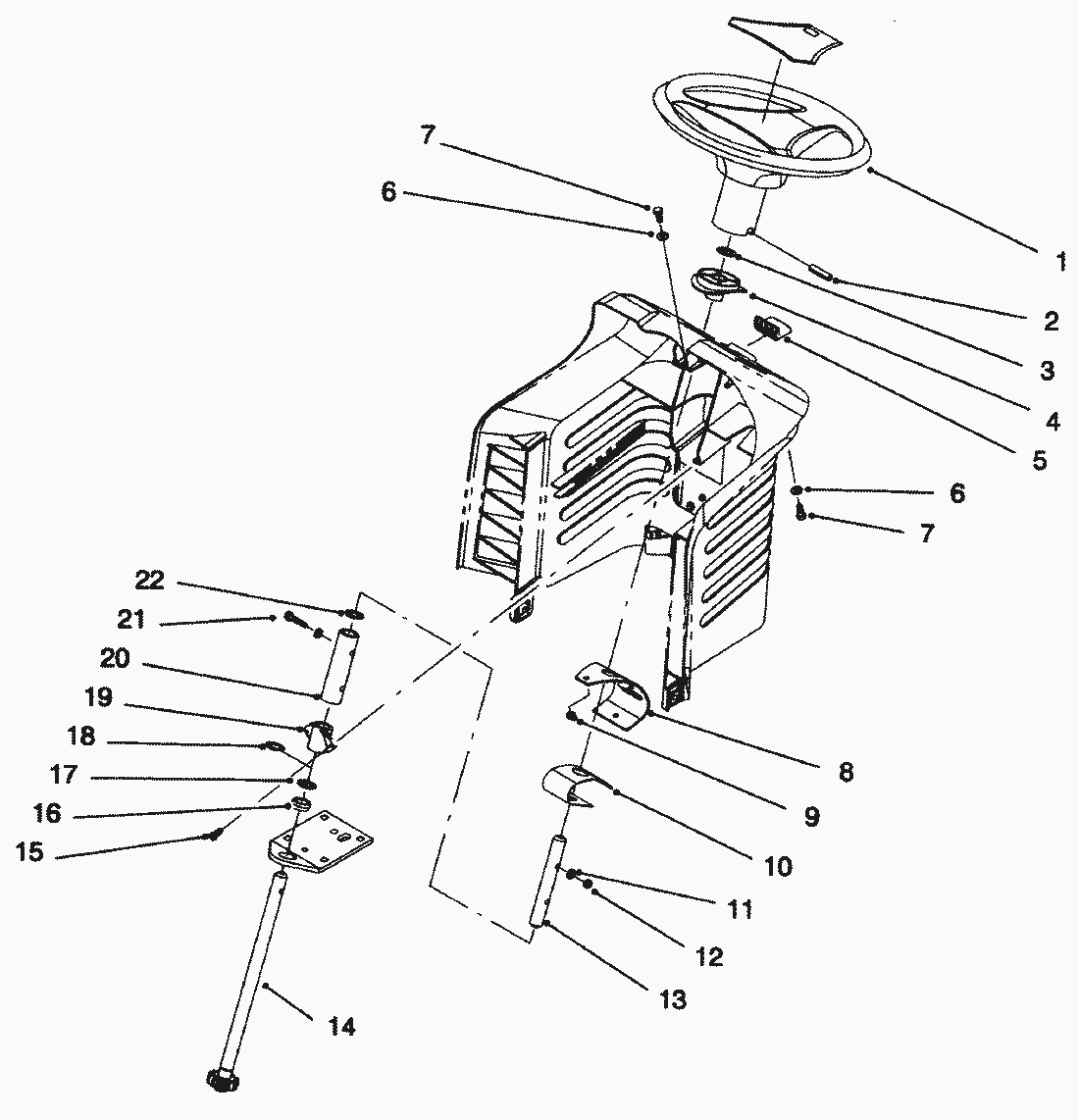

spare parts list


pos.decriptionspare part number
12Cover-Steering Wheel88-3870
2Pin-Spirol32121-111
3Ring-Retaining32151-81
4Bushing-Sliding88-4190
5Button-Release88-4180
6Washer3256-22
7Capscrew321-4
8Bracket-Backup88-5180
9MUTTER3296-42
10Spring-Leaf88-4890
11Washer3-7501
12MUTTER3296-42
13Shaft-Steering Upper88-6300
14Shaft-Steering Short88-6370
15Screw Special27-0220
16Bushing-Flange88-5150
17Washer-Thrust3-6498
18E-Ring-External32151-48
19Bushing-Stationary88-4210
20Coupling-Steering88-6090
21Hex. Hd. Capscrew321-9
22Washer-Thrust3-6498
