> Roth / TORO > Hand operated > Snowthrower > Two stage > 828 PowerShift > 629/38545 > 9000001 > 12 Volt Starter Engine Kit No. 68-7250 (Optional)

Spare Parts Lists for Toro Roth / TORO 12 Volt Starter Engine Kit No. 68-7250 (Optional)

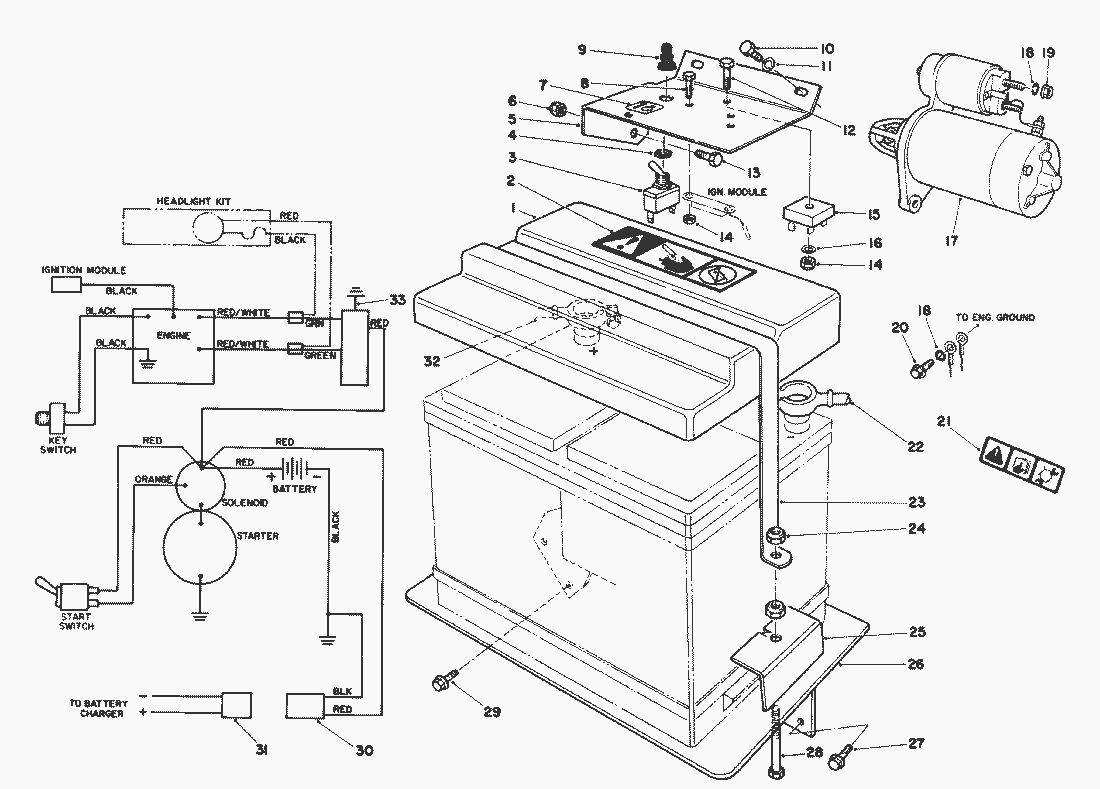

spare parts list


pos.decriptionspare part number
1Cover-Battery22-8900
2Decal-Battery Cover66-7640
3Switch (Incl.Ref.6-1659
4Nut-Hex.218-498
5Bracket-Mounting68-9360
6Nut-Flange Lock81-0130
7Decal-Starter Switch68-9490
8Screw-Hex. Hd.32105-8
9Switch Boot218-473
10Screw-Cap Hex. Hd.46-0050
11Washer-Lock48-8020
12Screw-Cap Hex. Hd.32105-12
13Screw-Cap Hex. Hd.46-0051
14Nut3296-2
15Bridge Rectifier37-7600
16Washer3256-51
1712 Volt Starter Motor Assy.68-9330
18Washer-Lock68-9420
19Nut-Flange Lock68-9400
20Screw-Hex. Flange Hd.68-9410
21Decal-Adjustment (Model No. 38505)63-3470
22Cable-Battery Negative68-9350
23Strap Battery Cover22-8850
24MUTTER3296-29
25Battery Hold Downs22-8870
26Plate-Battery Mounting66-7600
27Screw-Hex. Flange Hd.3234-17
28Screw-Cap Hex. Hd.322-11
29Screw-Hex. Flange Hd.3234-5
30Charging Wire Assembly68-9380
31Wire Assembly29-7820
32Cable-Battery Positive68-9320
33Wire-Rectifier Ground68-9450
Charger 220V (Europe)26-7140
Charger 110V (U.S. &Canada)26-3870
Wiring Assembly68-9370
Tie Wrap3290-378
