> Roth / TORO > Hand operated > Snowthrower > Two stage > 828 PowerShift > 629/38545 > 9000001 > Engine No. 68-8290 Ignition Assy. (Serial No. 9000331 & up)

Spare Parts Lists for Toro Roth / TORO Engine No. 68-8290 Ignition Assy. (Serial No. 9000331 & up)




pos.decriptionspare part number
65-1530

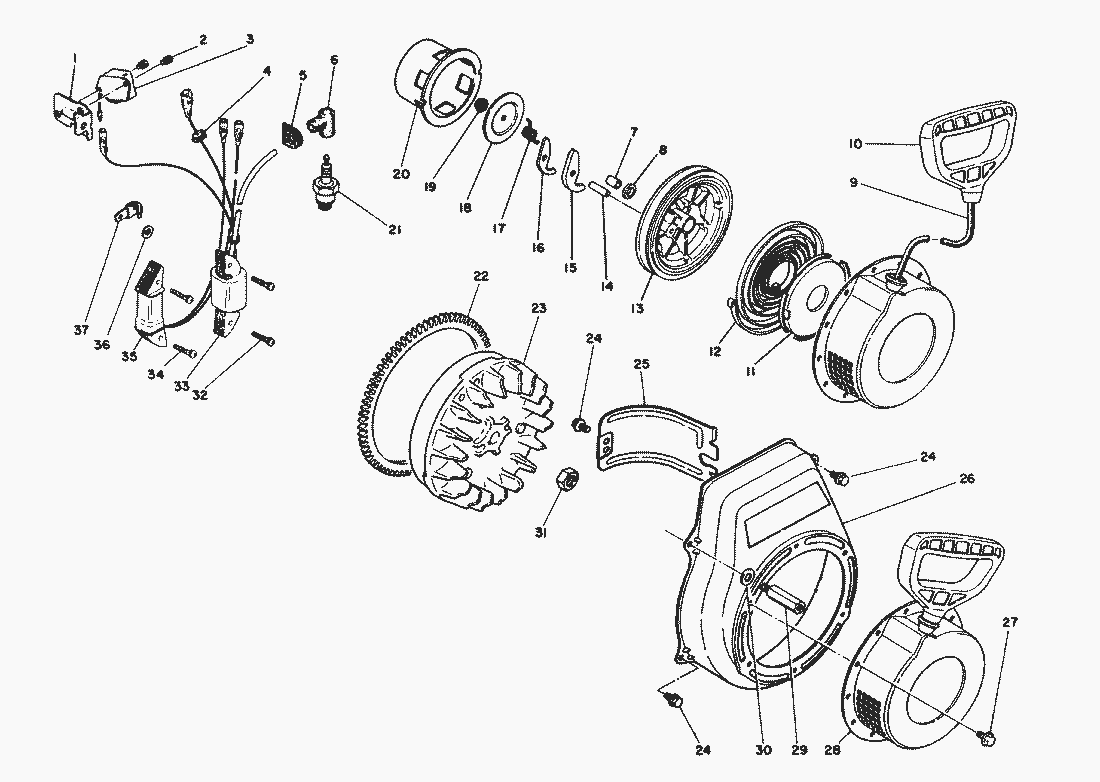

spare parts list


pos.decriptionspare part number
1Bracket-Unit65-1830
2Screw & Washer54-4610
3Unit-Ignition65-2370
4
5Grommet65-0630
6Cap-Plug65-0620
7Shaft65-1540
8Washer65-1550
9Rope-Starter65-1660
10Handle-Starter65-1670
11Case65-1650
12Spring-Spiral65-1640
13Reel65-1630
14Pin65-1620
15Ratchet65-1610
16Ratchet65-1600
17Spring-Friction65-1590
18Plate-Friction65-1580
19Nut-Flange65-1570
20Pulley-Starter65-1560
21Plug-Spark65-0640
22Gear-Ring65-2360
23Flywheel65-2180
24Bolt-Flange65-0050
25Baffle-Cylinder65-0750
26Cover-Fan71-1770
27Bolt-Flange65-0840
29Bolt-Shoulder65-1880
30Washer65-0540
31Nut65-2200
32Screw & Washer65-0710
33Coil-Ignition (Incl. Ref.65-2380
34Screw & Washer54-5760
35Coil-Lighting65-2400
36Nut-Push65-0730
37Clamp-Cable65-0740
