> Roth / TORO > Hand operated > Snowthrower > Two stage > 828 PowerShift > 629/38545 > 9000001 > Engine No. 63-3010 Fuel System & Muffler (Cont.) (Serial No. 9000101 thru 9000330)

Spare Parts Lists for Toro Roth / TORO Engine No. 63-3010 Fuel System & Muffler (Cont.) (Serial No. 9000101 thru 9000330)




pos.decriptionspare part number
65-2340

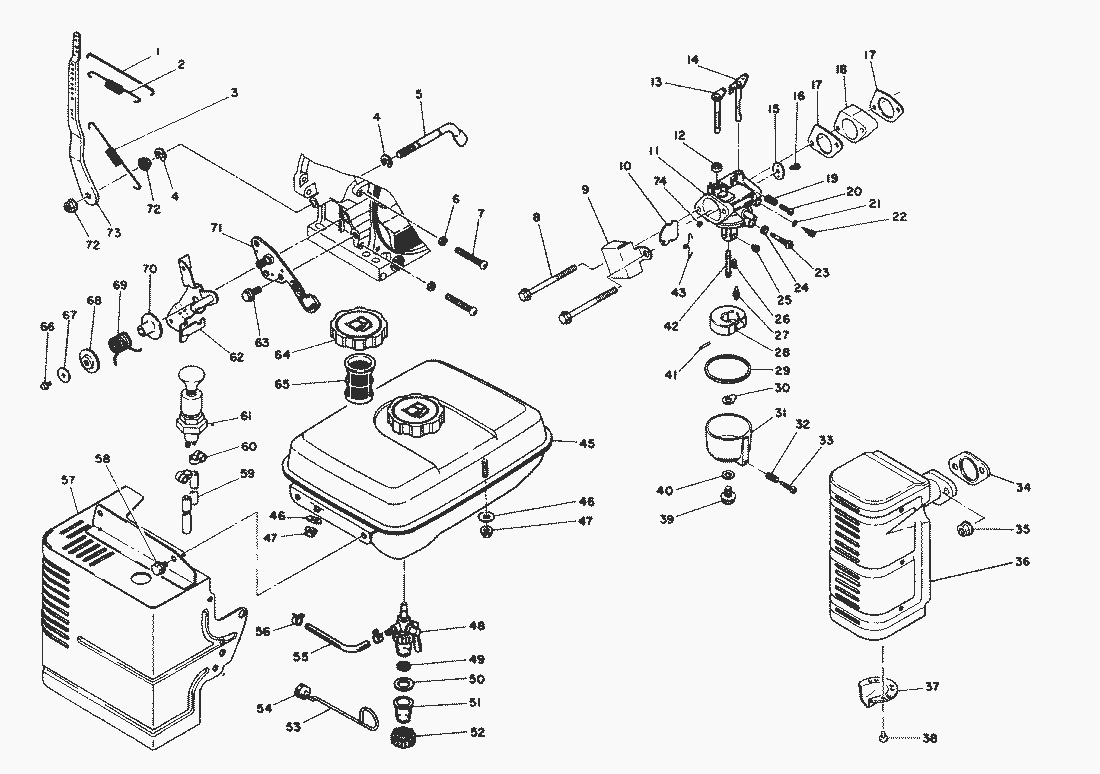

spare parts list


pos.decriptionspare part number
41Pin-Float65-1310
42Nozzle-Main65-2290
43Clip65-1260
46Gasket65-1700
47Nut-Flange Lock65-1710
48Petcock-Fuel (Incl. Ref.65-1760
49Screen65-1770
50Gasket65-1780
51Cup65-1790
52Nut65-1800
53Rod-Choke65-1420
54Grommet65-1430
55Tube-Fuel65-1730
56Clip-Fuel Tube65-1720
57Cover-Engine65-1820
58Bolt-Flange65-0050
59Hose-Fuel65-1860
60Clamp-Fuel Hose65-1850
61Fuel Pump Assembly65-1840
62Lever-Control65-0980
63Bolt-Flange65-0990
64Cap-Fuel Tank65-1680
65Filter-Fuel65-1690
66Screw & Washer65-0950
67Washer65-0940
68Shim (.2)65-1030
Shim (.3)65-1040
Shim (.4)65-1050
Shim (.5)65-1060
Shim (.8)65-1070
69Spring-Return65-0930
70Pipe-Distant65-0920
71Panel-Control65-1000
72Nut-Flange65-0890
73Lever-Governor65-0910
74Breather65-2320
