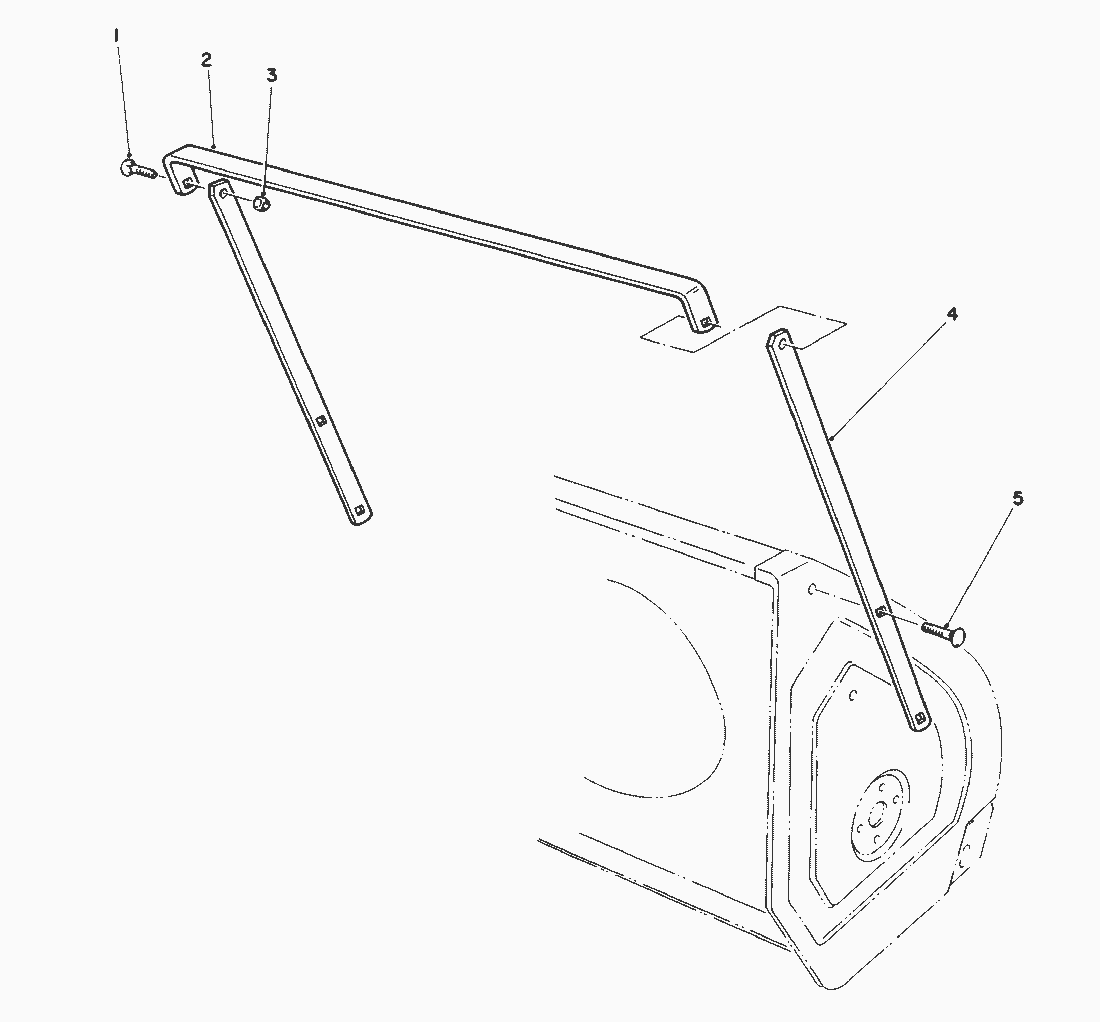

Drift Breaker Assy. (Optional)
Spare Parts Lists for Toro Roth / TORO Drift Breaker Assy. (Optional)
pos.
decription
spare part number
66-7970
pos.
decription
spare part number
1
Carriage Bolt
3230-16
3
MUTTER
3296-29
4
5
Carriage Bolt
3230-1
